Mychef COMPACT MASTER Product Manual page 13

The wiring and other safety devices used for the electrical installation must have the
appropriate section for the equipment in question.
In all cases, respect the current regulations for connecting the equipment to
the low voltage network.
Before starting the electrical installation, verify that the electrical requirements of the oven
and the electrical network supply are the same.
Never connect a phase to neutral or ground. Check that the installation
voltages correspond to those of the equipment.
The following subchapters show the types of connections possible for Mychef ovens.
5.1.1. Three-phase connection 400V 3L+N
Color
Brown
■
Black
■
■ Grey
Blue
■
■ Green yellow
Board3. Three-phase cable 400V 3L+N
5.1.2. Three-phase connection 230V 3L
mychefpro.com
Wire
L1
L2
L3
Neutral
Land

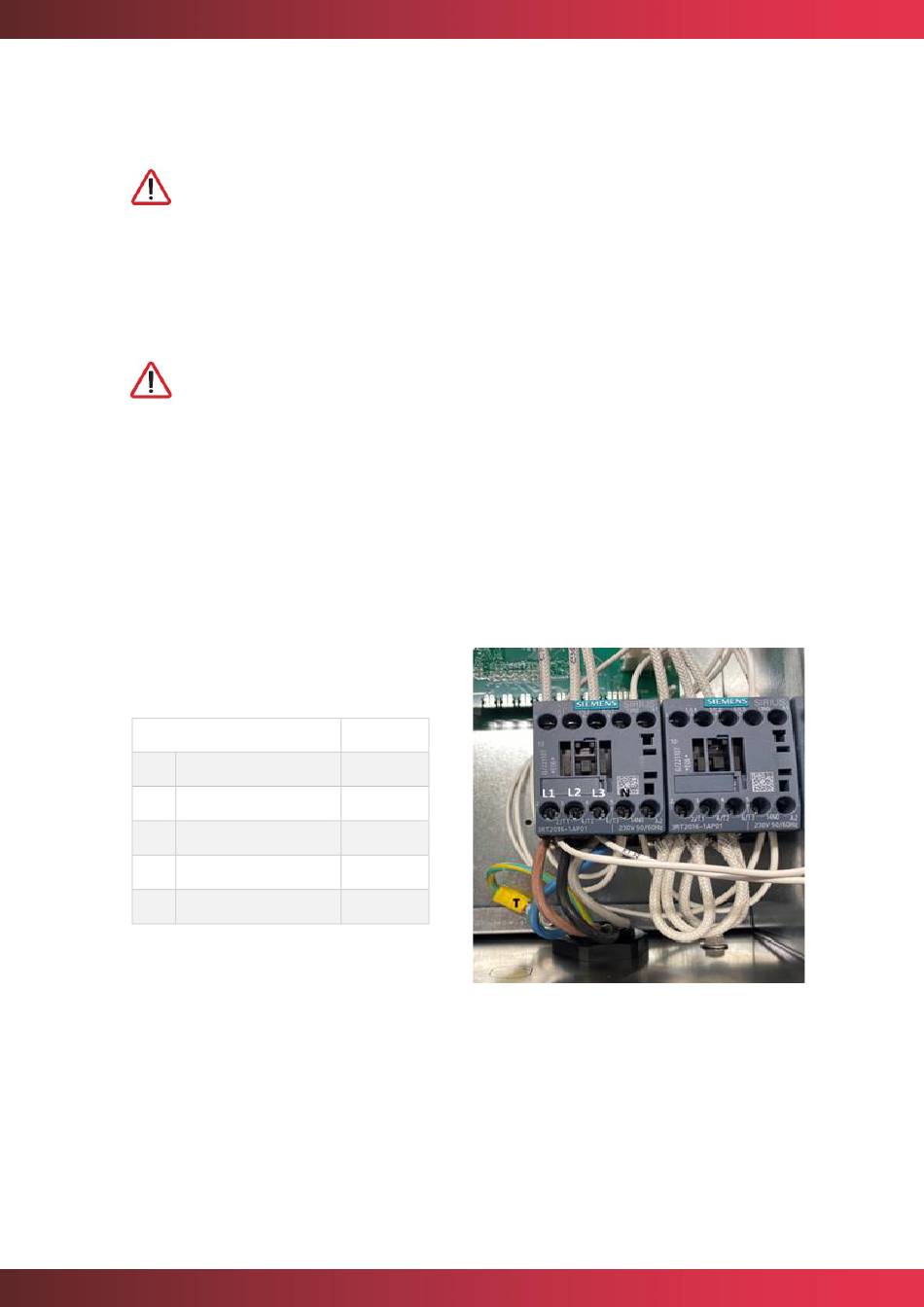

Figure3. Three-phase connection 400V 3L+N
COMPACT MASTER PRODUCT MANUAL - DT.MP.CM.2202.1
13
