2) Plug the double-row female header of LVDS screen cable to LVDS interface (J10) of
DEBIX Infinity, the red line should be connected to Pin1, Pin2; as for the sole 2Pin blue
and white line, the blue line is connected to Pin36 of GPIO (J2), the white line is
connected to Pin38 of GPIO (J2).
3) DEBIX Infinity connected to the power supply, the LVDS screen displays system desktop.
4.10. Usage of Radar Module
Component Preparation
Radar module, refer to

Control board of the Radar module, refer to the

Standard micro USB data cable

Lead wire

DEBIX Infinity board

www.debix.io

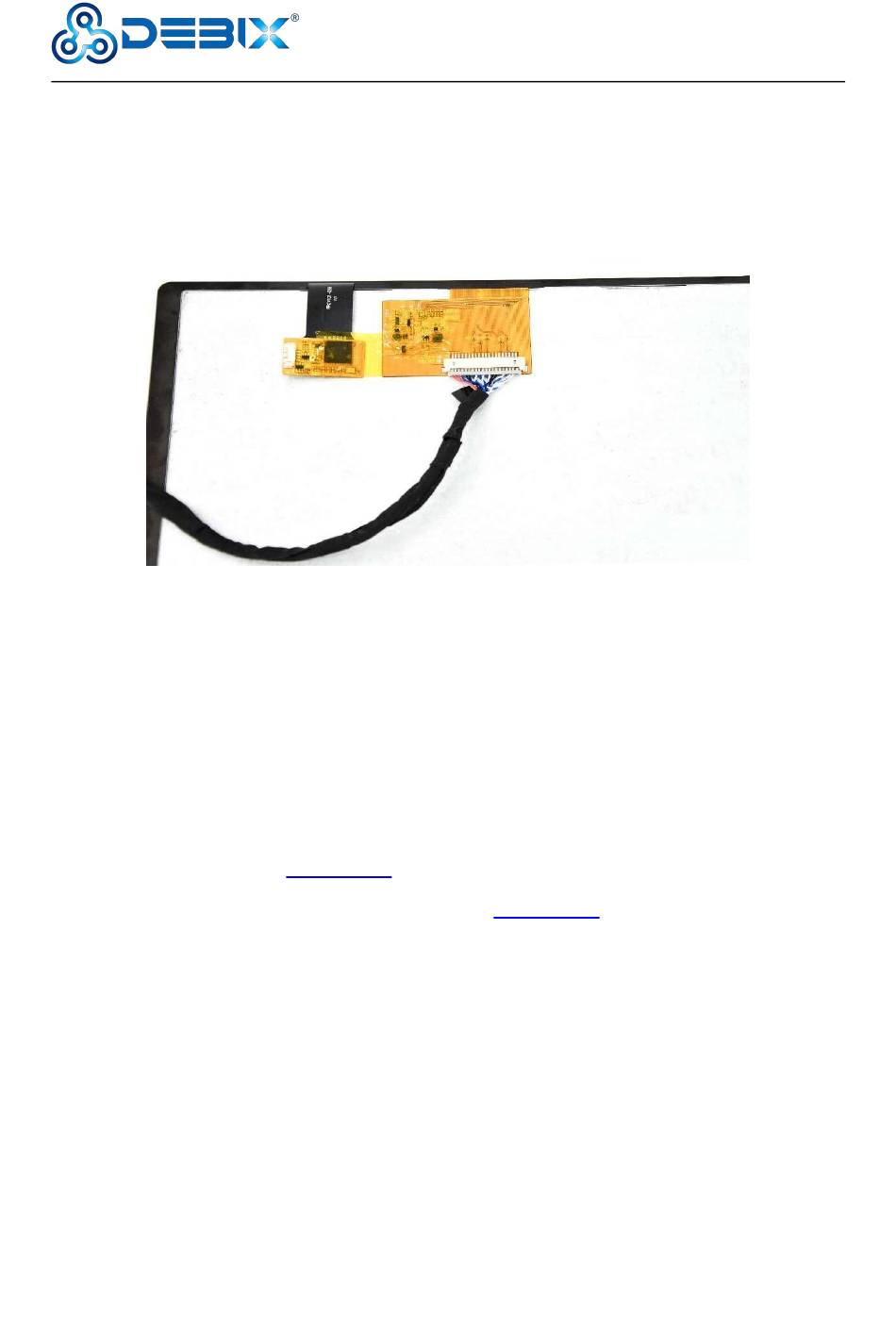

Figure 65 Connect LVDS screen cable to LVDS screen
specification of radar module
Polyhex Technology Company Limited
specification
65 / 79
