2.3.4.2. LVDS Interface

DEBIX Infinity provides one 2 x 15Pin LVDS display output interface (J10) driven by LDB to
support single or dual LVDS display.
Single channel (4 lanes) 80MHz pixel clock and LVDS clock output. It supports

resolutions up to 1366x768p60.
Asynchronous dual channel (8 data, 2 clocks). This is for a screen with two interfaces,

which are transmitted through two channels (odd pixel/even pixel). It supports pixels
higher than 1366x768p60 and up to 1080p60.

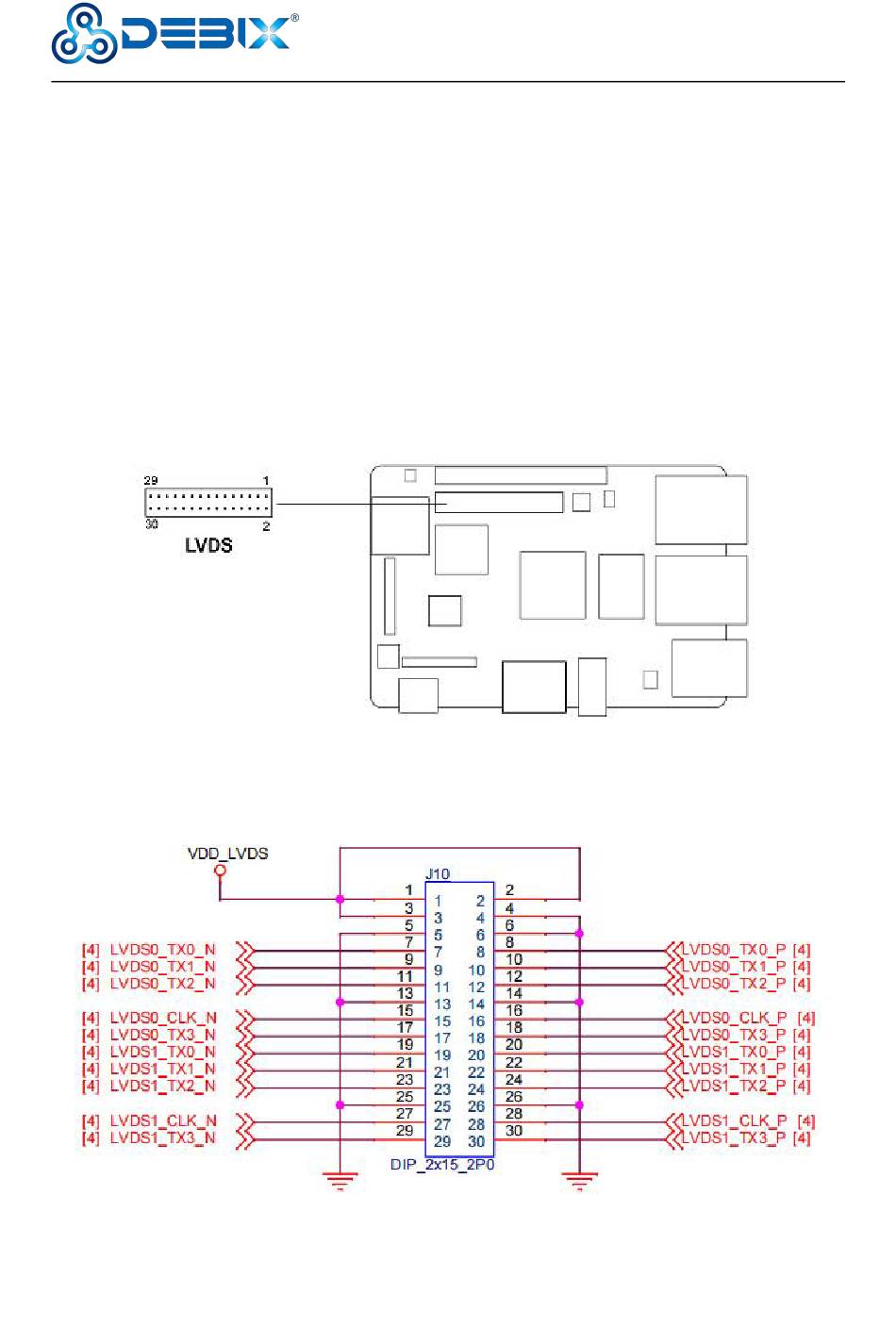

The pin sequence is shown in the figure:
www.debix.io
Figure 10 LVDS interface
Figure 11 Pin sequence of LVDS
