When no more than 2 LCD interfaces are used at the same time, each LCD interface supports
up to 1920x1200p60 display. When all 3 LCD interfaces are used at the same time, it supports
2 x 1080p60 + HDMI 4kp30.
NOTE
When DEBIX Infinity is configured with multiple displays on Ubuntu, drag mouse to
operate on other displays.

2.3.4.1. HDMI Interface

DEBIX Infinity has an HDMI interface (J9), and the connector is an Type-A HDMI female
socket, which is used to connect a monitor, TV or projector. HDMI resolution up to
3840x2160p30.
Audio supports 32 channel audio output and supports 1 S/PDIF audio eARC input.
The pin sequence is as shown in the figure:
www.debix.io
Polyhex Technology Company Limited

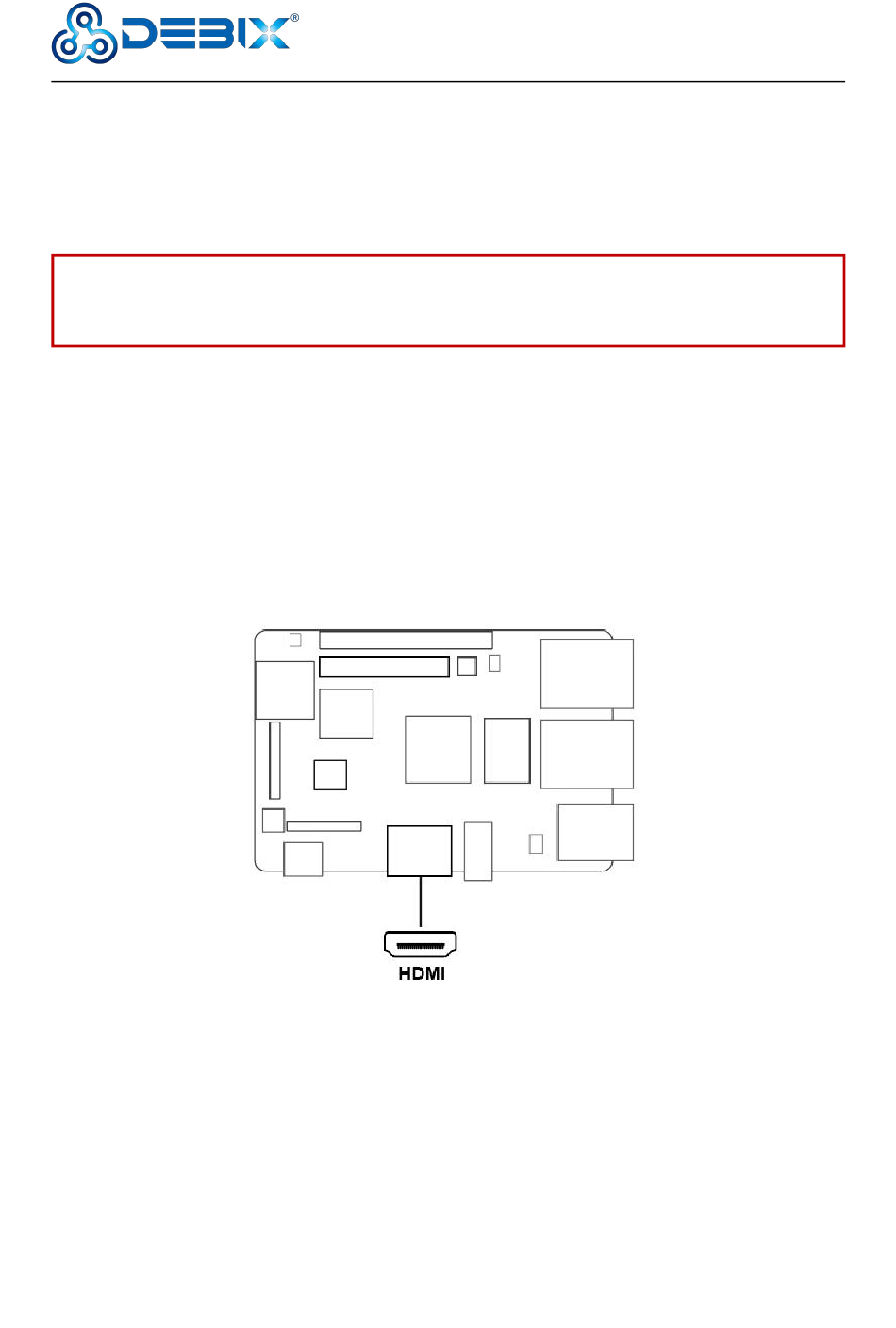

Figure 8 HDMI interface
