2.3.7. PCIe

DEBIX Infinity provides a PCIe interface (J18) with 19Pin/0.3mm FPC socket connector,
please refer to "FH26W-19S-0.3SHW(97)" on DEBIX website, which can be used to connect
some independent accessories, such as PCIe to USB.

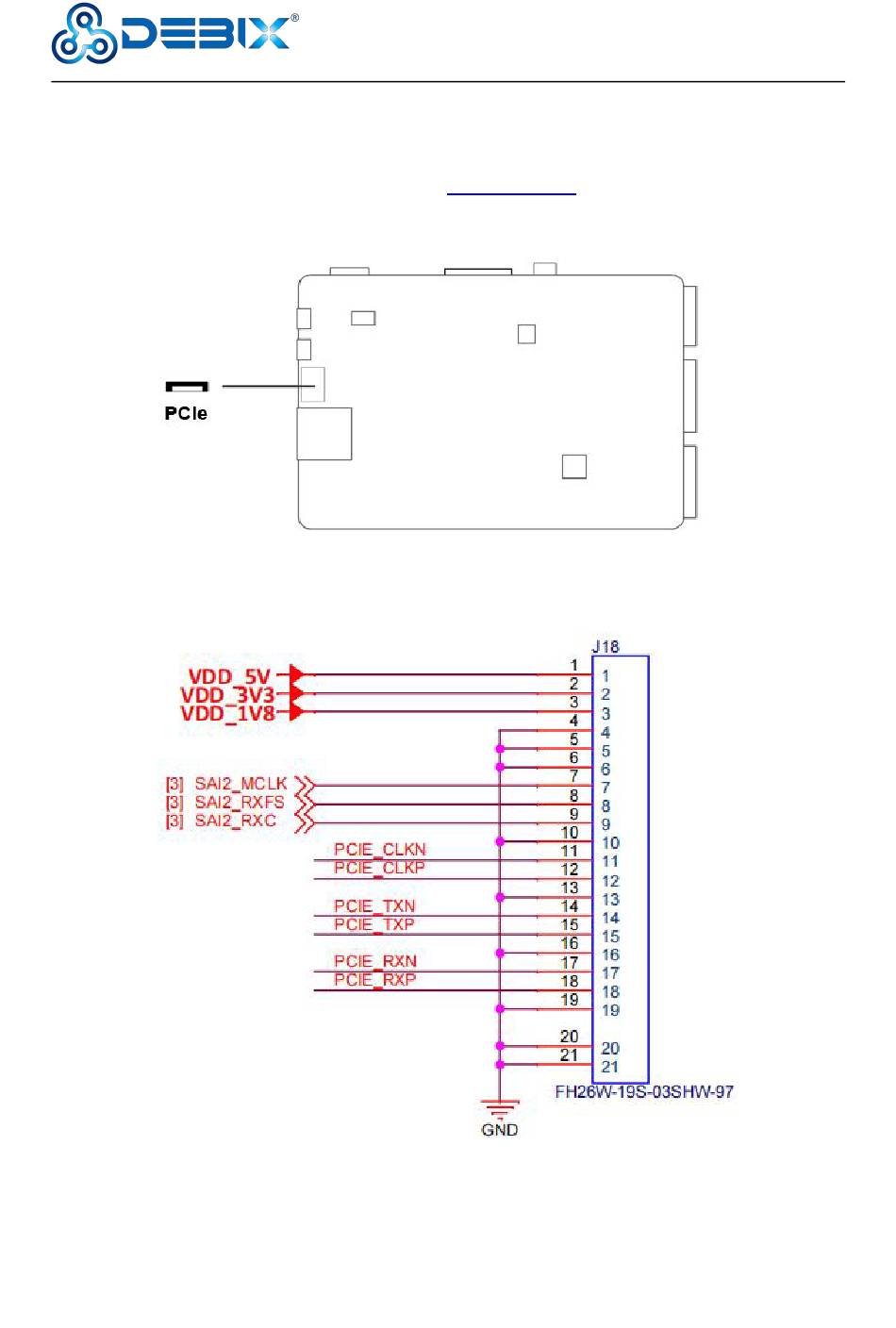

Figure 18 PCIe interface
The pin sequence is shown in the figure:
Figure 19 Pin sequence of PCIe
The PCIe interface is defined as follows:
