DEBIX Infinity, the red line should be connected to Pin1, Pin2; as for the sole 2Pin blue
and white line, the blue line is LVDS VCC Power EN (Active High) connected to Pin36 of
GPIO (J2), the white line is Backlight Power EN (Active High) and PWM connected to
Pin38 of GPIO (J2).
3) DEBIX Infinity connected to the power supply, the LVDS screen displays desktop.
3. Usage of HC101IK25050-D59V.C (LVDS) 1024x600 10.1-inch LVDS screen
1) Component Preparation: LVDS screen, DEBIX Infinity board, LVDS screen cable, as
shown in the figure below:
www.debix.io

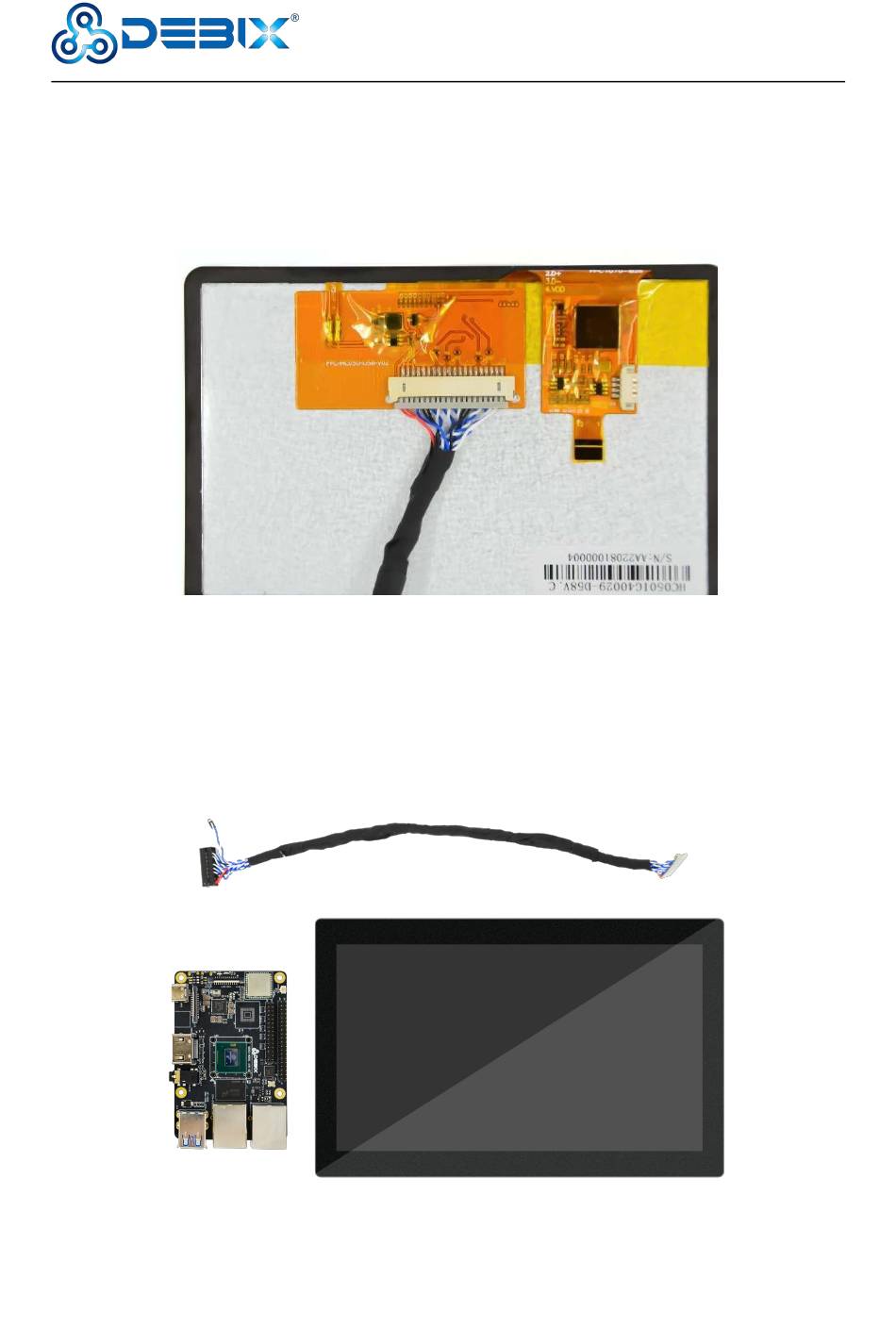

Figure 63 Connect LVDS screen cable to LVDS screen
Polyhex Technology Company Limited
Figure 64
