2.3.5. MIPI CSI Interface

There is one MIPI CSI interface (J11) on board, with a 2*12Pin/0.5mm FPC socket connector
for connecting DEBIX's camera module. Supports up to 12MP @30fps or 4kp45.
Figure 14 MIPI CSI

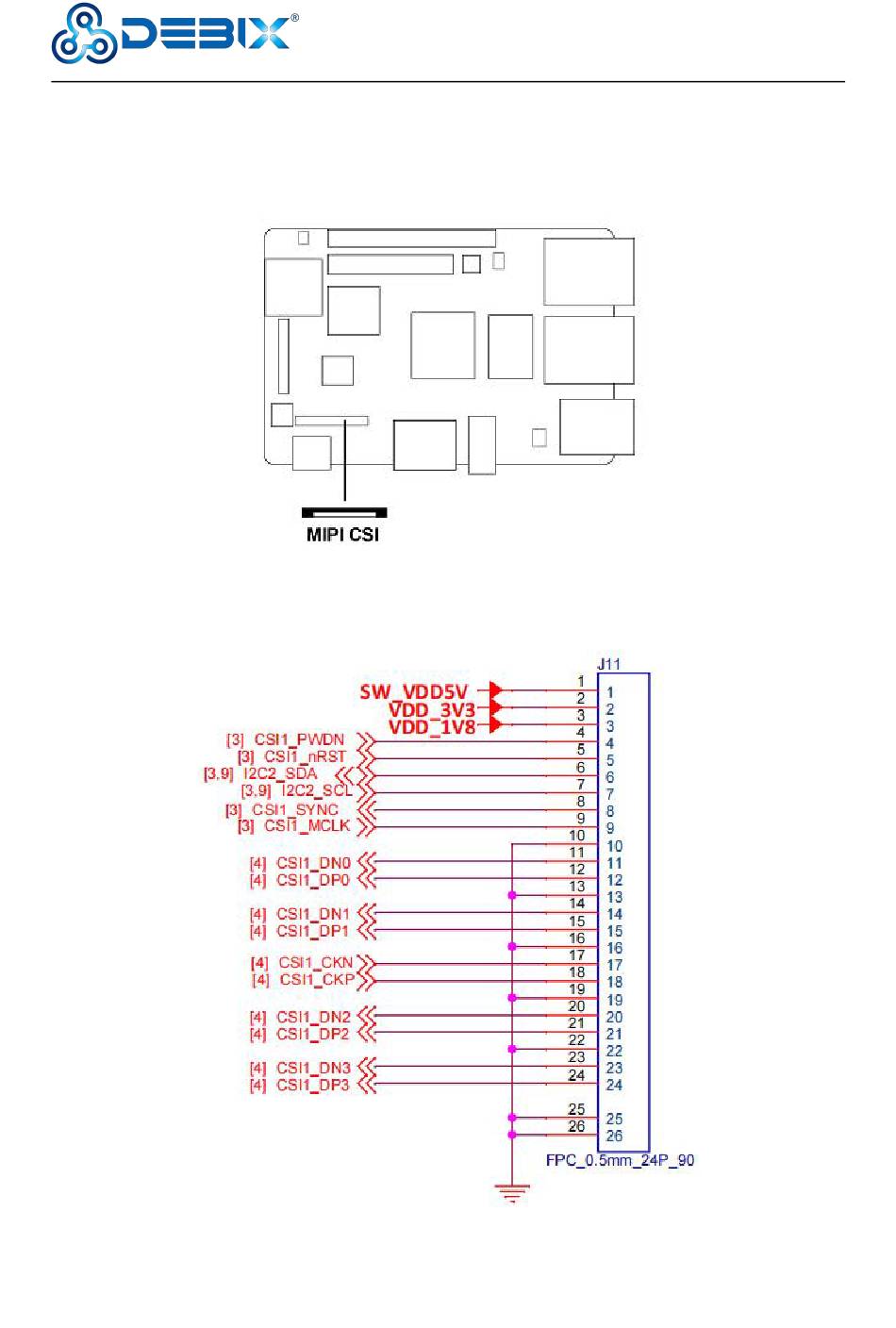

The pin sequence is shown in the figure:
Figure 15 Pin sequence of MIPI CSI
