DEBIX Infinity User Manual page 63

3) DEBIX connected to the power supply, the MIPI screen displays system desktop.
2. Usage of HC050IG40029-D58V.C(LVDS) 800x480 5-inch LVDS screen

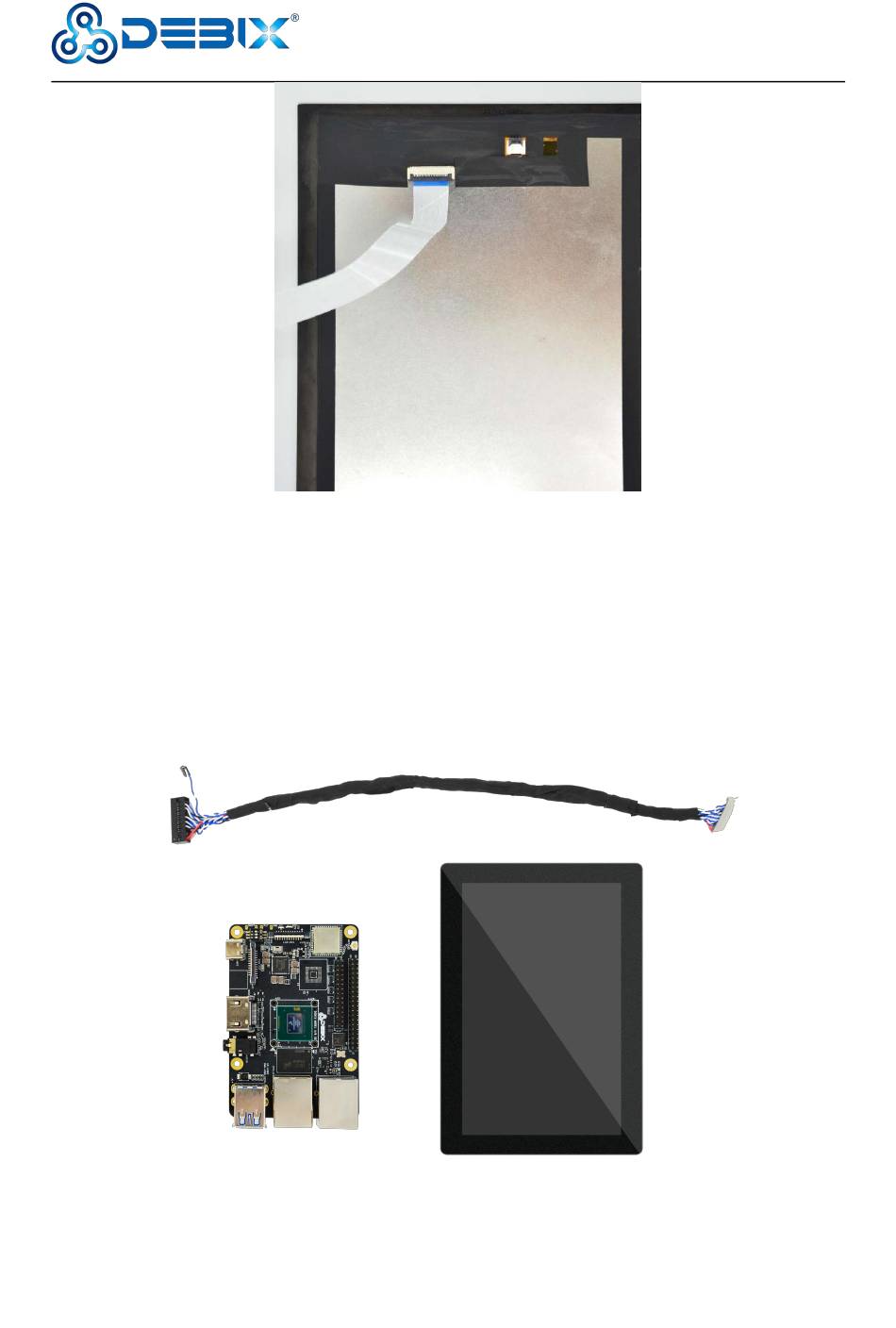

1) Component Preparation: LVDS screen, DEBIX Infinity board, LVDS screen cable, as
shown in the figure below:
2) Plug the double-row female header of LVDS screen cable to LVDS interface (J10) of
www.debix.io
Figure 61Connect FPC cable to MIPI screen
Figure 62
