USE OF COMPOSITOR SW67576:
To configure the Gateway, use the available software that runs with
Windows, called SW67576.
www.adfweb.com and its operation is described in this document.
(This manual is referenced to the last version of the software present
on our web site). The software works with MSWindows (MS 2000, XP,
Vista, Seven, 8).

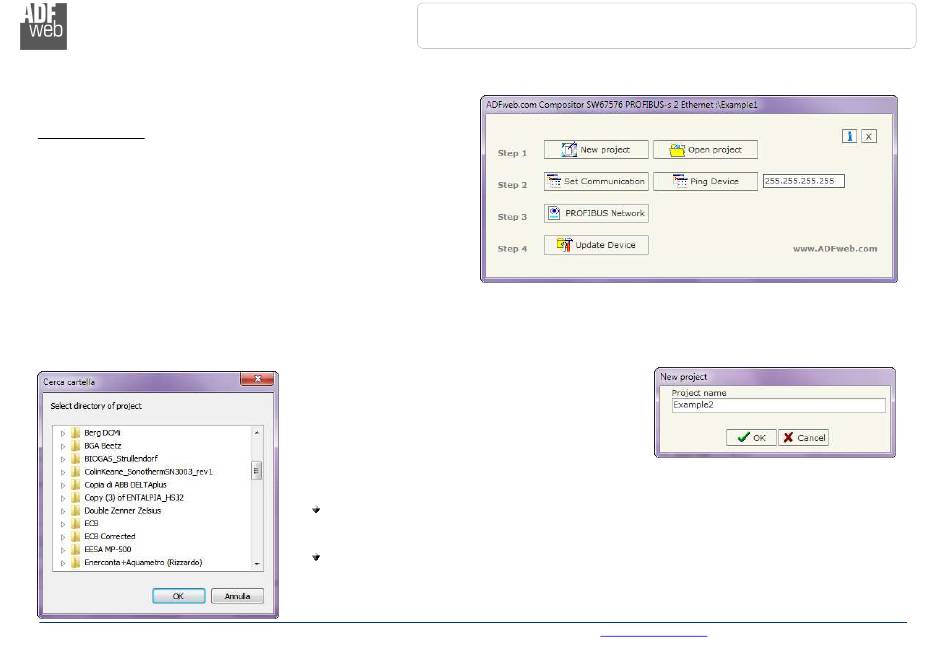

When launching the SW67576 the right window appears (Fig. 2).

NEW PROJECT / OPEN PROJECT:

The "New Project" button creates the folder which contains the entire device configuration.
ADFweb.com Srl – IT31010 – Mareno – Treviso
It is downloadable on the
A device configuration can also be imported or exported:
To clone the configurations of a Programmable "PROFIBUS Slave / Ethernet - Converter" in
order to configure another device in the same manner, it is necessary to maintain the folder
and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
"Open Project".
User Manual PROFIBUS Slave / Ethernet - Converter
Document code: MN67576_ENG
site
Figure 2: Main window for SW67576
INFO: www.adfweb.com
Revision 2.002 Page 11 of 29
