USE OF COMPOSITOR SW67153:
To configure the Gateway, use the available software that runs with
Windows, called SW67153.
www.adfweb.com and its operation is described in this document.

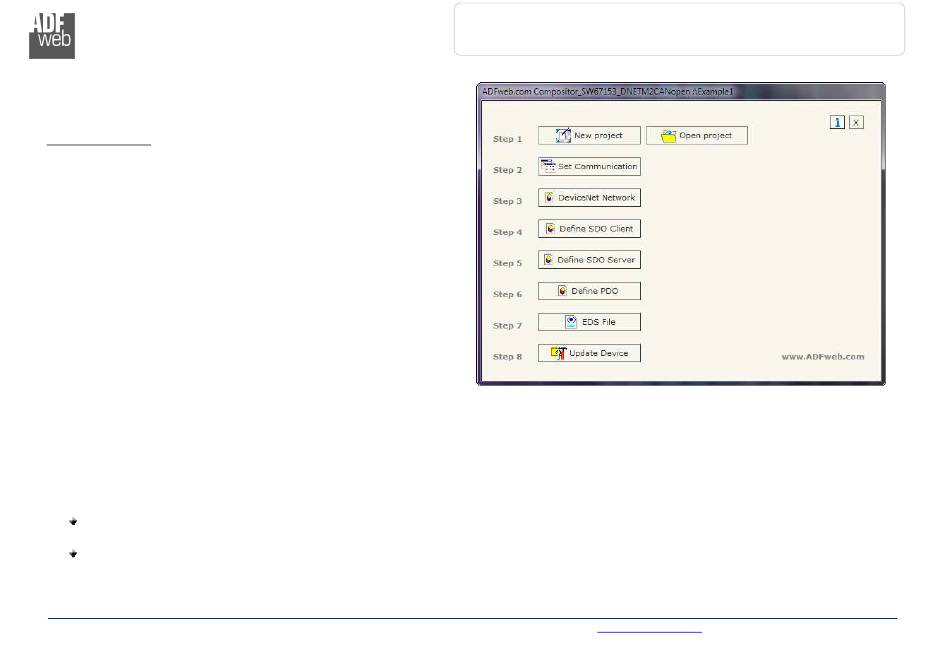

When launching the SW67153 the right window appears (Fig. 4).

NEW PROJECT / OPEN PROJECT:

The "New Project" button creates the folder which contains the entire device configuration.
A device configuration can also be imported or exported:
To clone the configurations of a Programmable CANopen from/to DeviceNet Master Gateway in order to configure another device in
the same manner, it is necessary to maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to duplicate the project folder with another name
and open the new folder with the button
ADFweb.com Srl – IT31010 – Mareno – Treviso
It is downloadable on the
"Open Project".
User Manual CANopen / DeviceNet Master
Document code: MN67153_ENG
site
Figure 4: Main window for SW67153
