USE OF COMPOSITOR SW67508:

To configure the Converter, use the available software that runs with
Windows called SW67508.
www.adfweb.com and its operation is described in this document.
(This manual is referenced to the last version of the software present
on our web site). The software works with MSWindows (MS 2000, XP,
Vista, Seven, 8; 32/64bit).
When launching the SW67508, the window on the right appears (Fig.
2).
Note:
It is necessary to have installed .Net Framework 4.

NEW PROJECT / OPEN PROJECT:

The "New Project" button creates the folder which contains the entire device's configuration.
It is downloadable on the
A device's configuration can also be imported or exported:
To clone the configurations of a programmable "Modbus TCP Slave / Modbus Master –
Converter" in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
"Open Project".
User Manual Modbus TCP Slave / Modbus Master
Document code: MN67508_ENG
site

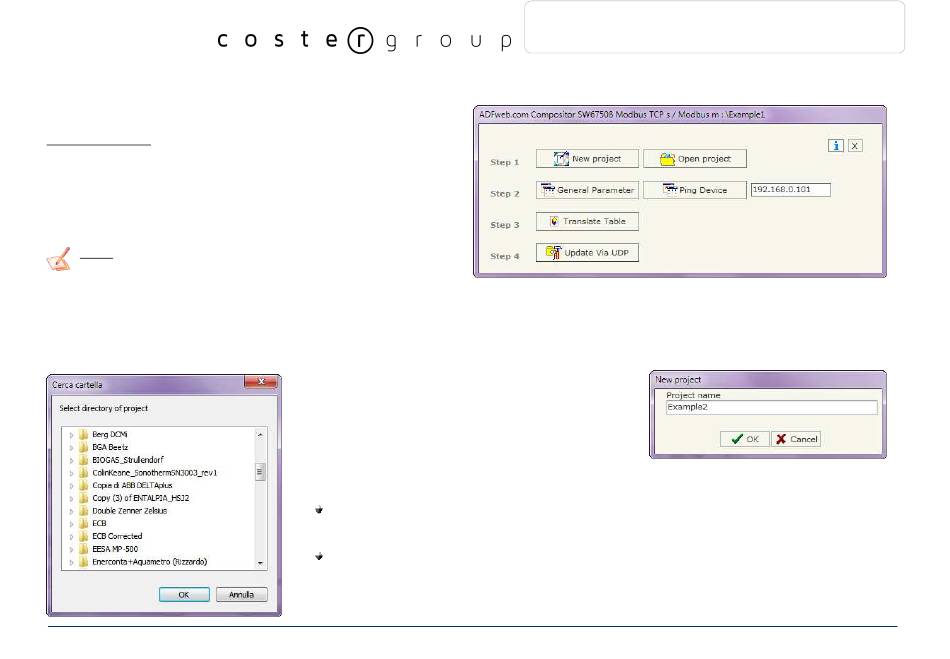

Figure 2: Main window for SW67508
