ODULE ARAMETERS
The section "Module Parameters" is used to modify the parameters of the Modules (Fig. 11).
In this section there are:
The List of all Module selected in the GSD
file ("Available modules") (Fig. 11, point
(1));
The List of all Parameters available for the
Module selected ("Parameters of module")
(Fig. 11, point (2));
The Configuration of all parameters in RAW
for the Module selected ("Parameters in
RAW (Hex)") (Fig. 11, point(3));
The admited value
parameter. It is possible to select the value
desired and confirm it with the "Apply"
button. If no value appears in this table, the
"Min Value" and "Max Value" are the limit of
the parameter. (Fig. 11, point(4));
The "Apply" button is used to confirm the
new value of the parameter, the "Default"
button is used to load the factory value for
the parameter. In "New
is possible to set the new value. (Fig. 11,
point(5));
ADFweb.com Srl – IT31010 – Mareno – Treviso
for the selected
Value" edit box it

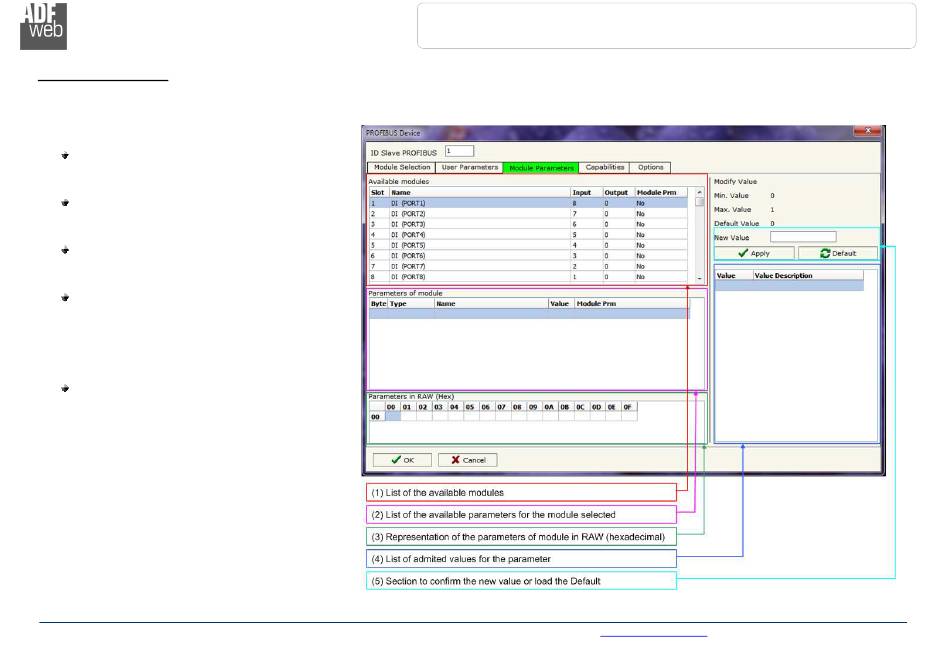

Figure 11: "PROFIBUS Device – Module Parameters" window
