If the "DLR" and/or "DLW" has got the value 0x00 there are no data to read/write.
The "Data IN" are the same that the HD67576-A1 sends.
The "Slave informations" (Byte 4 of all frames) gives informations about the slave interrogated. Every bit has a meaning:
•
Bit0: Configuration corresponds;
•
Bit1: Parameters OK;
•
Bit2: Configuration OK;
•
Bit3: Data OK.
If all is correct, you have to read 0x0F.
Example of communication between HD67576-A1 connected to a HD67575-A1 through Ethernet and a slave PROFIBUS connected to the
HD67575-A1. The Slave has got 7 OUT and 3 IN:

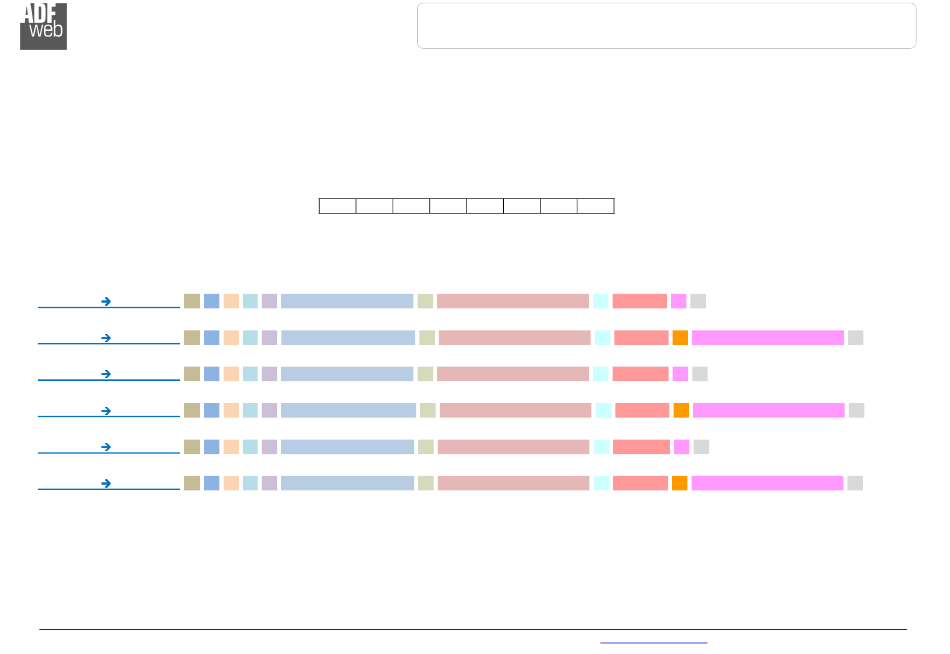

HD67576 HD67575: 8A 14 00 0F 07 00 00 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 00 00 00 00 00
Notes: first frame sent by the HD67576-A1. The IN and OUT are at 0.
HD67575 HD67576: 8B 14 00 0F 07 55 00 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 00 00 00 08 42 09 00 01 82 04 00 02 00
Notes: the HD67575-A1 sends a frame where the first OUT of slave is changed from 00h to 55h.
HD67576 HD67575: 8A 14 00 0F 07 55 00 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 03 00 00 00 00
Notes: the HD67576-A1 sends a frame where the first IN is changed from 00h to 03h.
HD67575 HD67576: 8B 14 00 0F 07 55 A5 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 03 00 00 08 42 09 00 01 82 04 00 02 00
Notes: the HD67575-A1 sends a frame where the second OUT of slave is changed from 00h to A5h.
HD67576 HD67575: 8A 14 00 0F 07 55 A5 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 03 5A 00 00 00
Notes: the HD67576-A1 sends a frame where the second IN is changed from 00h to 5Ah.
HD67575 HD67576: 8B 14 00 0F 07 55 A5 00 00 00 00 00 08 42 06 00 01 82 02 00 02 03 03 5A 00 08 42 09 00 01 82 04 00 02 00
Notes: nothing is changed in the Slave PROFIBUS connected to the HD67575-A1.
