User Manual PROFIBUS Slave / Ethernet - Converter
Document code: MN67576_ENG
Revision 2.002
Page 5 of 29
Industrial Electronic Devices

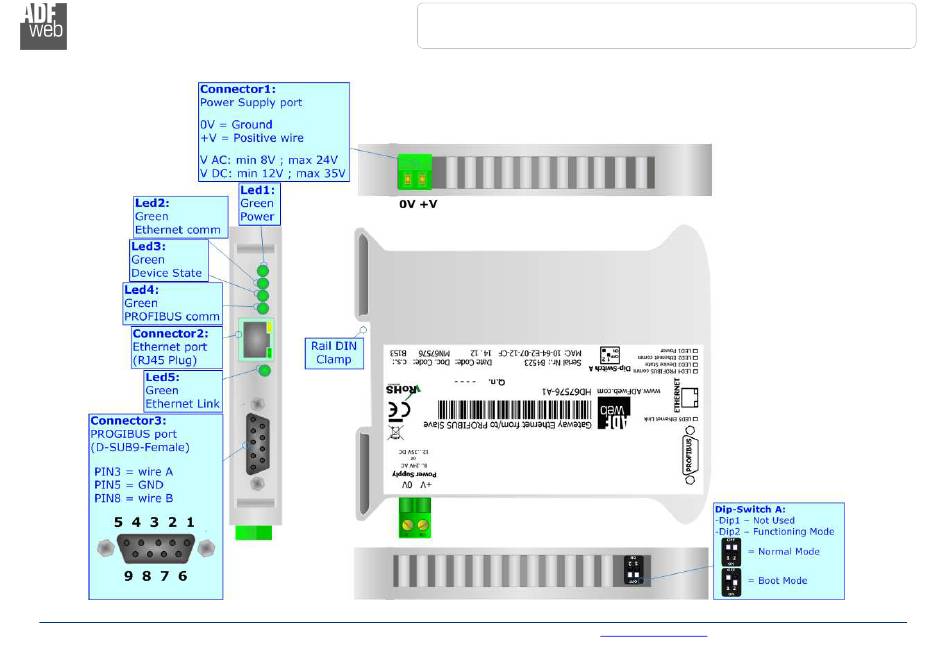

CONNECTION SCHEME:
Figure 1: Connection scheme for HD67576-A1
ADFweb.com Srl – IT31010 – Mareno – Treviso
INFO:
www.adfweb.com
Phone +39.0438.30.91.31
