PROFIBUS DEVICE:

By pressing the "Add Slave
the "PROFIBUS Network" window (Fig. 4) the "PROFIBUS Device" window appears (Fig. 6).
In this window is possible to:
Set the PROFIBUS Slave ID
Select the Modules present
in the PROFIBUS Slave
from the Available Modules
in GSD file ("Module
Selection");
Modify the User Parameters
(if present) of the
PROFIBUS device ("User
Parameters");
Modify the Parameters (if
present) of the Module
Selected ("Module
Parameters");
Watch Features and
Baudrate supported from
the PROFIBUS device
("Capabilities");
Select the Sync, Freeze
and Reset of Data Options
("Options").

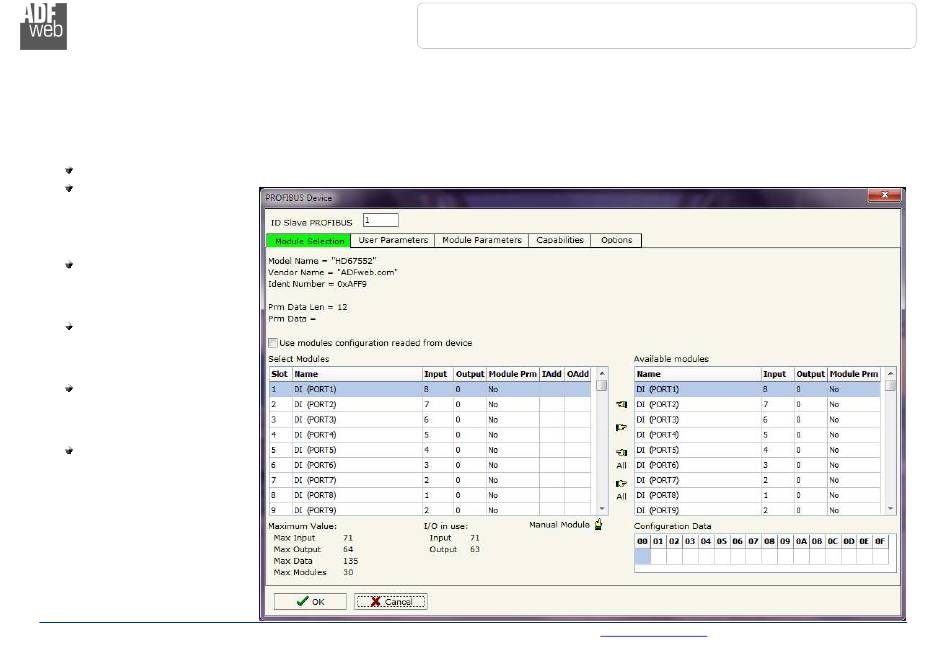

Figure 6: "PROFIBUS Device" window
