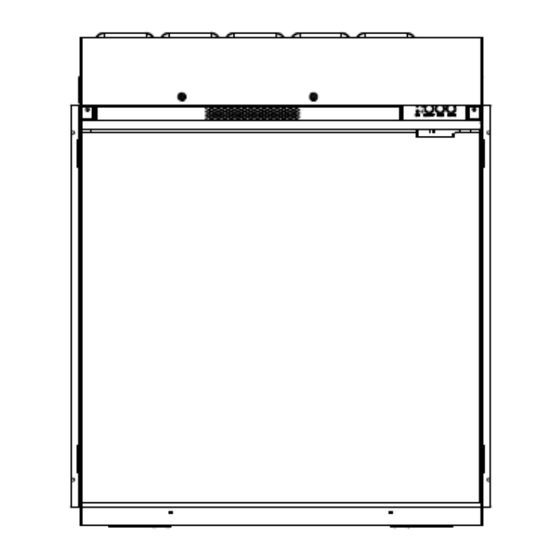

Instructions For Installation & Operation

4232- 16"-75RB, 4189-750L, 4275- 1000L, 4276-1250L, 4331-1500L,

4332-1800L, 4261-600P, 4225-750P

Scan To Download APP

Scan To Register Warranty

Prior to installing this product locate the data label and note the model and

serial number. This is required when registering your guarantee.

Model:____________________

Serial Number:_______________________

Scan To Download A Digital Copy of

Scan To Download Surround

IQFX Fire Installation Instructions

Installation Instructions And Installation Videos

200878_1

Need help?

Do you have a question about the 4232-16-75RB and is the answer not in the manual?

Questions and answers

Summary of Contents for bemodern 4232-16-75RB

Page 1 Instructions For Installation & Operation 4232- 16”-75RB, 4189-750L, 4275- 1000L, 4276-1250L, 4331-1500L, 4332-1800L, 4261-600P, 4225-750P Scan To Download APP Scan To Register Warranty Prior to installing this product locate the data label and note the model and serial number. This is required when registering your guarantee. Model:____________________ Serial Number:_______________________ Scan To Download A Digital Copy of...
Page 2 Contents Page Technical Specification 2 - 4 Important Safety Information 5 - 6 Contents of the Box(es) 7 - 8 Unpacking The Landscape & Portrait Fires 9- 10 Preparing The Landscape & Portrait Fires Installation - Landscape & Portrait Fires - Stud Wall Installing The Fire - Landscape &...
Page 3 Technical Specification Dimensions (mm) Fire Logs 750L - 4189 1000L - 4275 1002 1028 1250L - 4276 1252 1278 1500L - 4331 1502 1528 1800L - 4332 1802 1828 600P - 4261 750P - 4225 Visible Glass Area (mm) Boxed Weight Fire (Kg) 750L - 4189...
Page 4 Technical Specification Continued….. Dimensions (mm) Fire Logs 16-75” Inset Fire- 4232 Visible Glass Area (mm) Boxed Weight Fire 16”-75” Inset Fire- 4232 13.6 Tolerance +/- 1mm 200878_1...
Page 5 Technical Specification Continued….. Model No: 4232 (16-75”), 4189 (750L), 4275 (1000L), 4276 (1250L), 4331 (1500L), 4332 (1800L), 4261 (600P), 4225 (750P). Supply Voltage: AC 230-240V 50Hz, Maximum power consumption: 1538W. Model: 4232 4189 4275 4276 4331 4332 4261 4225 Power for Flame Effect 3.3w 6.6w 8.8w...
Page 6 Important Safety Information Read all the instructions carefully before using the appliance. For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris falling down onto the fire or drafts from the chimney it is recommended that the flue or opening is sealed off with non-combustible non-fibrous insulation materials.
Page 7 Important Safety Information Continued….. Cleaning and user maintenance shall not be made by children without supervision. Children aged from three years and less than eight years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Page 8 1.8M IEC Power Cable with Molded Plug Bag of Smoked Crystals Logs LED Light Assembly- 4 LED Light Strips Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200878_1...
Page 9 Box- 050199- Sold Separately LED Light Set- 830mm Fly Lead plus 3m LED Lights can be purchased separately. Note: Compatible LED Light Set are available from Bemodern Ltd. Other makes may not be suitable, and will void the warranty. Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk...
Page 10 There is 1 X Screw either side of the fire. See Diagram 3. Large Smal Diagram 3 Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200878_1...
Page 11 Unpacking The Landscape & Portrait Fires Continued….. Once the screws are removed- the Glass and Glass Bracket can be angled forward from the top of the fire and lifted out of the channel at the base of the glass. Large Note: Place the Glass, Glass Bracket and 2 X Screws in a safe place- these will be required later.
Page 12 830mm Fly Lead plus 3m LED lights are provided in a set. Note: A compatible LED Light Set is available from Bemodern Ltd. (Code: 050199). Other makes may Diagram 10 not be suitable, and will void the warranty. NOTE: When the LED Light Set is fitted, they should be checked for operation before the access is closed off by the installation.
Page 13 Installation Landscape & Portrait Fires - Stud Wall Once the fire has been prepared, use the following opening dimensions to construct the stud wall which the fire will be housed in. The stud wall must include a header as specified in the following diagrams. This is to ensure that the weight of the finished wall is not resting on top of the fire.
Page 14 Installing The Fire- Landscape & Portrait Fires Continued….. Note: The fire is a two adult person lift Lift the fire into the stud wall opening- leaving approx. 50mm of the fire protruding to the front. Unfolded the fixing brackets at the top and bottom of the fire.
Page 15 Fuel Bed Layout - Landscape & Portrait Fires Tip: Before dressing the fuel bed- position the previously removed glass bracket in the channel in the base of the fire, this will help to stop the smaller fuel bed material falling into the channel during installation. See Diagram 14 Diagram 14 Fuel Bed Dressing-...
Page 16 Log Positioning- Landscape & Portrait Fires Positioning the logs Denotes illuminated Logs. Diagram 17- Above shows an example of the 6 X log set up for the 600P. Diagram 18- Above shows an example of the 8 X log set up for the 750L/P. Denotes illuminated Logs Diagram 19- Above shows an example of the 10 X log set up for the 1000L.
Page 17 Fuel Bed Layout & Log Positioning- Landscape & Portrait Fires Continued…. Diagram 21- Above shows an example of the 15 X log set up for the 1500L. Denotes illuminated Logs 12 13 Denotes illuminated Logs. Diagram 22- Above shows an example of the 18 X log set up for the 1800L 200878_1...
Page 18 Replacing The Glass- Landscape & Portrait Fires Finally the Glass and Glass Bracket can be refitted, using the previously removed 2 X Screws. Tip- Check the channel in the base of the fire is free of any fuel bed material before proceeding further.
Page 19 Inset Fire Opening Sizes & Installation Introduction Opening Sizes Note: Follow the below minimum clearances in order to fit the appliances into a back panel or cavity. Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. We advise a qualified electrician conduct any electrical parts of the installation.
Page 20 Inset Fire Installation Continued….. Installation in a Marble Back Panel Diagram 27 6. Screw the back panel clamp bracket to the top of the fire by removing 3-off 10mm dome head screws fixed in the top of the fire. (See Diagram 27) There are three mounting positions dependent on the back panel thickness or if a spacer is being used.
Page 21 Inset Fire Internal Fuel Bed Layout & Log Positioning The fuel bed material can be found in the cardboard box positioned behind the front glass. To access this and Diagram 30 dress the fuel bed the glass needs removing. Please follow the below steps: 1.
Page 22 Internal Fuel Bed Layout & Log Positioning Continued….. Fuel Bed Dressing As a starting point follow the example below: Diagram 32- Place the Crystallised Pebbles / Smoked Crystals over the fuel bed, enough material has been provided to cover the fuel bed. Denotes illuminated Logs Diagram 33- Shows the logs supplied with the 4232 16”- 75Rb.
Page 23 User Instructions - Introduction WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse.
Page 24 User Instructions – Manual Control Wi-Fi pairing button Main ON / OFF Switch Heater Low, High, Off All lights On / Off 050199 LED mood light set connection Flame effect On, change colour x 3, Off point. Note: (Optional Extra) NOTE: The manual buttons control basic functions, not a full range of controls.
Page 25 User Instructions – Remote Control Power Used to turn on and off all the lighting effects. Button Used to turn on the flame effect function. There are total four flame effects: yellow, yellow + amber, amber Flame +yellow, amber and off. Press “←” “→”buttons to choose the type of flame, press “+”...
Page 26 User Instructions - APP Control Download the APP and Register an account 2. Register an account 1. Download "My PRYZM" APP 3. Choose your country. Enter your mobile 4. Enter the verification code. number or a valid Email address to get verification code.
Page 27 User Instructions - APP Control Add a device 3. Select Wi-Fi network and 1. Click Add Device or “+” 2. Download enter the password, click "My Pryzm" APP “Next” NOTE: Make sure your router is using a 2.4 GHz channel. The distance between the router and fireplace isn't less than 50cm.
Page 28 User Instructions - APP Control Continued….. Add a device - continued 6. Start to add device 7. Once added the fuel bed will 8. Click "Done" to turn green and stop flashing Complete Pairing 8. If the pairing fails in EZ 9.
Page 29 User Instructions - APP Control Continued….. Add a device - continued 10. Choose the AP Mode, confirm 11. Click "Go to Connect" 12. Choose a Wi-Fi called the indicator is flashing and click "SmartLife-XXX". "Next". 13. Go back to the APP. Start to 14.
Page 30 User Instructions - APP Control Continued….. Add a device - continued 16. Click the name of fireplace to enter the home screen 200878_1...
Page 31 User Instructions - APP Control Continued….. Using the APP - Home Screen Flame mode Heater mode NOTE: The AUTO mode will only work when you set the daily / weekly timer for the flame effect or heater. Using the APP - Changing the Flame Effect Colour Use the slide bar to turn off / on the lights NOTE: The slider under the flame effect colour options controls the brightness from 0% (off) to 100%.
Page 32 User Instructions - APP Control Continued….. Using the APP - Changing the Fuel Bed Colour Use the slide bar to turn off / on the lights Use the slide bar to turn Using the APP - Changing the Downlight Colour off / on the lights NOTE: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%.
Page 33 User Instructions - APP Control Continued….. Using the APP - Changing the optional mood light Colour Use the slide bar to turn off / on the lights NOTE: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%. 200878_1...
Page 34 User Instructions - APP Control Continued….. Using the APP - Setting a flame effect program. Up to 4 time periods per day with 4 different weekly schedules can be programmed 200878_1...
Page 35 User Instructions - APP Control Continued….. Using the APP – Setting temperature unit Manually changing the temperature Using the APP – Setting a heating program. Up to 4 time periods per day with 4 different weekly schedules can be programmed 200878_1...
Page 36 User Instructions - APP Control Continued….. Using the APP - Setting a heating program continued Using the APP – Setting the timer 200878_1...
Page 37 User Instructions - APP Control Continued….. Using the APP - Renaming your device 2. Click the you can create a new 1. Click the name for your device Using the APP – Creating a “Home” 3. Enter a home name, select the 1.
Page 38 User Instructions - APP Control Continued….. Using the APP – Adding a Member NOTE: Download the APP for the new member first. 1. Select "Me" → "Home Management" → "Name of Home“ → "Home Settings". Select "Add Member". OTHERS 2. Select 1: "APP account". OTHERS NOTE: This is to be completed on the new members account not your own 200878_1...
Page 39 User Instructions - APP Control Continued….. Using the APP – Adding a Member continued 1. Select "Others" to get invitation code. Then go to "Me > Home Management > Join Home“ and enter the code. Select the Home and ready for operate the appliance. OTHERS 200878_1...
Page 40 User Instructions - APP Control Using the APP – Share Device 2. Click “Share Device” 3. Click “Add Sharing” 1. Click the 5. Receive the message 4. Select APP account or Others APP ACCOUNT OTHERS 200878_1...
Page 41 User Instructions - Voice Control Before you can use this feature you must ensure your Amazon Alexa or Google Assistant APP is already linked to the voice controlled device. Now you can link the fire APP with either Amazon Alexa or Google Assistant, this is done by opening fire APP selecting “ME”...
Page 42 User Instructions - Voice Control Continued….. The following commands can be used to control the fire via voice control. NOTE: Use your "device name" in place of "my fireplace" below. This is the device name chosen during APP setup page 42 Using the APP - Renaming your device Amazon Alexa Commands Alexa, turn on <my fireplace>...
Page 43 User Instructions - Voice Control Continued….. The following commands can be used to control the fire via voice control. NOTE: Use your "device name" in place of "my fireplace" below. This is the device name chosen during APP setup page 42 Using the APP - Renaming your device Google Assistant Commands OK Google, turn on <my fireplace>...
Page 44 “+” button APP not operating fire Ensure the fire and mobile are connected to same Wi-Fi Should you be experiencing any problems with your fire please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200878_1...
Page 45 General Information Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well- being.
Page 46 On requiring service the purchaser should contact the retailer who supplied your product who will assist and advise you as necessary. Be Modern Ltd. 19-34 Bedesway Bede Industrial Estate Jarrow Tyne and Wear NE32 3BE Tel: (0191) 430 0901 Fax: (0191) 430 9522 Website: Bemodern 200878_1...
