1.2 System Features
The following views of the system display the main features. Refer to
specifications.
Front View
Control Panel
Information LED
Feature
Description
The main power switch applies or removes primary power from the power supply to the server
Power Button
but maintains standby power.
Reset Button
Resets the system
HDD LED
Indicates activity on the storage drives when flashing.
NIC LEDs
Indicates network activity on LAN1 or LAN2 (as indicated) when flashing.
Power Fail LED
Indicates a power supply module has failed.
Information LED
Alerts operator to several states, as noted in the table below.

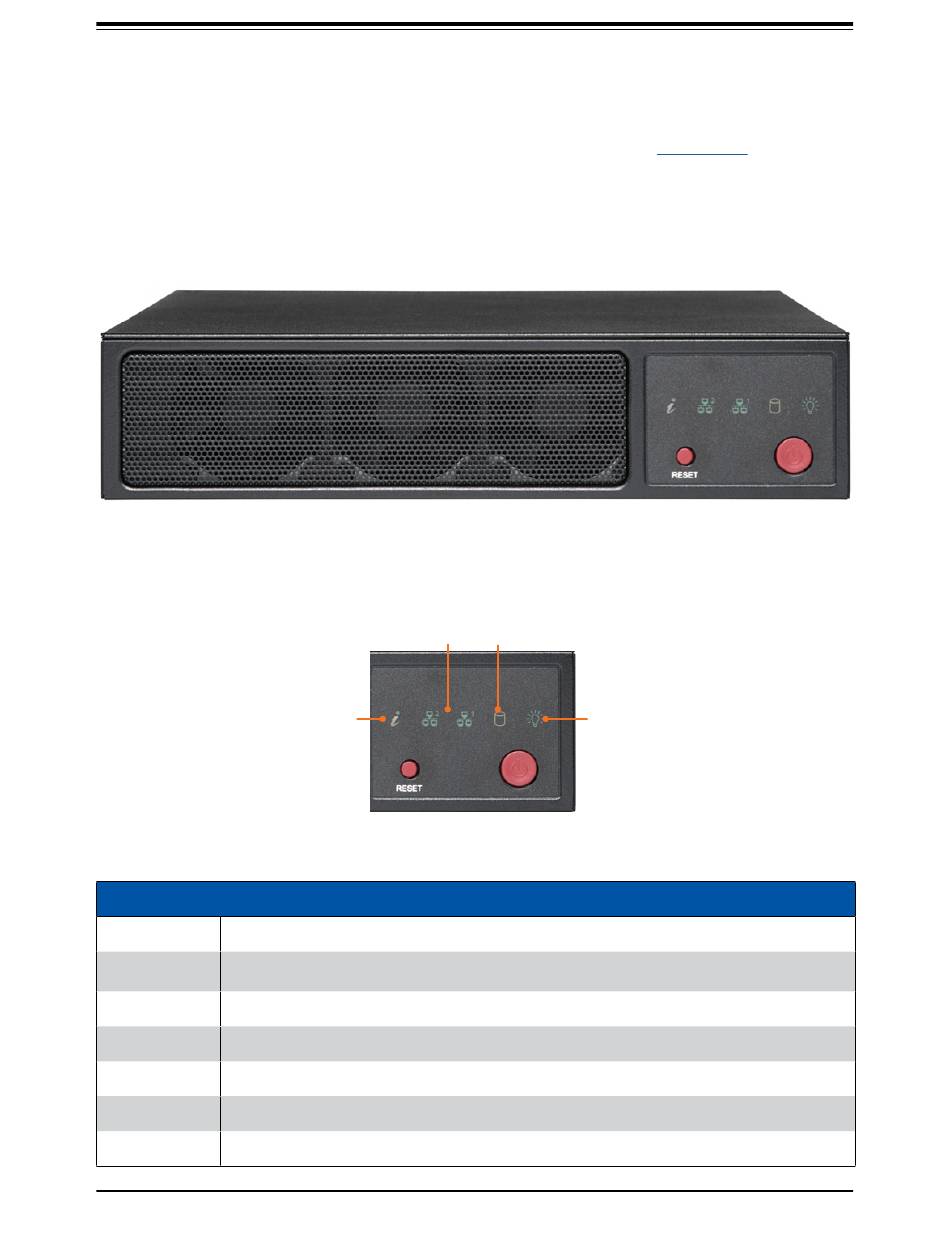

Figure 1-1. Front View
NIC LEDs
HDD LED
Reset Button
Power Button
Figure 1-2. Control Panel
Control Panel Features
8
Chapter 1: Introduction
Appendix B
for additional
Control Panel
Power Fail LED
