System Block Diagram - Supermicro SuperServer SYS-E200-12D-10C User Manual

System Block Diagram

The block diagram below shows the connections and relationships between the subsystems
and major components of the overall system.
PCIe 4.0 x8
SLOT7 PCIe 4.0 x8
PCIe 4.0 x3
M.2(M-Key)CONN
PCIe 4.0 x1
MUX
SATA 3.0 x1
PCIe 3.0 x4
OCuLink CONN
SATA 3.0 x4
PCIex4/SATAx4
FLASH
TPM
REAR IO
U1
SoC
CH-B
CPU
CH-A
PE1[7:0]
PE1[15:13]
PE1[12]
25G PHY
PCH
Quad0
Lane 0,2
Flexible I/O
8
Flexible I/O
16, 17, 18, 19
Flexible I/O
0, 1, 2, 3
Flexible I/O
20,21
USB[1:0]
USB[3]
USB 2.0 x1
USB[2]
SPI
PCIe x1
Flexible I/O
14
eSPI
3rd LAN
+
USB 3.0
10G LAN SFP28

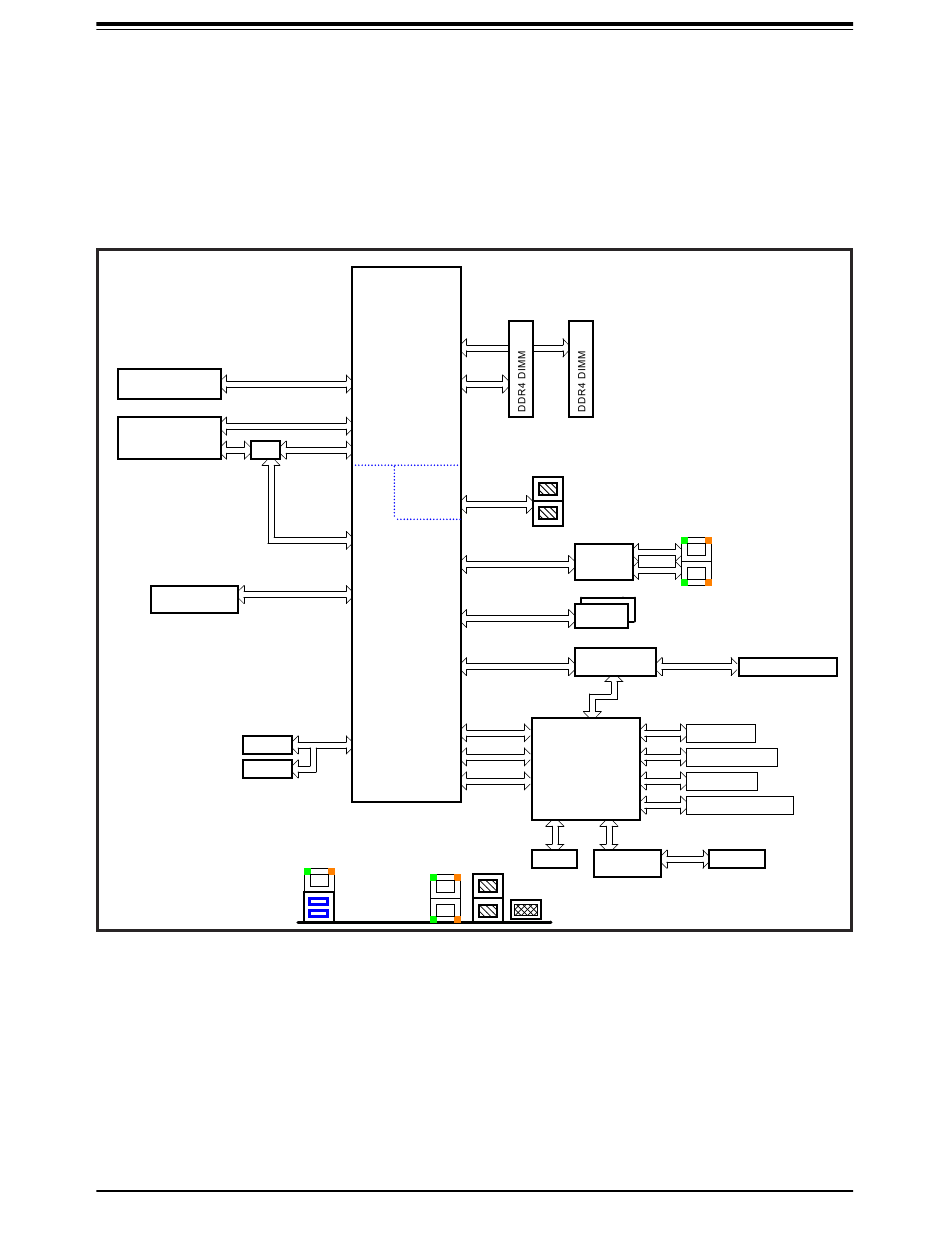

Figure 1-6. System Block Diagram
13
Chapter 1: Introduction
DDR4 2400/2666/2933 MT/s
A1 B1
SFP28
MDI
PCIe 3.0 x4
MDI
X550-AT2
USB 3.0 x2 USB 3.0
Conn.
USB 2.0 x2
USB 2.0
USB 2.0 x1 USB 2.0 X2
4-PORT HUB
USB 2.0 x1
USB2B
USB2A
BMC
AST2600
FLASH PHY
RTL8211FI
VGA
10G JLAN1
USB 2.0 HEADER
DDR4 CHIP
COM1 HEADER
VGA CONN
FAN1/2/A HEADER
IPMI LAN
