3.3 Ports

1
2
3
#
1
2
3
4
LAN Ports
Two 10GbE RJ45 LAN ports (LAN1/2) and two SFP 25GbE LAN ports (LAN3/4) are located
on the I/O back panel. There is also a dedicated IPMI LAN is above the USB2/3 ports on the
back panel. Refer to the LED Indicator section for LAN LED information.
VGA Port
A video (VGA) port is located on the I/O back panel. Refer to the board layout below for the
location.

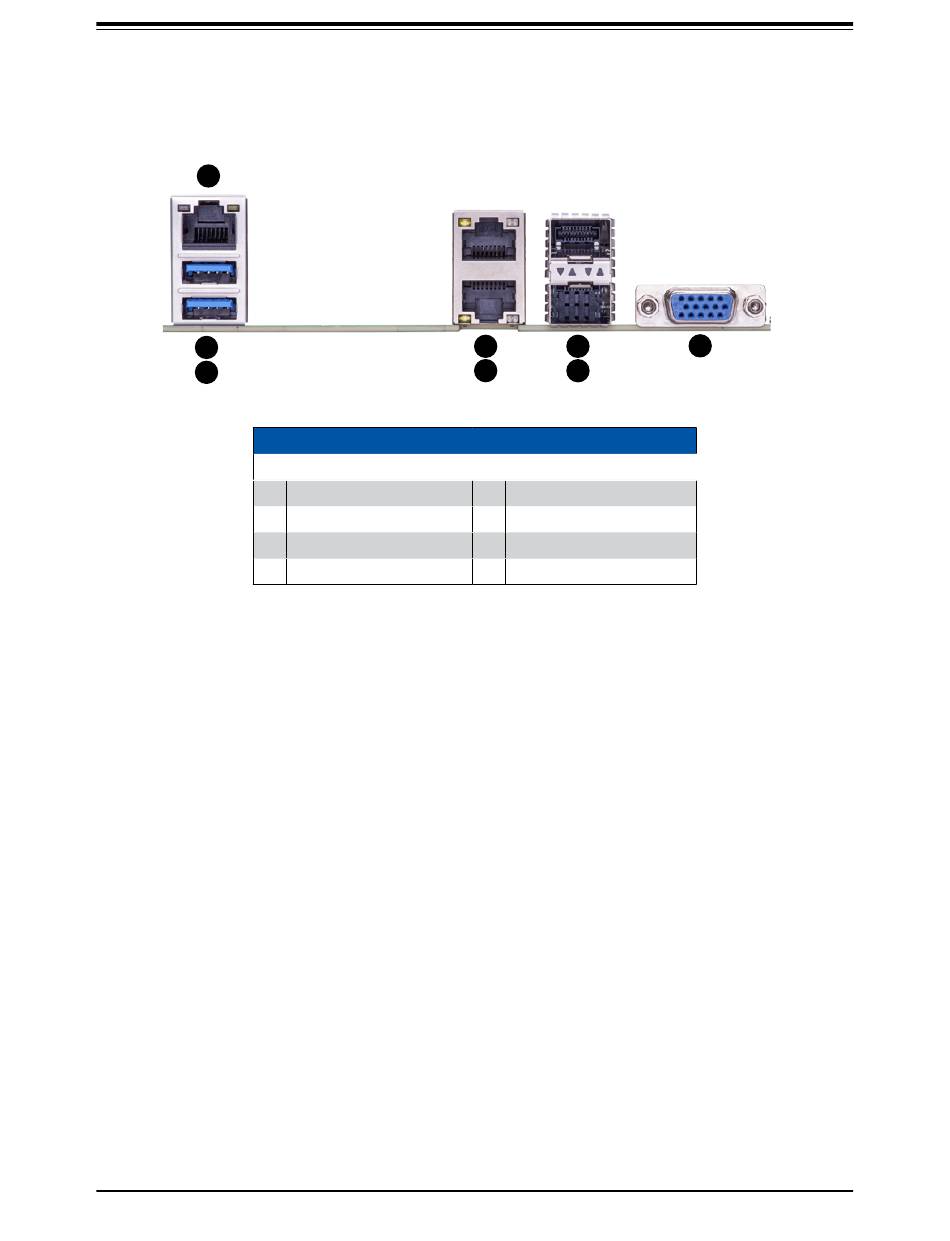

Rear I/O Ports
Description
Dedicated IPMI LAN port
USB 3.0 port
USB 3.0 port
RJ45 10GbE LAN port
32
Chapter 3 Motherboard Connections
4 6
5 7
# Description
5 RJ45 10GbE LAN port
6 SFP28 25GbE LAN port
7 SFP28 25GbE LAN port
8 VGA port
8
