1 .2.Nomenclature

1 .2.1 .PowerPick20 Gripper
The PowerPick20 Gripper is a mechanical assembly equipped with interchangeable components. It is the end-effector of the
robot. It uses the negative pressure generated by the PowerPick20 Vacuum Generator to create a vacuum and, through the
multiple suction cups, lifts, holds and moves boxes and other objects weighting up to18.2 kg (40 lb). To simplify this manual, the
word " box" will be used to represent the item to be handled with the Gripper. The PowerPick20 Gripper is directly installed on the
wrist of the robot, without a coupling interface.

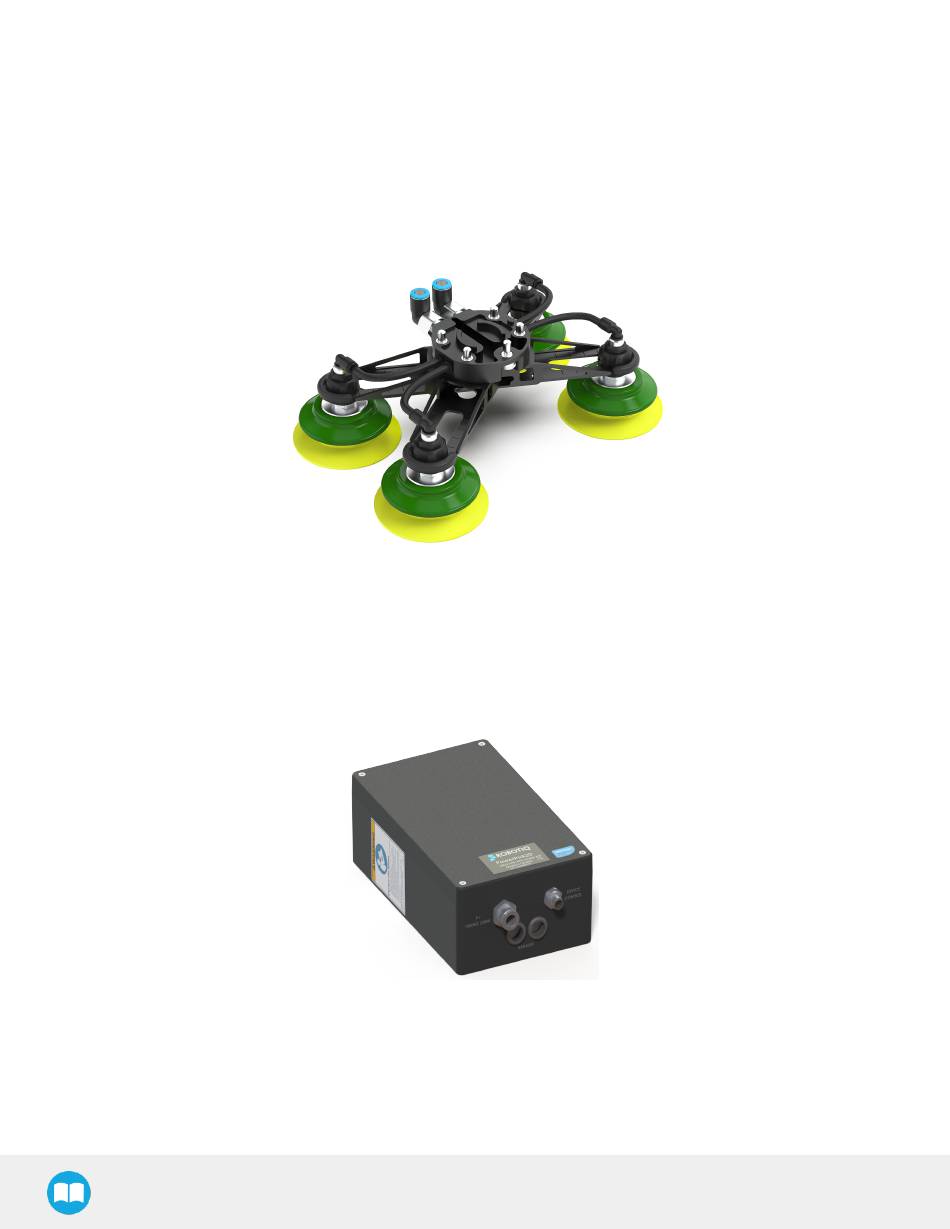

Fig. 1-1: PowerPick20 Gripper, Default Configuration
1 .2.2.PowerPick20 Vacuum Generator
The PowerPick20 Vacuum Generator is an electrical and pneumatic device composed of two solenoid valves, two pressure sensors
and two vacuum generator cartridges. It is an intermediate controller, connected to the robot controller and the PowerPick20
Gripper via I/O terminal blocks and air tubes. The PowerPick20 Vacuum Generator creates and releases the vacuum for the
PowerPick20 Gripper.
Fig. 1-2: PowerPick20 Vacuum Generator
