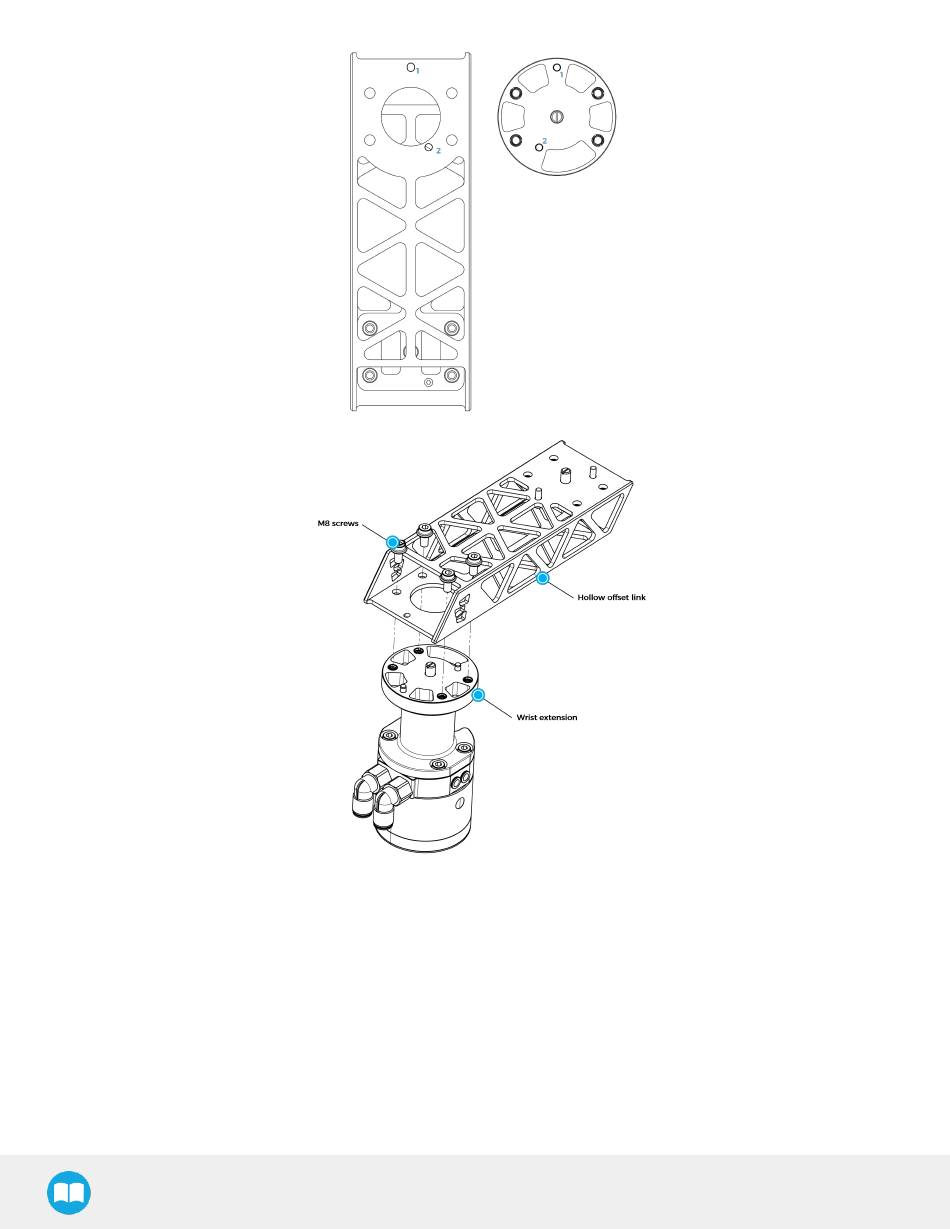

Fig. 3-6: Installation of the Hollow Offset Link on the Wrist Extension
Installation of Suction Cup Brackets
Suction Cup Brackets on Manifold
Align the holes of the suction cup brackets with the corresponding pins on the manifold.
Install the suction cup brackets onto the Manifold with four (4) M8 x 40 mm hex socket head cap screws with captive spring washer
using the provided 6 mm hex key. Required torque is 16 Nm (11.8 lb-ft).
Insert one end of the 8 mm air tube (275 mm) into the manifold and the other end into the elbow fitting of the air node.
Repeat for all four (4) air nodes.
