3.5.1 .PowerPick20 Vacuum Generation Unit Installation
Installation
1. Identify the area where the PowerPick20 Vacuum Generation Unit will be installed. Choose a location so that the electrical
cable and air tubes will not encumber the working environment.
2. Install the Powerpick20 Vacuum Generation Unit using two (2) M8 bolts (tools and hardware not provided).
Caution
Make sure the installation of the PowerPick20 vacuum generator on a machine or piece of equipment does not alter the
warranty or certification of said machine or piece of equipment.
3. Connect a 12 mm air tube (not provided) to the air supply source and to the Powerpick20 vacuum generator.
4. Connect the PowerPick20 vacuum generator to the robot control box. Please refer to Electrical Installation section for more
details.
Tip
If the PowerPick20 Vacuum Gripper is used in conjunction with the PE20 Robotiq Palletizing Solution, follow the
PowerPick20 Vacuum Generation Unit installation instructions found in the PE20 user manual.

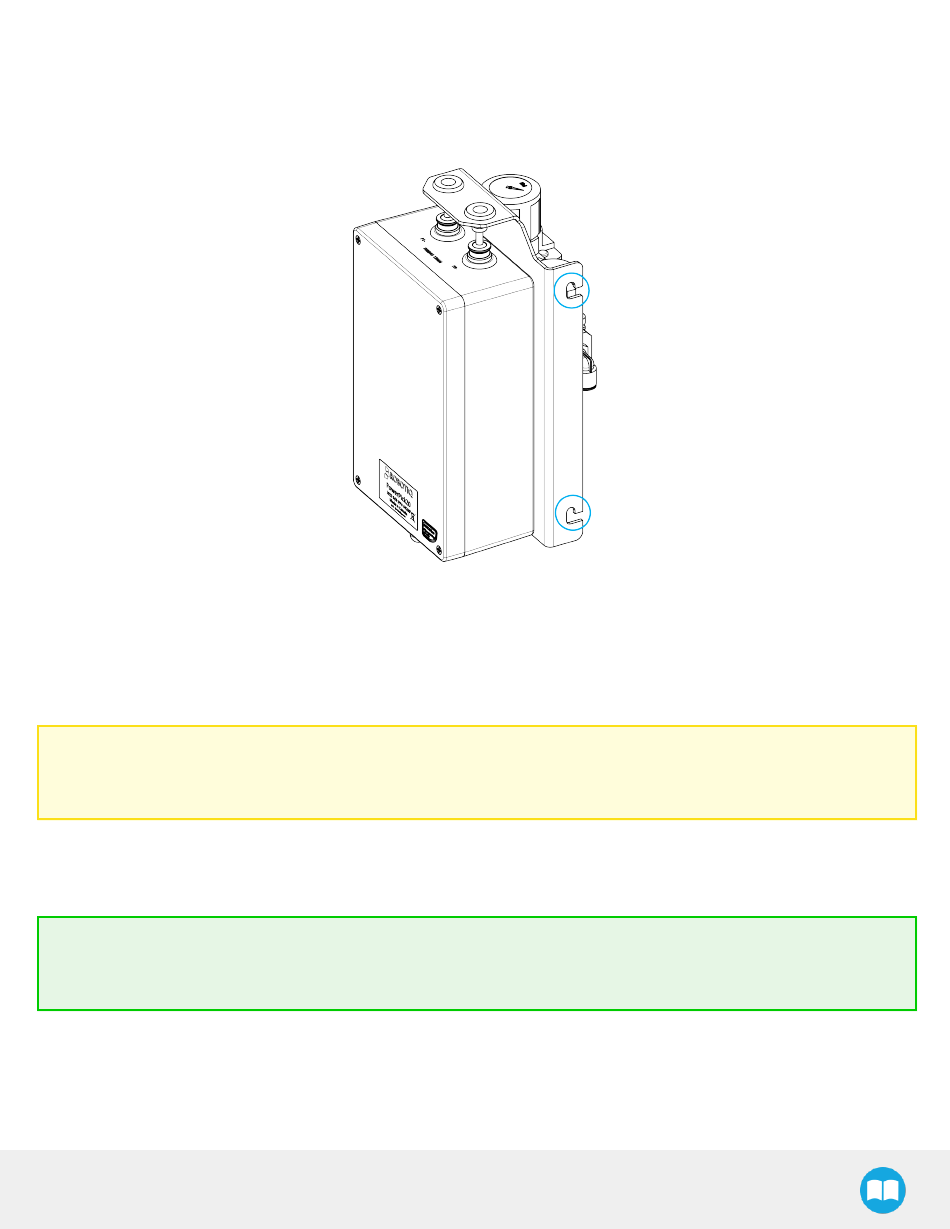

Fig. 3-1: PowerPick20 Vacuum Generation Unit
