Chapter 3: System Setup

Installing an M.2 Module (Key B 2242)

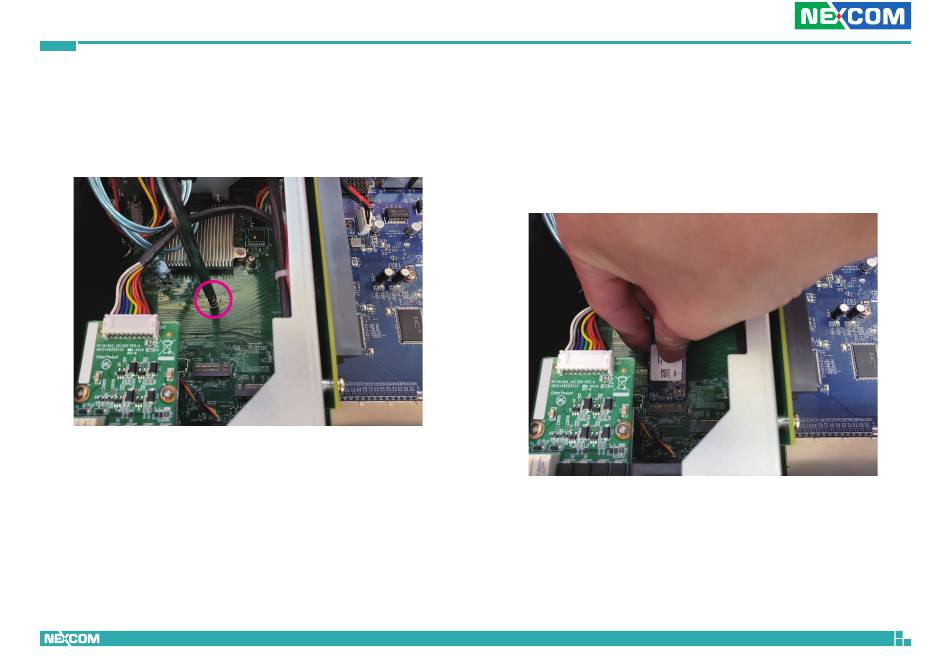

Loosen the screw on the mainboard and set it aside for later use.

Insert the M.2 module into the M.2 Key B slot at a 45-degree angle

until the gold-plated connector on the edge of the module completely

disappears into the slot.
