Chapter 2: Jumpers and Connectors

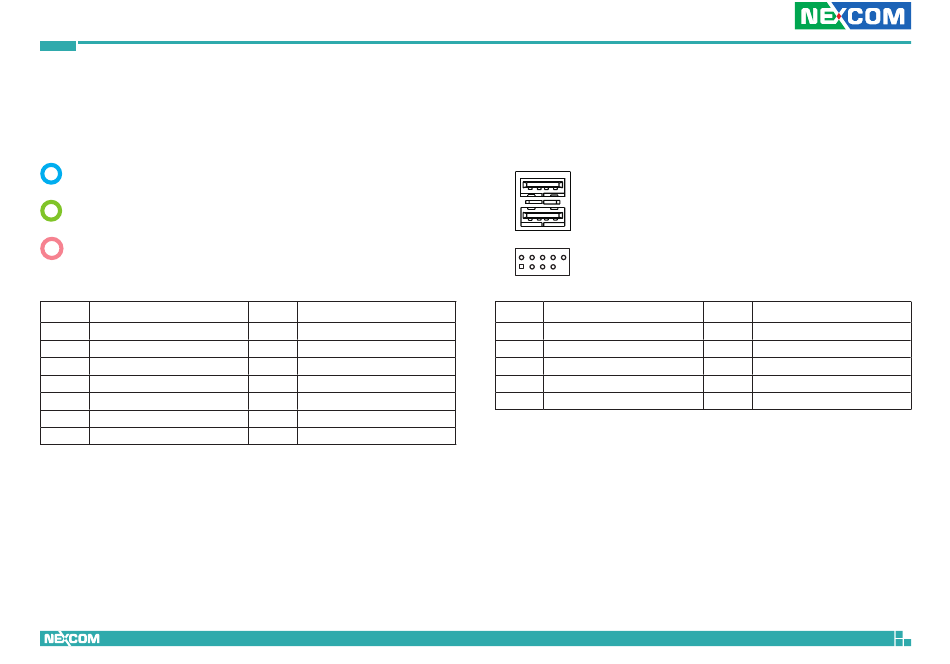

Audio Jacks

Connector type: Line In, Line Out, MIC
Connector location: HDA1
Line In
LIne Out
MIC
Pin Definition
1 AGND_P
3 AGND_P
5 MIC_OUT_R_C
22 LINE_OUT_L_C
24 FRONT_JD
32 LINE-L_C
34 LINEIN1_JD
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 MIC_OUT_L_C
4 MIC1_JD
23 AGND_G
25 LINE_OUT_R_C
33 AGND_B
35 LINE-R_C

USB 2.0 Ports

Connector type: USB 2.0 Type A ports
Connector location: J1
4 1
8 5
2 10
1
Pin Definition
1 V5P0_USB2_HDR
3 USB2_5_DN_CM
5 USB2_5_DP_CM
7 GND
9 X
17
Pin Definition
2 V5P0_USB2_HDR
4 USB2_6_DN_CM
6 USB2_6_DP_CM
8 GND
10 N/C
