Chapter 2: Jumpers and Connectors

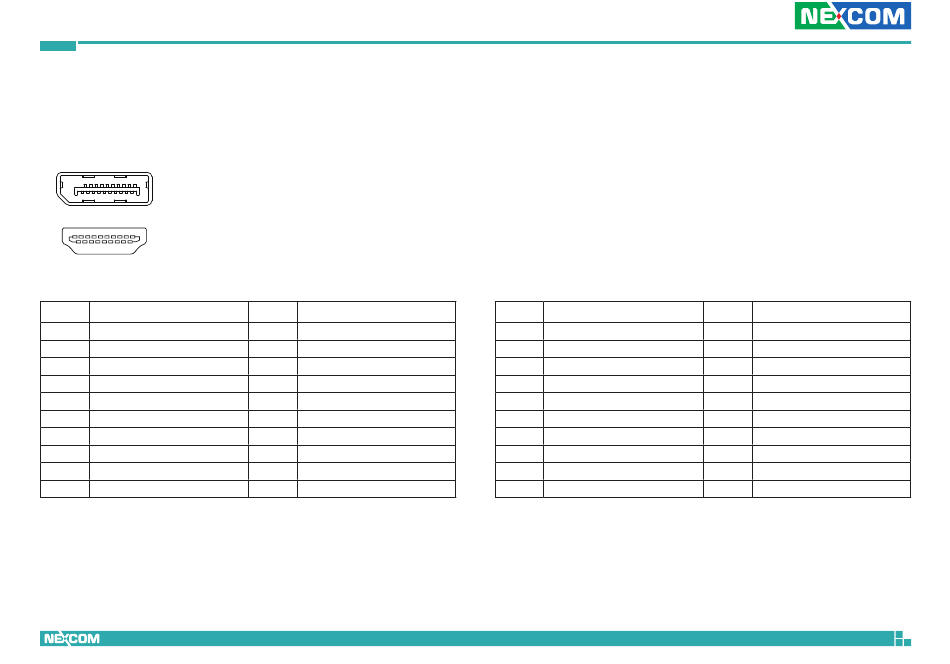

DisplayPort 1.4 and HDMI 2.0b Connectors

Connector location: CON2
19 1
20 2
39 21
38 22
Pin Definition
1 DP14_TX_CM_P0
3 DP14_TX_CM_N0
5 GND2
7 DP14_TX_CM_P2
9 DP14_TX_CM_N2
11 GND4
13 DP14_OB_AUX_EN
15 DP14_AUXP_SNK
17 DP14_AUXN_SNK
19 GND
Copyright © 2024 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND1
4 DP14_TX_CM_P1
6 DP14_TX_CM_N1
8 GND3
10 DP14_TX_CM_P3
12 DP14_TX_CM_N3
14 GND
16 GND5
18 DP14_HPD_SNK
20 V3P3_DP14
Pin Definition
21 HDMI20_CRLS_DP2
22 GND
26 HDMI20_CRLS_DN1
27 HDMI20_CRLS_DP0
28 GND
32 HDMI20_CRLS_CKN
33 CEC
35 HDMI20_CRLS_SCL
37 GND
39 HDMI20_RT_HPD_SNK
14
Pin Definition
23 HDMI20_CRLS_DN2
24 HDMI20_CRLS_DP1
25 GND
29 HDMI20_CRLS_DN0
30 HDMI20_CRLS_CKP
31 GND
34 NC
36 HDMI20_CRLS_SDA
38 V5P0_HDMI1
