Chapter 2: Jumpers and Connectors

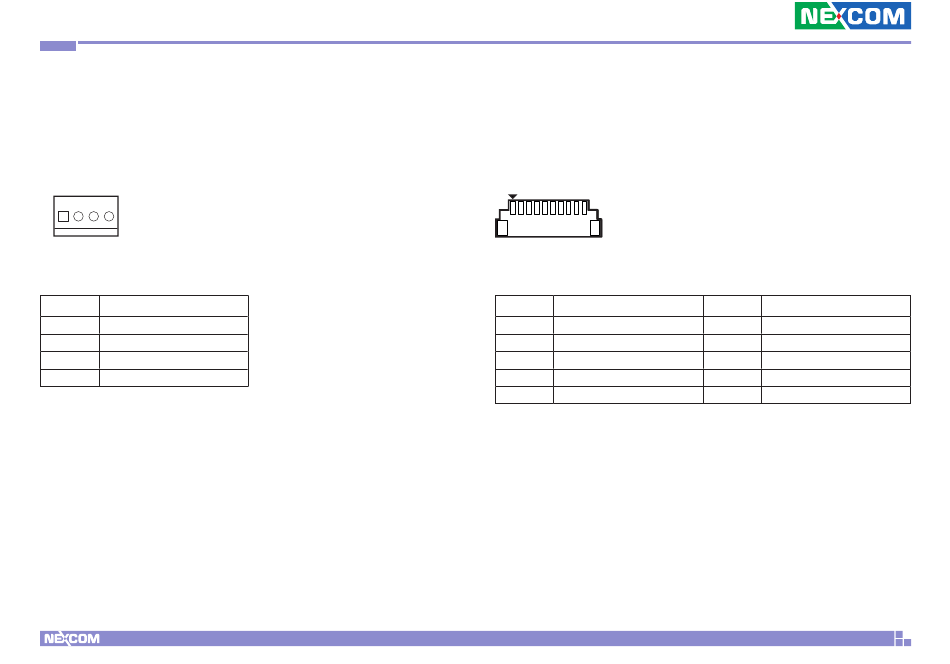

System Fan Connector

Connector type: 1x4 4-pin header
Connector location: SYSFAN1
1 4
Pin Definition
1 GND
2 SYS_FAN_PWR
3 SYS_FAN_PWMIN
4 SYS_FAN_PWMOUT
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.

LPC Debug Connector

Connector type: 1x9 9-pin header
Connector location: JLPC1
1 10
Pin Definition
1 GND
3 CK_33M_LPC
5 LPC_AD3
7 LPC_AD1
9 LPC_SERIRQ
12
Pin Definition
2 LPC_RST#
4 LPC_FRAME#
6 LPC_AD2
8 LPC_AD0
10 +3.3V
