1. Front Panel

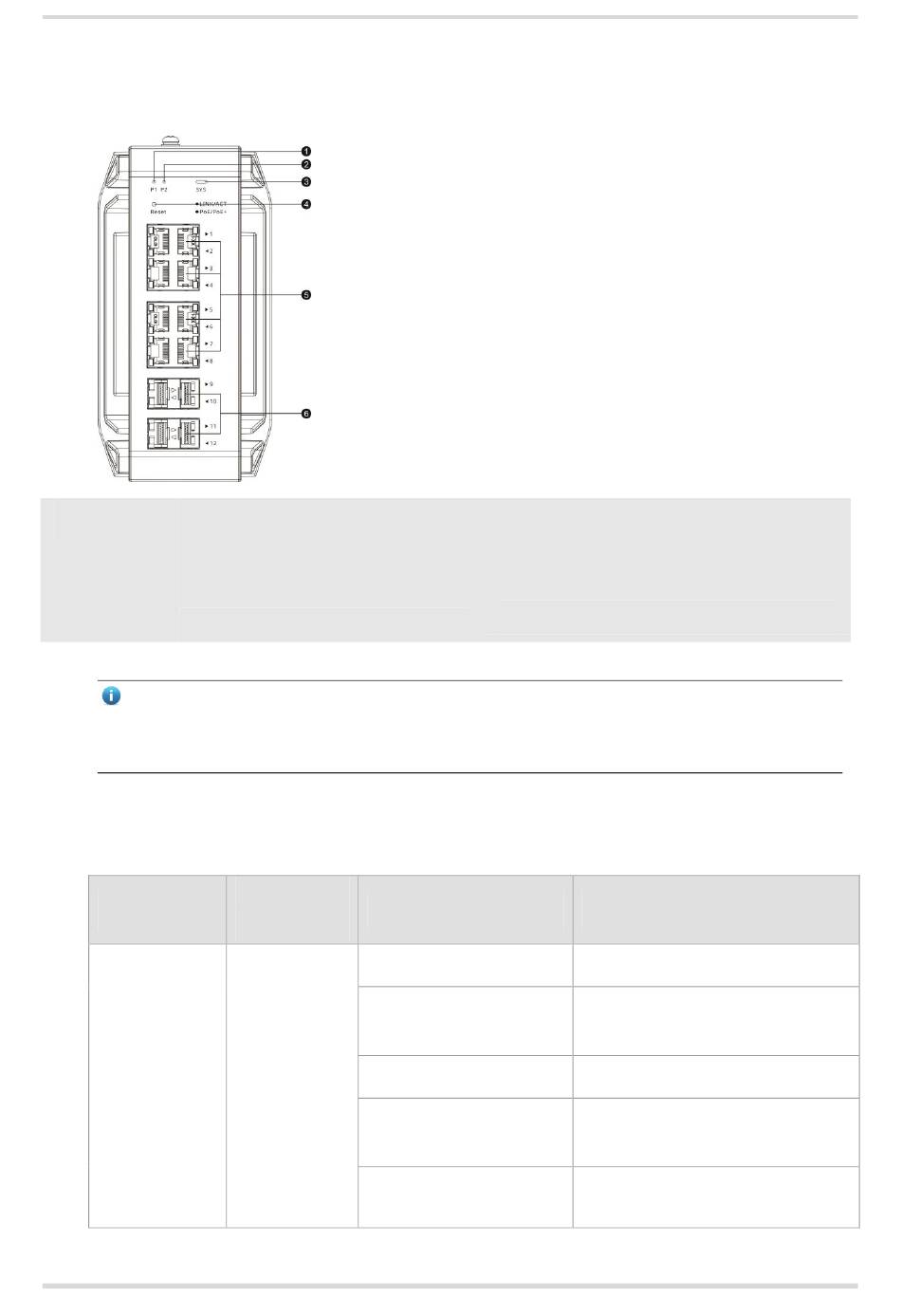

Figure 1-2 Front Panel of RG-NIS3100-8GT4SFP-HP
Note 1. Power status LED P1
2. Power status LED P2
3. System status LED
4. Reset button
Information
Reset button: Press and hold the button for less than 2 seconds to restart the system. Press and hold the button
for over 5 seconds until the system status LED starts blinking to restore factory settings and restart the system.
2. LEDs
LED
System
status LED
Silkscreen
Status
Label
Off
Fast blinking green
(8–10 Hz)
Solid green
SYS
Slow blinking green
(0.5 Hz)
Blinking green (2 Hz)
5. 10/100/1000BASE-T Ethernet ports with
auto-negotiation
6. GE SFP ports
Description
The switch is not powered on.
The switch is starting.
The switch is running properly.
The switch is not connected to the
cloud.
The switch is restoring factory
settings and will be powered off or
