RG-NIS3100 Series Switches Hardware Installation and Reference Guide
Electrical
port and
optical port
LEDs
Power
status LEDs
3. Top Panel

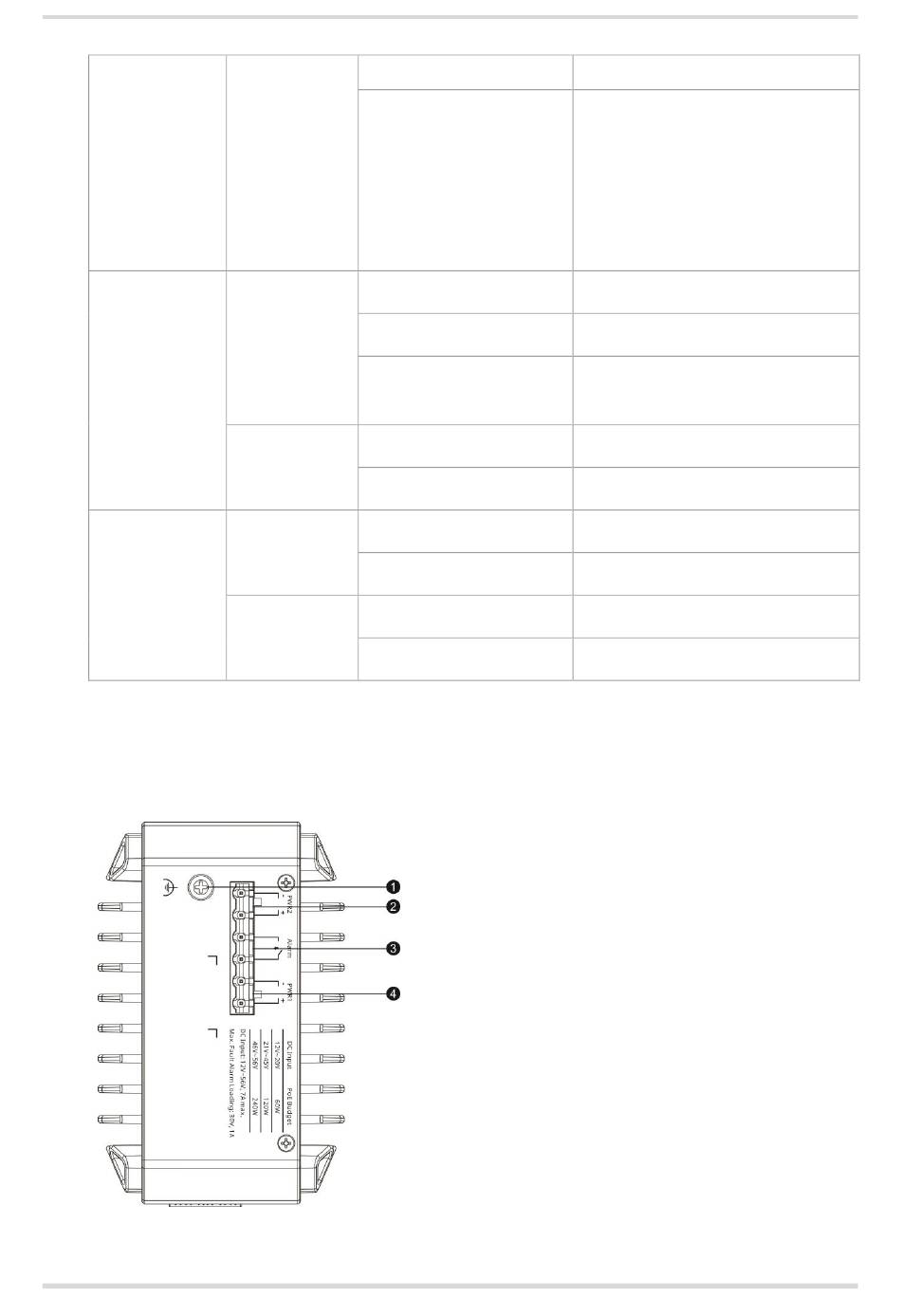

Figure 1-3 Top Panel of NIS3100-8GT4SFP-HP
Irregular blinking green
(cycle: 1s on and 1s off,
0.25s on and 0.25s off,
0.25s on and 0.25s off,
0.25s on and 1.75s off)
Note: *On-Off R cycle
Off
Solid green
LINK/ACT
Blinking green
Off
PoE/PoE+
Solid yellow
Off
P1
Solid on
Off
P2
Solid on
is upgrading.
The main program is lost or
damaged, or specific functions are
abnormal.
The port is Down.
The port is Up.
The port is Up and is receiving or
sending data.
PoE power supply is off.
PoE power supply is on.
PWR1 power supply is off.
PWR1 power supply is on.
PWR2 power supply is off.
PWR2 power supply is on.
