Mounting the Switch on a Wall

You can use the mounting brackets delivered with the RG-NIS3100 series switch to mount the switch on a wall.
The installation procedure is as follows:

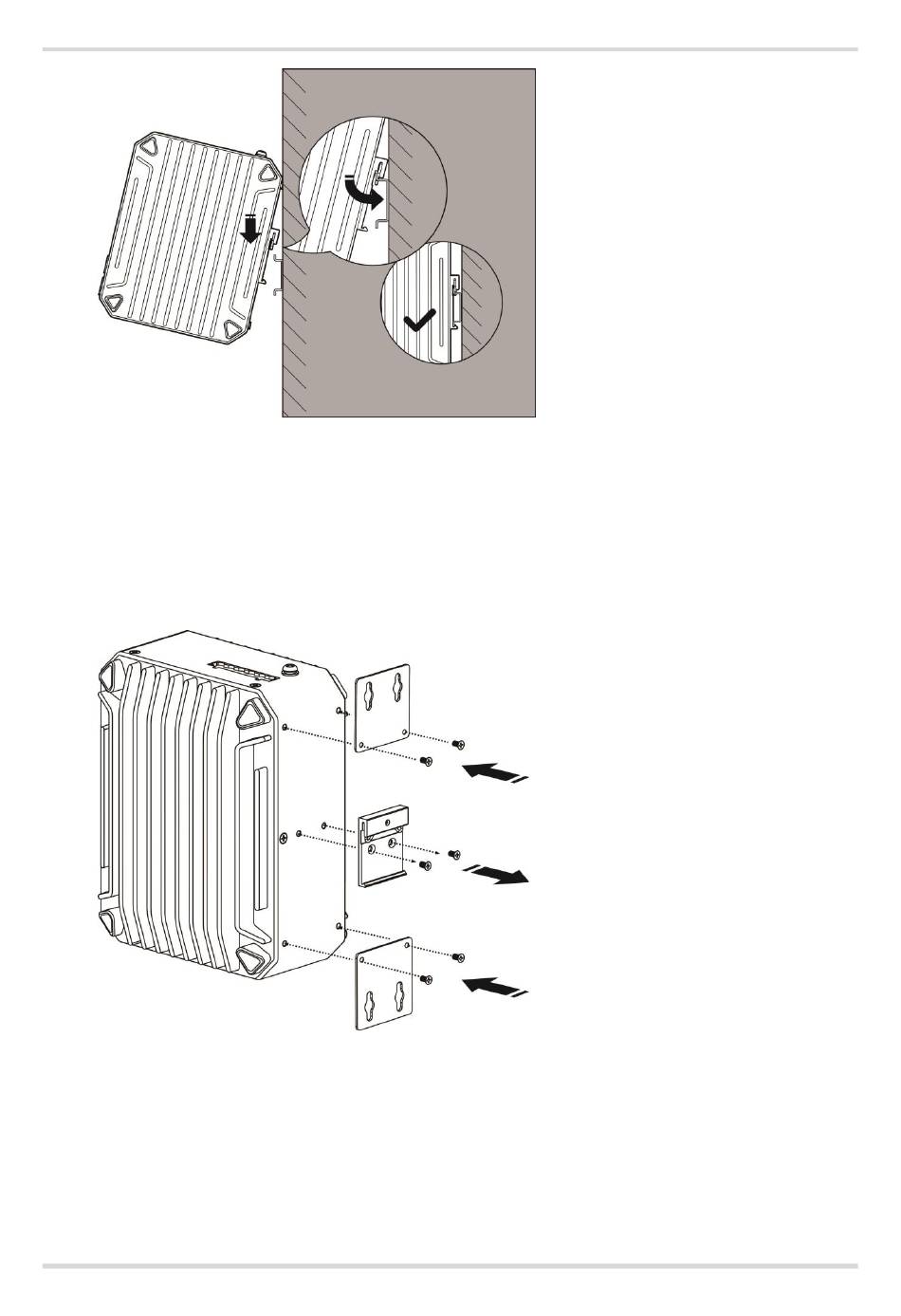

Step 1: Remove the DIN rail clamp and screws from the switch, and install the mounting brackets on the switch,
as shown in Figure 3-3.
Figure 3-3
Step 2: Use four expansion screws to secure the switch on a wall, as shown in Figure 3-4.
DIN Rail Mounting Step 2
Mounting Bracket Installation Step 1
