RG-NIS3100 Series Switches Hardware Installation and Reference Guide

Connect the power cords of different colors to the corresponding cable terminals.

Ensure that the connector of the power cord is properly seated in the power connector of the switch. After
plugging the power cord on the device, secure the power cord with a power cord retention clip.

Do not place anything on the top of the switch.

Maintain a minimum clearance of 100 mm (3.94 in.) around the device to ensure proper ventilation. Do not
stack switches.

Keep the switch away from high-power radio transmitters, radar transmitters, and high-frequency
high-current devices. Take electromagnetic shielding measures to minimize interference when necessary,
for example, use shielded interface cables.

Keep network cables with a length within 100 m (328.08 feet) indoors. Take lightning protection measures if
they need to be routed outdoors.
3.3.1

Mounting the Switch on a DIN Rail

The RG-NIS3100 series switch supports DIN rail mounting. The installation procedure is as follows:

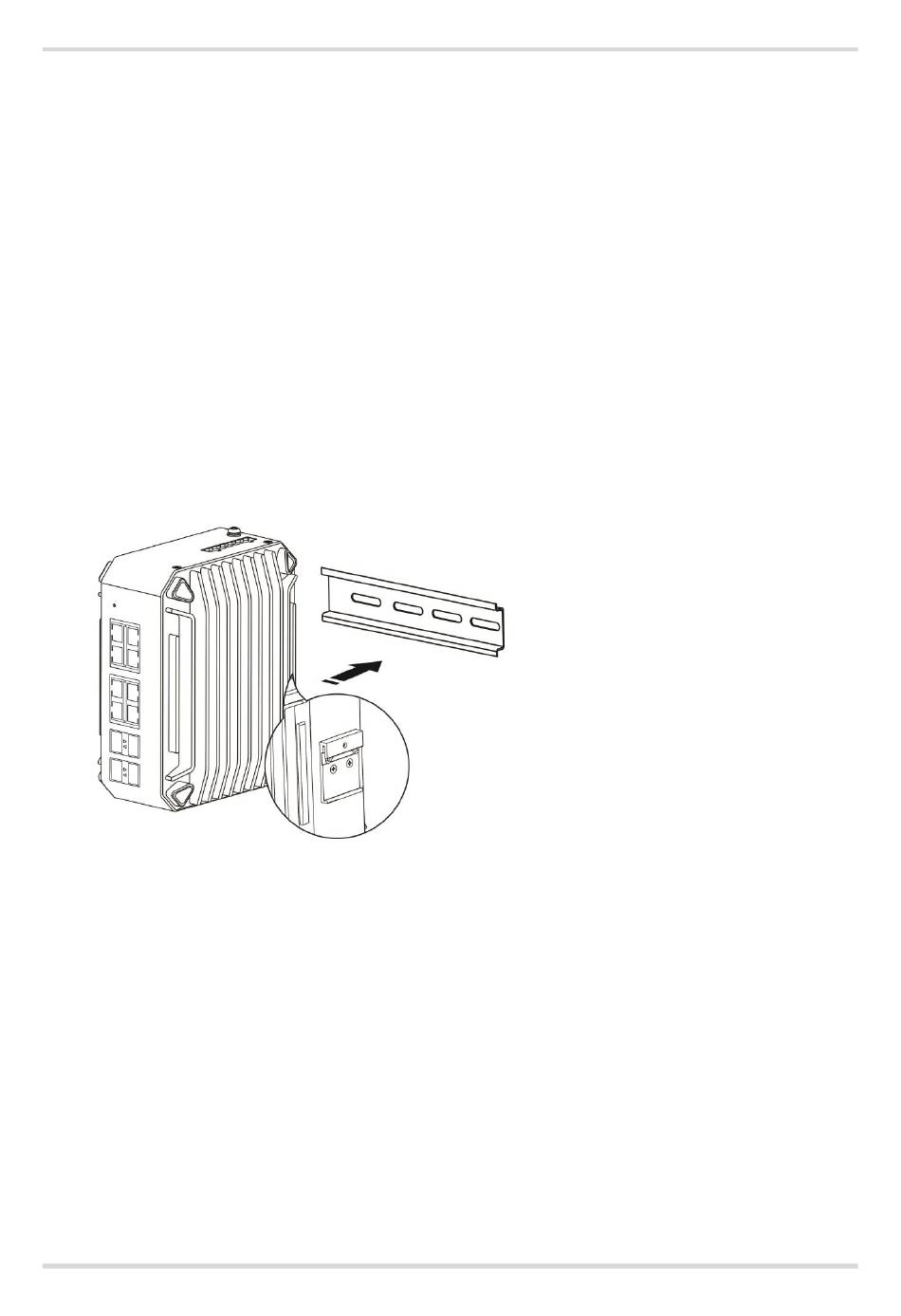

Step 1: Move the device to make the network port face outward and align the DIN rail clamp with the DIN rail, as
shown in Figure 3-1.
Figure 3-1
Step 2: Snap the top part of the DIN rail clamp on the DIN rail, and then push the device inward until it is
completely seated on the rail, as shown in Figure 3-2.
DIN Rail Mounting Step 1
32
Product Installation
