3-7. Operation Mode/Status Description

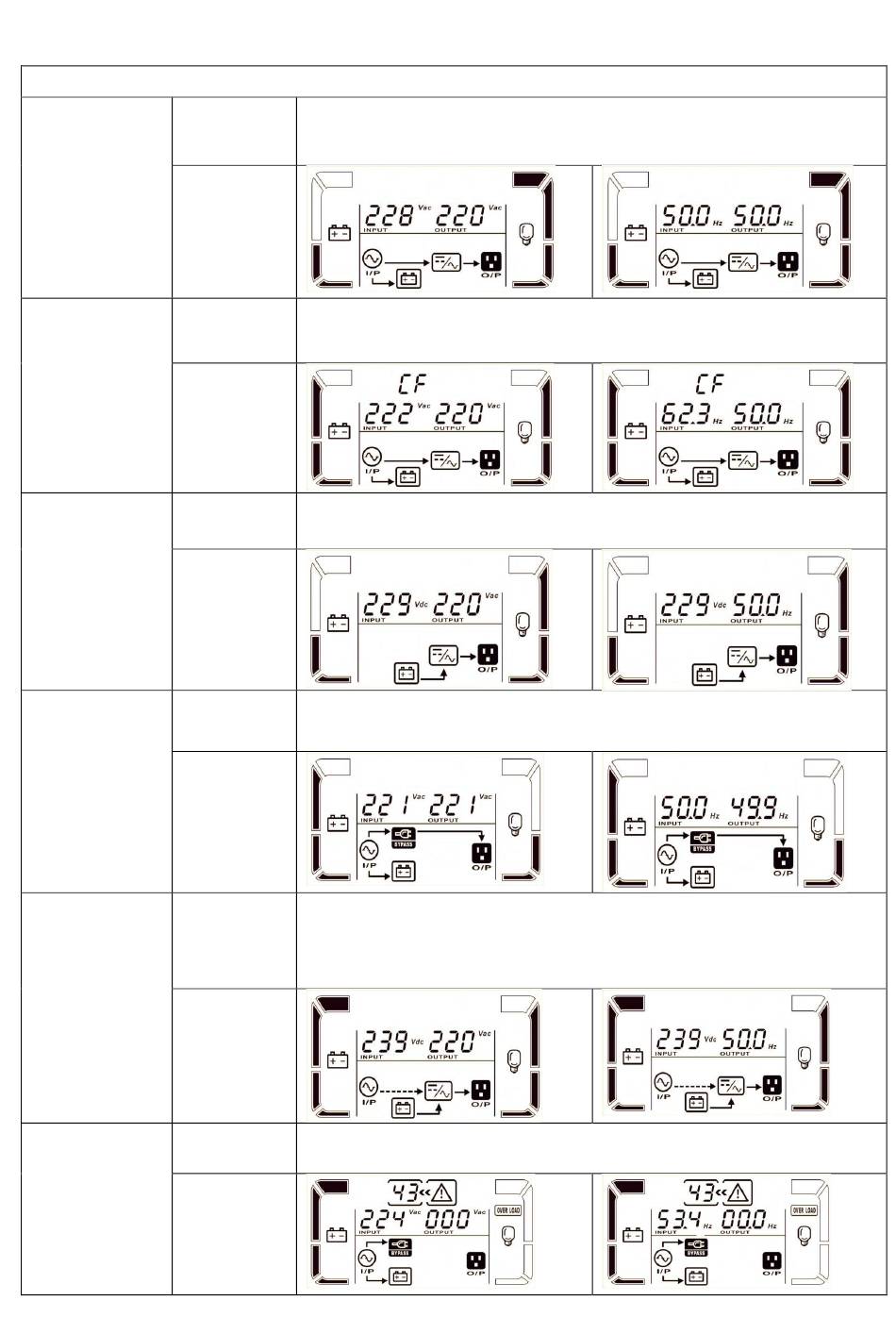

Operation Mode/status
Mode AC
Mode CVCF
Battery Mode
Mode Bypass
Battery Test
Error Status
When the input voltage is within an acceptable range, the UPS will provide
pure and stable AC power to the output. The UPS will also charge the
Information
battery in AC mode.
LCD Display
When the input frequency is in the range of 46 to 64Hz, the UPS can be set
Information at a constant output frequency, 50 Hz or 60 Hz. The UPS will still charge
the battery in this mode.
LCD Display
When the input voltage is outside the acceptable range or
Information The power goes out, the UPS will back up power from the battery and the
alarm will beeps every 4 seconds.
LCD Display
When the input voltage is within the acceptable range and bypass is
enabled, turn off the UPS and the UPS will enter Bypass mode. Alarms
Information
sound every two minutes.
LCD Display
When the UPS is in AC mode or CVCF mode, press the "Test" button for
more than 1 second. Then the UPS will beep once and start the "Battery
Information
Test". The line between the I/P icon and the inverter will flash to alert the
user. This operation is used to check the battery status.
LCD Display
When the UPS encounters an error, it will display an error message on the
Information LCD panel.
LCD Display
