12 Reserved
13 Calibrate battery voltage
14 Reserved
15 Inverter voltage calibration
16 Floating charger voltage regulation
17 Constant charger voltage adjustment
18 Charger maximum current setting
19 Battery group and capacity settings
20 Calibrate backup time
*Y means that this program can be set in this mode.
l

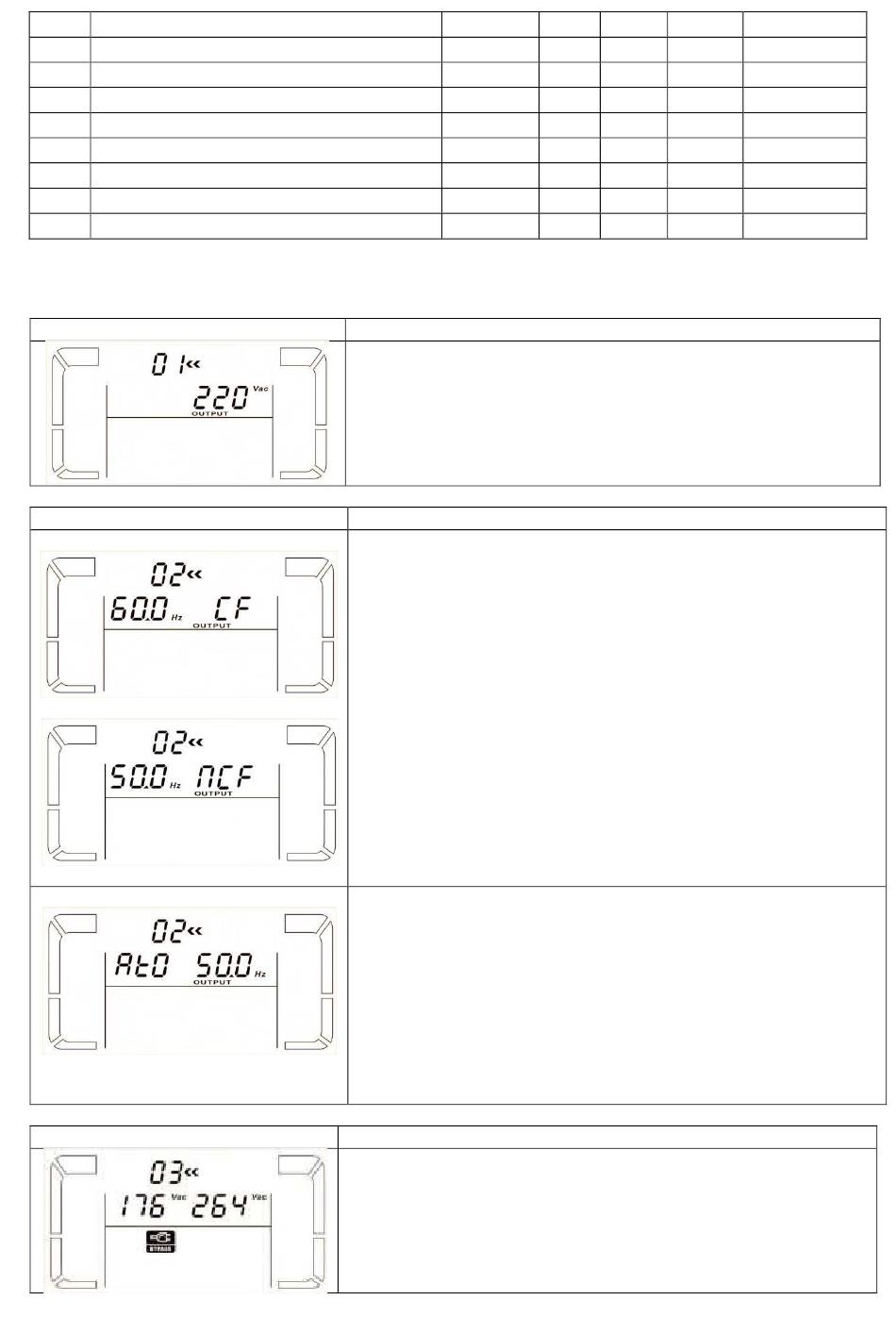

01: Output voltage regulation
Interface
l
02: Output Frequency
Interface
60 Hz, CVCF mode
50 Hz, Normal mode
ATO
l
03: Voltage range for bypass
Interface
Y
Y
Y
Y
Y
Y
Settings
Parameter 3: Output Voltage
You can select the following output voltage in parameter 3:
208: presents an output voltage of 208Vac
220: presents an output voltage of 220Vac
230: presenting output voltage 230Vac
240: presenting output voltage 240Vac
Settings
Parameter 2: Output Frequency
Set the output frequency. You can select the following three options
in parameter 2:
50.0Hz : Set the output frequency to 50.0Hz.
60.0Hz : Setting the output frequency to 60.0Hz.
ATO : If selected, the output frequency will be decided according to
the latest normal utility frequency. If from 46Hz to 54Hz, the output
frequency will be 50.0Hz. If from 56Hz to 64Hz, the output
frequency will be 60.0Hz. ATO is the default setting.
Parameter 3: Frequency Mode
Set the output frequency in CVCF mode or non-CVCF mode. You can
select the following two options in parameter 3:
CF: Sets the UPS to CVCF mode. If selected, the output frequency
will be set at 50Hz or 60Hz according to the settings in parameter 2.
The input frequency can be from 46Hz to 64Hz.
NCF: Set the UPS to normal mode (non-CVCF mode). If selected, the
output frequency will be synchronized with the input frequency
~
within 46 54 Hz at 50Hz or within 56
the settings in parameter 2. If 50Hz is selected in parameter 2, the
UPS will switch to battery mode when the input frequency is not
~
within 46 54 Hz. If 60Hz is selected in parameter 2, the UPS will
switch to battery mode when the input frequency is not within 56
Hz.
*If Parameter 2 is ATO, Parameter 3 will indicate the current
frequency.
Settings
Parameter 2: Set the acceptable low voltage for the bypass. The
setting range is from 110V to 209V and the default value is 110V.
Parameter 3: Set the acceptable high voltage for the bypass. The
setting range is from 231V to 276V and the default value is 264V.
13
Y Y Y
Y Y Y
Y Y Y
Y Y Y
Y Y Y
Y Y Y
Y Y Y
~
64 Hz at 60Hz according to
Y
Y
Y
Y
Y
Y
~
64
