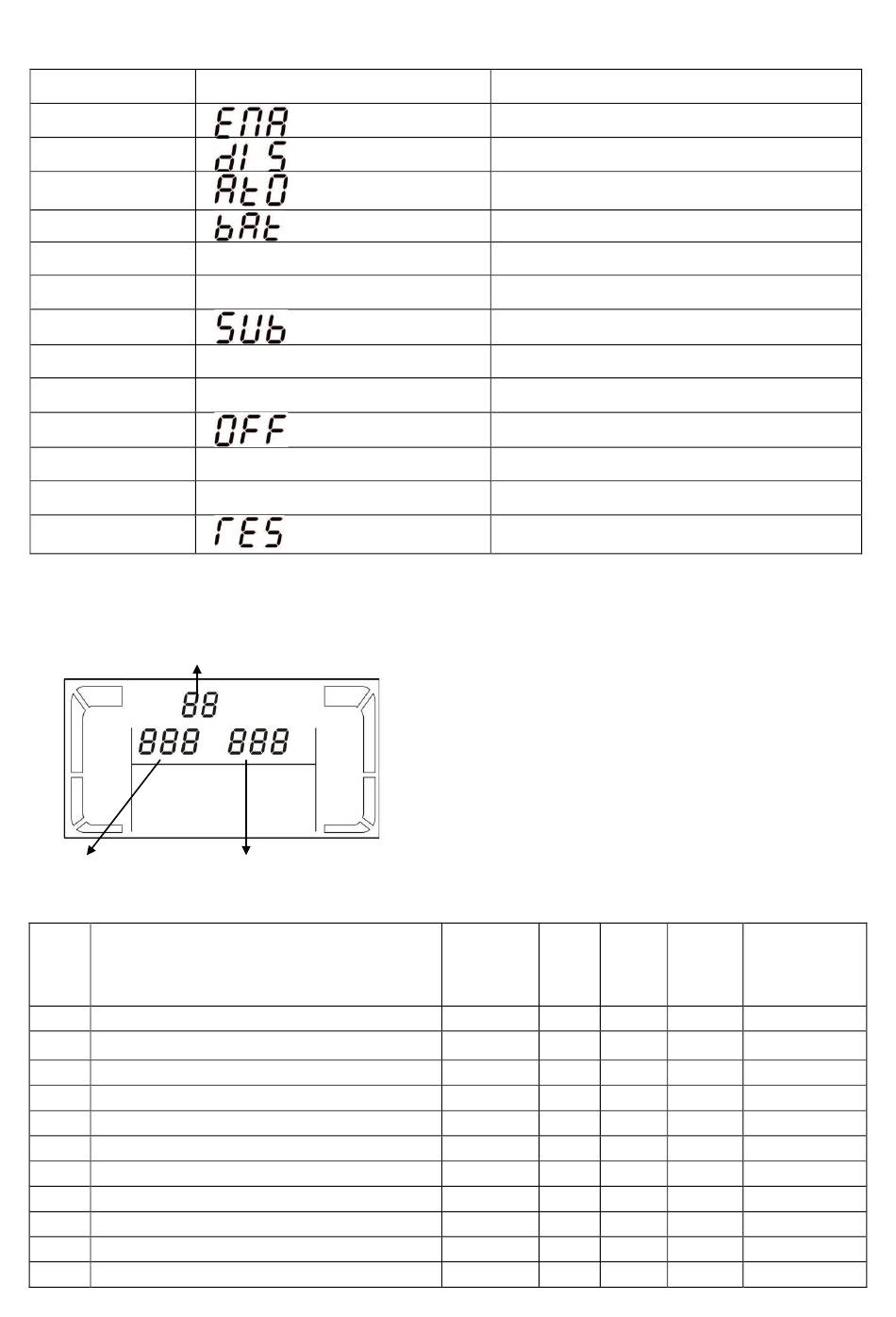

3-5. LCD display index

Abbreviation
ENA
DIS
ATO
.BAT
NCF
CF
SUB
ADD
ON
OFF
FBD
OPN
RES

3-6. LCD Settings

There are three parameters for setting up a UPS. Refer to the diagram.
Parameter 1
Parameter 2 Parameter 3
List of available programs for parameter 1:
Code Information
01 Output voltage
02 Output frequency
03 Voltage range for cutting
04 Frequency range for cutting
05 Reserved
06 Reserved
07 Reserved
08 Shortcut mode settings
09 09 Maximum battery discharge timing
10 Reserved
11 Reserved
Show content Meaning
Enable
Disable
Auto
Battery
Normal mode mode (not CVCF mode)
Mode CVCF
Subtract
Add
On
Off
Not allowed
Allowed
In the message
Parameter 1: This is for alternative programs. See the
table below
Parameter 2 and parameter 3 are setting options or
values for each program.
Note: Please select "Up" or "Down" button to change
programs or parameters.
Bypass Air CVCF
cond
itioni
ng
Y
Y
Y
Y
Y Y
Y Y
12
Battery Battery Test
Y Y Y
