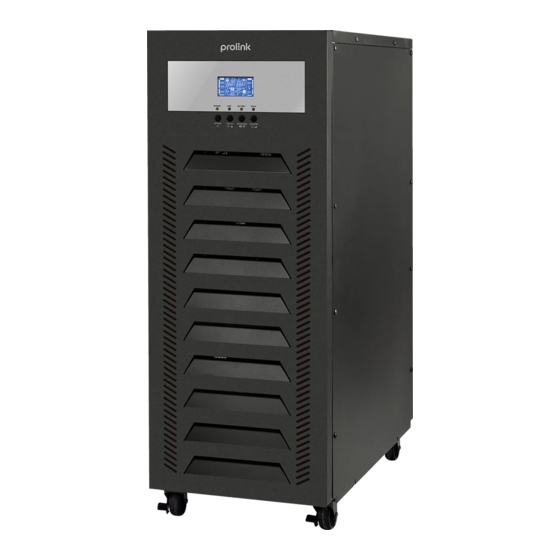

PROLiNK Giant PRO600-S/L User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Giant Series (1P/1P)
Tower Type
PRO600-S/L
6-10KVA
Version 1.00
(English )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Giant PRO600-S/L and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK Giant PRO600-S/L

Summary of Contents for PROLiNK Giant PRO600-S/L

  • Page 1 User Guide Giant Series (1P/1P) Tower Type PRO600-S/L 6-10KVA Version 1.00 (English )

  • Page 2: Table Of Contents

    Table of Contents 1. INTRODUCTION .......................... 1 1-1 . Overview ........................... 1 1-2. Basic structure ........................1 1-3. Working mode ........................1 2. SAFETY AND EMC INSTRUCTIONS ..................3 2-1. Transportation and Storage ................... 3 2-2. Preparation ........................3 2-3. Installation ........................3 2-4.

  • Page 3: Introduction

    1. INTRODUCTION 1-1 . Overview This UPS series is a double conversion system with sine wave output. It supplies continuous, stable, clean power for commercial and industrial environments. When the utility is lost accidentally, the UPS system will use the power from battery to output without interruption.
  • Page 4 1-3-2. Battery mode When the utility fails, the UPS will transfer to battery mode without interruption. The UPS converts the power from battery to output. At this time, static bypass is still in standby. If the utility is recovered, the UPS will transfer back to line mode again.

  • Page 5: Safety And Emc Instructions

    2. SAFETY AND EMC INSTRUCTIONS Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 2-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact. The UPS must be stored in the room where it is ventilated and dry.

  • Page 6: Operation

    2-4. Operation Do not disconnect the earth conductor cable on the UPS or the building wiring terminals in any time since this would cancel the protective earth of the UPS system and of all connected loads. The UPS system features its own, internal current source (batteries). The UPS output sockets or output terminal blocks may be electrically live even if the UPS system is not connected to the building wiring outlet.

  • Page 7: Installation And Operation

    3. INSTALLATION AND OPERATION There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type PRO606-S Standard PRO606-L Long Run Model Model PRO608-S PRO608-L PRO610-S PRO610-L 3-1. Unpacking and Inspection Unpack the package and check the package contents.

  • Page 8: Ups Installation

    Diagram 3: Input/Output Terminal Intelligent slot 2. External battery connector 3. RS-232 communication port 4. Dry contact port 5. USB communication port 6. Emergency power off function connector (EPO connector) 7. Maintenance bypass switch (option) 8. Output Breaker 9. Bypass Breaker 10.
  • Page 9 Ring terminals Input/Bypass/Output/GND D (mm) L (mm) Torque (Nm) 1.4~1.6 NOTE 1: It is recommended to use suitable wire in above table or thicker for safety and efficiency. NOTE 2: The selections for color of wires should be followed by the local electrical laws and regulations. NOTE 3: Use the attachment battery cable 5) Remove the terminal block cover on the rear panel of UPS.

  • Page 10: Communication

    Warning: ● For standard external battery pack, there is one DC breaker to disconnect the battery pack and the UPS. But for other branded external battery pack, make sure a DC breaker or other protection device between UPS and external battery pack is installed. If not, please install it carefully. Switch off the battery breaker before installation.
  • Page 11 The output dry contacts only provide two passive statuses: short and open. It’s necessary to connect external power source to trigger this function. The detailed electrical parameters of contacts are listed as below: Parameters Typical Maximum Unit Relay dc voltage Relay dc current Application: DB9 type...

  • Page 12: Operation

    4. OPERATION 4-1. Button Operation Button Function Ø Turn on the UPS: Press and hold the button more than 1s to turn on the UPS. ON/Enter Button Ø Enter Key: Press this button to confirm the selection in setting menu. Ø...
  • Page 13 LCD Panel: Display Function Backup time information Indicates the backup time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning or fault occurs. Indicates the fault codes or the warning codes, and the codes are listed in details in section 4-8/4-9.

  • Page 14: Audible Alarm

    Battery information Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 4-3.
  • Page 15 2. Turn on the UPS without utility power supply (in Battery mode) 1) Make sure that the breaker of the battery pack is at “ON” position (only for long-run model). 2) Press and hold the “ON” button for 1s to turn on the UPS, and the buzzer will beep once. 3) A few seconds later, the UPS will be turned on and enter to Battery mode.
  • Page 16 NOTE 1: If the UPS has been set to enable the bypass output, it will bypass voltage from utility power to output sockets and terminal even though you have turned off the UPS (inverter). NOTE 2: After turning off the UPS, please be aware that the UPS is working at Bypass mode and there is risk of power loss for connected devices.

  • Page 17: Abbreviation Meaning In Lcd Display

    4-5. Abbreviation Meaning in LCD Display Abbreviation Display content Meaning Enable Disable Auto Battery Normal mode (not CVCF mode) CVCF mode Subtract Not allowed Allow Reserved Tubular lead-acid battery Maintenance-free battery 4-6. LCD Setting Parameter 1 There are three parameters to set up the UPS. Refer to following diagram.
  • Page 18 Programs available list for parameter 1: Code Description Bypass CVCF Battery Battery Test Output voltage Output frequency Voltage range for bypass Frequency range for bypass Reserved Reserved Reserved Bypass mode setting Battery maximum discharge time setting Reserved Reserved Reserved for future option Reserved Battery voltage calibration Reserved...
  • Page 19 *If Parameter 2 is ATO, the Parameter 3 will show the current frequency. 03: Voltage range for bypass Interface Setting Parameter 2: Set the acceptable low voltage for bypass. For 16PCS battery UPS：Setting range is from 165V to 209V and the default value is 165V.
  • Page 20 08: Bypass mode setting Interface Setting Parameter 2: OPN: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. FBD: Bypass not allowed. When selected, it’s not allowed for running in Bypass mode under any situations. Parameter 3: ENA: Bypass enabled.
  • Page 21 13: Battery voltage calibration Interface Setting Parameter 2: Select “Add” or “Sub” function to calibrate battery voltage to real figure. Parameter 3: The voltage setting range is from 0V to 5.7V. The default value is 0V. 14: Reserved Interface Setting Reserved 15: Inverter voltage calibration Interface...

  • Page 22: Operating Mode/Status Description

    18: Maximum charger current setting Interface Setting Parameter 3: The maximum charging current could be adjusted. Default value is 8A for long run model and 2A for standard model. The available options are 2A, 4A and 8A. 19: Battery capacity and groups setting Interface Setting Parameter 2:...

  • Page 23: Fault Code

    LCD display When input voltage is within acceptable range and bypass is enabled, Description turn off the UPS and it will enter Bypass mode. Alarm beeps every two minutes. Bypass mode LCD display When UPS is in AC mode or CVCF mode, press “Test” key for more than 1s.

  • Page 24: Warning Indicator

    4-9. Warning Indicator Warning Icon (flashing) Alarm Warning Code Battery unconnected Beeping every second Over charge Beeping every second Battery low Beeping every second Overload Beeping twice every second EPO enable Beeping every second Over temperature Beeping every second Charger failure Beeping every second Overload 3 times in 30min Beeping every second...

  • Page 25: Trouble Shooting

    5. TROUBLE SHOOTING If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well.

  • Page 26: Storage And Maintenance

    6. STORAGE AND MAINTENANCE 6-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months...

  • Page 27: Specifications

    7. SPECIFICATIONS MODEL PRO606-S/L PRO608-S/L PRO610-S/L CAPACITY* 6000 VA / 4800 W 7500 VA / 6000 W 10000 VA / 8000 W INPUT 165 VAC ± 3 % @ battery number is 16PCS Low Line Loss 185 VAC ± 3 % @ battery number is 18PCS Voltage 175 VAC ±...
  • Page 28 Note: Closed on Saturdays, Sundays and local/regional Public Holidays. Register online for your Product Warranty at www.prolink2u.com Prolink is a registered trademark of Fida International (S) Pte Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Product images are purely for illustrative purposes and may defer from the actual product.
