PROLiNK Professional II+ Series User Manual page 10

Sail

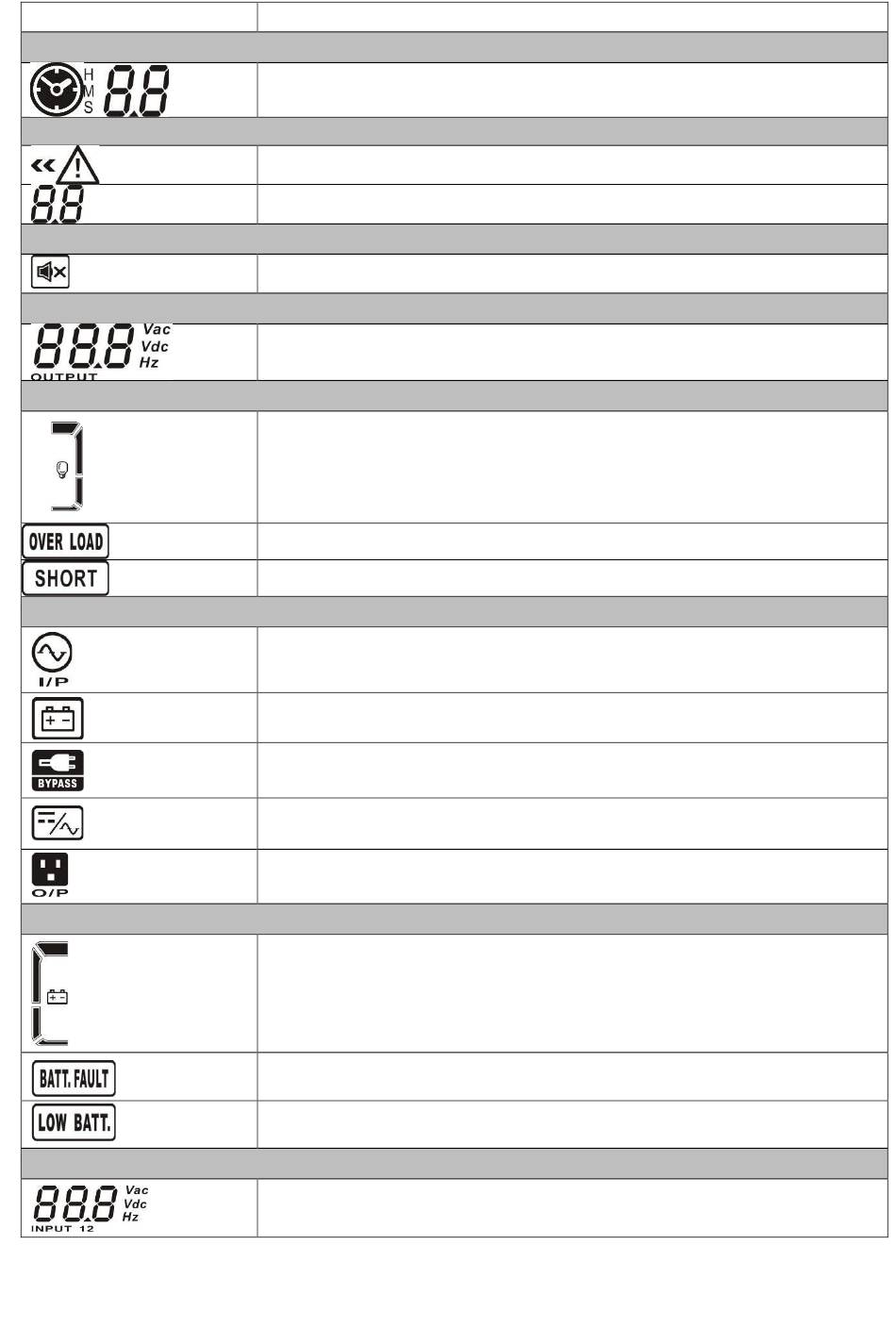

Backup time information
Error information
Operation of turning off the alarm
Battery voltage output & input information
Load Information
Operating mode information
Battery information
Input &; Battery voltage information
Function
Battery discharge time in numbers
H: Hours, M: minutes, S: seconds
Indicates a warning that an error has occurred.
Indicating the error code, it is listed in detail in sections 3-9.
Indicates that the UPS alarm is disabled.
Vac: Indicates output voltage, Vdc: battery voltage, Hz:
Frequency.
Shows load levels of 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates the load or output of the short circuit UPS.
Indicates the UPS is connected to the mains.
Indicates the battery is working.
Indicates the bypass is working.
Indicates the inverter circuit is working.
Indicates the output works.
Shows battery capacity 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates battery is not connected or damaged
Indicates low battery level and low battery voltage.
Indicates the input voltage or frequency or voltage of the battery.
Vac: Input voltage, Vdc: battery voltage, Hz: input frequency.
