- Page 1 ONLINE UPS User Manual MASTER II SERIES (1P/1P) – RACK/TOWER PRO800-QRS/QRL 6KVA/10KVA Version 1.00 (English)
-
Page 2: Table Of Contents
Table of Contents 1. SAFETY AND EMC INSTRUCTIONS ....................1 1-1. T ....................... 1 RANSPORTATION AND TORAGE 1-2. P ............................1 REPARATION 1-3. I ............................1 NSTALLATION 1-4........................ 2 ONNECTION ARNINGS 1-5. O ............................3 PERATION 1-6. S ............................3 TANDARDS 2. -
Page 3: Safety And Emc Instructions
1. Safety and EMC instructions Please read carefully the following user manual and the safety instructions before installing the unit or using the unit! 1-1. Transportation and Storage Please transport the UPS system only in the original package to protect against shock and impact. -
Page 4: Connection Warnings
1-4. Connection Warnings • In accordance with safety standard EN-IEC 62040-1, installation has to be provided with a《Backfeed Protection》 system, as for example a contactor, which will prevent the appearance of voltage or dangerous energy in the input mains during a mains fault. There is no standard backfeed protection inside of the UPS. -
Page 5: Operation
• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide. -
Page 6: Installation And Operation
2. Installation and Operation There are two different types of online UPS: standard and long-run models. Please refer to the following model table. Model Type Model Type 6K/6KRT 6KL/6KRTL standard model Long-run model 10K/10KRT 10KL/10KRTL We also offer optional parallel function for these two types by request. The UPS with parallel function is called as “Parallel model”. -
Page 7: Rear Panel View
2-2. Rear Panel View RT Model Diagram 1: UPS Rear Panel Diagram 2: 2U battery pack Diagram 3: 3U battery pack 1) Share current port (only available for parallel model) 2) Parallel port (only available for parallel model) 3) External battery connector 4) Intelligent slot 5) RS-232 communication port 6) USB communication port... -
Page 8: Rack /Tower Installation

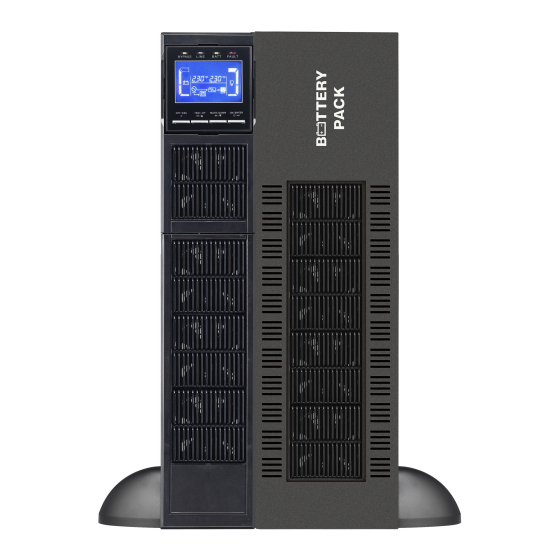

2-3. Rack/Tower Installation (only for RT model) 2-3-1 Tower Installation The UPS system is shipped with two sets of feet and 6 extensions (2 short extensions plus 4 long extensions) that can be used to tower install the UPS module in 2U or UPS module with one battery bank in 4U. Install UPS module in 2U Assemble two feet and one short extension as one tower stand shown in step 1. -
Page 9: Single Ups Installation
2-3-2 Rack Installation Please follow below steps to mount UPS into 19” rack or rack enclosure. Step 1: Attach mounting ears to the side mounting Chart 1 holes of UPS using the screws provided and the ears should face forward. Please refer to chart 1. Step 2: Lift the UPS module and slide it into rack Chart 2 enclosure. - Page 10 regulations. Remove the terminal block cover on the rear panel of UPS. Then connect the wires according to the following terminal block diagrams: (Connect the earth wire first when making wire connection. Disconnect the earth wire last when making wire disconnection!) Input Neutral Output Line Input Line...
-
Page 11: Ups Installation For Parallel System
● Pay highly attention to the polarity marking on external battery terminal block, and make sure the correct battery polarity is connected. Wrong connection may cause permanent damage of the UPS. ● Make sure the protective earth ground wiring is correct. The wire current spec, color, position, connection and conductance reliability should be checked carefully. - Page 12 Diagram 2: Wiring diagram of parallel system for tower model Diagram 3: Power cable connection for RT model Diagram 4: Wiring diagram of parallel system for RT model...
-
Page 13: Software Installation
2-6. Software Installation For optimal computer system protection, install UPS monitoring software to fully configure UPS shutdown. -
Page 14: Operations
3. Operations 3-1. Button Operation Button Function Turn on the UPS: Press and hold the button more than 0.5s to turn on the UPS. ON/Enter Button Enter Key: Press this button to confirm the selection in setting menu. ... - Page 15 LCD Panel: Display Function Backup time information Indicates battery discharge time in numbers. H: hours, M: minutes, S: seconds Fault information Indicates that the warning and fault occurs. Indicates the fault codes, and the codes are listed in details in section 3-9. Mute operation Indicates that the UPS alarm is disabled.
-
Page 16: Audible Alarm
Indicates the Battery capacity by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is not connected. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3-3. - Page 17 3-4-3. Connect devices to UPS After the UPS is turned on, you can connect devices to the UPS. 1) Turn on the UPS first and then switch on the devices one by one, the LCD panel will display total load level. 2) If it is necessary to connect the inductive loads such as a printer, the in-rush current should be calculated carefully to see if it meets the capacity of the UPS, because the power consumption of this kind of loads is too big.
- Page 18 Battery mode except that the battery LED is flashing. 3-4-7. Turn off the UPS with utility power supply in AC mode 1) Turn off the inverter of the UPS by pressing “OFF” button for at least 0.5s, and then the buzzer will beep once.
-
Page 19: Parallel Operation
5) For example, you want to have charging current in 4A, but in fact, the charging current is measured only 3.7A. Then, you need to select “+” and change the number to 4 in parameter 3. It means the setting charging current will be added 0.3A as output charging current. Then, confirm this modification by pressing “ON/Enter”... - Page 20 3-5-4. Add one new unit into the parallel system 1) You can not add one new unit into the parallel system when whole system is running. You must cut off the load and shutdown the system. 2) Make sure all of the UPS are the parallel models, and follow the wiring refer to section 2-4. 3) Install the new parallel system refers to the previous section.
-
Page 21: Abbreviation Meaning In Lcd Display
3-6. Abbreviation Meaning in LCD Display Abbreviation Display content Meaning Enable Disable Auto Battery Normal mode (not CVCF mode) CVCF mode Subtract Not allowed Allow Reserved OP.V Output voltage Parallel 3-7. LCD Setting There are three parameters to set up the UPS. Refer to following diagram. Parameter 1 Parameter 1: It’s for program alternatives. - Page 22 ECO mode frequency range setting Bypass mode setting Battery backup time setting Reserved Reserved for future Reserved Reserved for future Hot standby function enable/disable Battery voltage adjustment Charger voltage adjustment Inverter voltage adjustment Output voltage calibration Charging current setting *Y means that this program can be set in this mode. Note: All parameter settings will be saved only when UPS shuts down normally with internal or external battery connection.
- Page 23 on the bypass output. If you need to remove the pulse on this mode to protect your load better, you could contact the dealer for help. For the UPS with parallel function, this pulse situation won’t happen. 03: Voltage range for bypass ...
- Page 24 08: Bypass mode setting Interface Setting Parameter 2: OPN: Bypass allowed. When selected, UPS will run at Bypass mode depending on bypass enabled/disabled setting. FBD: Bypass not allowed. When selected, it’s not allowed for running in Bypass mode under any situations. Parameter 3: ENA: Bypass enabled.
- Page 25 13: Battery voltage adjustment Interface Setting Parameter 2: Select “Add” or “Sub” function to adjust battery voltage to real figure. Parameter 3: the voltage range is from 0V to 5.7V, the default value is 0V. 14: Charger voltage adjustment ...
-
Page 26: Operating Mode/Status Description
17: Charging current setting Interface Setting Parameter 2: Set the charging current of the charger at 1A, 2A, 3A or 4A (001 ~ 004). Parameter 3: Calibrate the charging current. If there is deviation between setting current and real measured current, please use this parameter to calibrate the charging current. - Page 27 CVCF mode Description When input frequency is within 46 to 64Hz, the UPS can be set at a constant output frequency, 50 Hz or 60 Hz. The UPS will still charge battery under this mode. LCD display Battery mode Description When the input voltage is beyond the acceptable range or power failure, UPS will backup power from battery and alarm will beep every 4 seconds.
-
Page 28: Fault Code
3-9. Fault Code Fault event Fault code Icon Fault event Fault code Icon Bus start failure None Battery SCR short circuited None Bus over None Inverter relay short circuited None Bus under None Charger short circuited None Bus unbalance None Can communication fault None Inverter soft start failure... -
Page 29: Trouble Shooting
4. Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below. Symptom Possible cause Remedy No indication and alarm in the front The AC input power is not Check if input cable firmly display panel even though the mains is connected well. -
Page 30: Storage And Maintenance
5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months... -
Page 31: Specifications
6. Specifications MODEL 6KRT 6KRTL 10KRT 10KRTL CAPACITY* 6000 VA / 6000 W 10000 VA / 10000 W INPUT 110 VAC(L-N) ± 3 % at 0-60% Load Low Line Loss 176 VAC(L-N) ± 3 % at 60%-100% Load Voltage Range Low Line Comeback Low Line Loss Voltage + 10V High Line Loss... - Page 32 Register Online For Your Product Warranty @ www.prolink2u.com/register PROLiNK® is a trademark of FIDA INTERNATIONAL (S) PTE LTD and is manufactured under its authority. All other brands, products, services, logos and company names mentioned herein are trademarks of their respective owners.
