PROLiNK Master II Series User Manual page 31

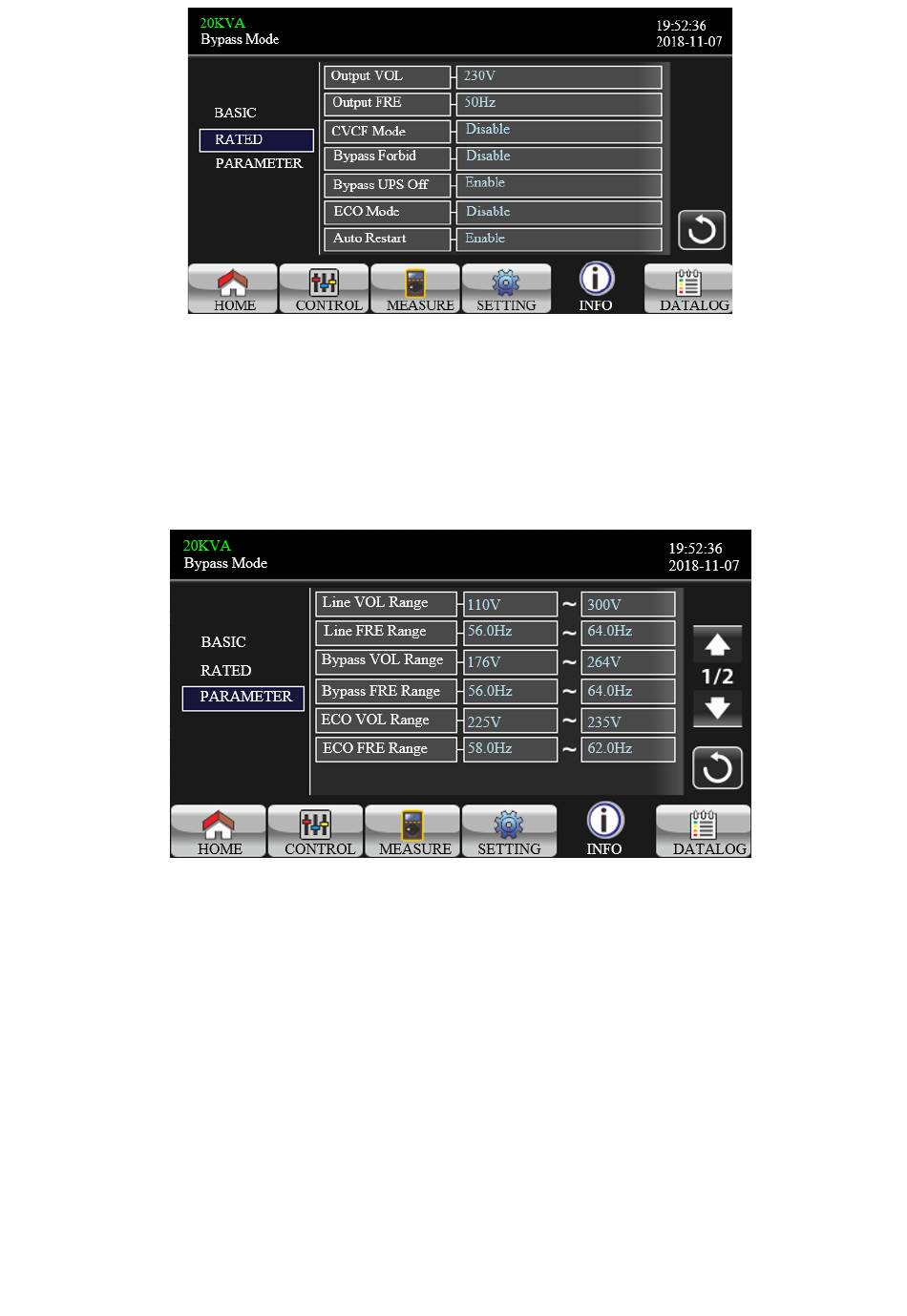

Ranking Information Page
Assessed Information
Ø Output VOL: This indicates the rated voltage of the output.
Ø Output FRE: This indicates the rated frequency of the output.
Ø CVCF Mode: Enables/Disables CVCF mode.
Ø Forbid Bypass: Enables/disables the bypass function.
Ø Bypass UPS Off: Enables/disables the automatic bypass function when the UPS is off.
Ø ECO Mode : Enables/disables the ECO function.
Ø Auto Restart: Enables/disables the auto-restart function.
Parameter Information Page 1
Parameter Information
Ø Line VOL Range: The range of acceptable line input voltages.
Ø Line FRE Range: The acceptable line input frequency range.
Ø Skip VAL Range: The range of acceptable input voltages for shortcut mode.
Ø Bypass FRE Range: The acceptable input frequency range for bypass mode.
Ø ECO Vol range: The acceptable input voltage range for ECO mode.
Ø ECO FRE range: The acceptable input frequency range for ECO mode.
29
