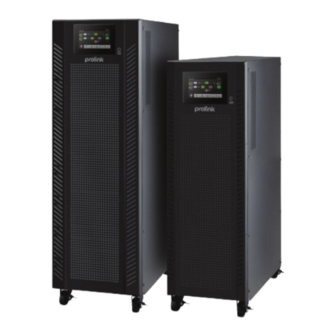

PROLiNK Master II Series User Manual
  1. Manuals
  2. Brands
  3. PROLiNK Manuals
  4. UPS
  5. MASTER II Series
  6. User manual

PROLiNK Master II Series User Manual

Tower type
Hide thumbs Also See for Master II Series:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Master II Series (3P/3P)
Tower Type
INSPIRE 83310-QS, INSPIRE 83320-QS
Version 1.00
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Master II Series and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK Master II Series

Summary of Contents for PROLiNK Master II Series

  • Page 1 User Guide Master II Series (3P/3P) Tower Type INSPIRE 83310-QS, INSPIRE 83320-QS Version 1.00 (English)

  • Page 2: Table Of Contents

    Table of Contents 1. SAFETY INSTRUCTIONS AND EMC ................... 1 1-1. T ....................1 RANSPORTATION AND TORAGE 1-2. P .......................... 1 REPARATION 1-3. I .......................... 1 NSTALLATION 1-4. C ......................2 ONNECTION ARNING 1- 5 . O .......................... 2 PERATION 1- 6 .

  • Page 3: Safety Instructions And Emc

    1. SAFETY INSTRUCTIONS AND EMC All safety instructions in this document must be read, understood, and followed. 1-1. Transportation and Storage Please ship the UPS system only in its original packaging to protect against shock and damage. The UPS should be stored in a room where the temperature is well regulated. The ambient temperature should not exceed 40°C.

  • Page 4: Connection Warning

    1-4. Connection Warning • There is no standard feedback protection inside the UPS. However, there is a relay at the Input to cut the voltage off line and when neutral it is still connected to the UPS. Input Rly Input Rly Main Input Main...

  • Page 5: Standard

    To completely disconnect the UPS system, first press the "OFF" button and then Unplug the power/power cord. Make sure no liquids or other foreign objects can enter the UPS system. UPS can be operated by any individual with no prior experience. 1- 6 .

  • Page 6: Installation And Operation

    2. INSTALLATION AND OPERATION The series comes with two VAC systems: 208V and 400V. There are two different types of models: standard and long-term models. Please refer to the following table. VAC System Type Kind INSPIRE 83310-QS 400V Standard model INSPIRE 83320-QS We also offer optional parallel functionality for both models on request.

  • Page 7: Single Ups Mounting

    Diagram 2: INSPIRE 83310-QS & INSPIRE 83320-QS Input/Output Terminal 1. RS-232 communication port 2. USB communication port 3. Emergency off function connector (EPO connector) 4. Share current port 5. Parallel port 6. Smart slot 7. External battery connectors/terminals 8. Line input switch/circuit breaker 9.
  • Page 8 5) Remove the terminal block cover on the back panel of the UPS. Then connect the cable according to Terminal block diagram follows: ( Connect the ground/earthing cable first when making other cable connections. Unplug the last ground/earth cable when connecting the UPS!) Terminal block wiring diagram for INSPIRE 83310-QS &...

  • Page 9: Ups Installation For Parallel Systems

    ● Pay special attention to the rated battery voltage marked on the back panel. If you want to change the battery number in chain, make sure you change the UPS settings accordingly. A connection with the wrong battery voltage can cause permanent damage to the UPS. ●...

  • Page 10: Operation

    3. OPERATION 3-1. Button operation Before operation, make sure both battery circuits are properly connected with the terminal sequence " +,GND,-" and the battery pack breaker is in the "ON" position (for long-term models only). 2 ) Press the " "...
  • Page 11 3-2- 2. Control screen Touch its icon to enter the controls submenu . Touch the icon to return to the home screen no matter it's on any screen from any submenu. Enter No Or Back Confirm YES Turn ON /OFF UPS ON/OFF UPS Enter No Or Back Confirm YES Do Battery Test...
  • Page 12 Touch "Back" to return to the main screen immediately or "No" to cancel this operation and return to the main screen (screen 0.0). TURN ON THE UPS TURN OFF THE UPS Battery Test It will show "Battery Test" if the UPS is not being tested. Touch "Yes" to start the battery test. Then, it will display "Battery testing...
  • Page 13 Touch "Back" to immediately return to the CONTROL screen. Parallel Exit It will display "Parallel Exit?" when the units are in parallel system. Touch "Yes" to remove the unit from the parallel system. Or touch "No" to cancel this operation. Then, the screen will return to the main screen. 3-2-3.
  • Page 14 Measure screen page 2 Ø W OUTPUT: Output power L1, L2 and L3 in watts. Ø VA OUTPUT: Output power L1, L2 and L3 in VA. Ø OUTPUT W (%): L1, L2 and L3 output power watts in percentage. Ø OUTPUT VA (%): L1, L2 and L3 output power VA in percentage.
  • Page 15 NOTE : Not all settings are available in every operating mode. If the setting is not available in the current mode, the LCD will still display the original setting parameters instead of changing the parameters. Setup screen Ø GENERAL: This is for organizing the basic information of the UPS. It is not related to any function parameters.
  • Page 16 Common screen page 2 Ø Audio Alarm: There are two shows available to mute. You can select an "Enable" or "Disable" alarm when a related event occurs. Turn on: If selected, the alarm will mute when related events occur. Disable: If selected, the UPS sounds an alarm when a related event occurs. All Mute: When "enable"...
  • Page 17 Password error page Advanced Settings Menu Page There are three sub-menus under the "Advance User" settings è: ELECTRONICS, BATTERY and OTHERS. ELECTRONIC Electrical Setting Page 1 Ø Output VOL: Select the rated output voltage. There are four options, 208V, 220V, 230V and 240V. Ø...
  • Page 18 Disable: The CVCF function is disabled. The output frequency will be synchronized with the bypass ~55 Hz for 50Hz systems or within 55~65 Hz for 60Hz systems frequency within 45 . Disable is the default setting. Ø Bypassing the Ban: Enable : Bypass prohibit is allowed.
  • Page 19 BATTERY Battery settings page Ø VOL Warning BATT: HIGH : High battery warning voltage. The setting range is 14.0V 15.0V. 14.4V is the default setting. LOW : Low battery warning voltage. The setting range is 10.1V 14.0V. 11.4V is the default setting. This parameter setting corresponds to the "Shutdown Voltage"...
  • Page 20 Ø ADVANCE Maintainerè Advanced: Maintainer Settings Menu Page 1 Advanced: Maintainer Settings Menu Page 2 To access the Settings menu page "Advance èMaintainer" is required to enter the word joint. Please contact your local dealer for a manager password. ATTENTION: This settings menu is for expert technicians only. Otherwise, misoperation will lead to UPS damage.
  • Page 21 Ø Mode Name: Set the UPS model name. Ø Serial Number: Sets the serial number. Ø Manufacturer: Set the UPS manufacturer. Ø Charger Number: The number of charging boards installed on the UPS. NOTE: It is required to restart the UPS after setup. Ø...
  • Page 22 Ø SYS Install Date: Set the UPS installation date. Ø BAT Installation Date: Set the Battery installation date. Ø Date Time: Set the date and time. The format is YYYY-MM-DD HH:MM:SS. Calendar days will change automatically when the year, month and date are set. VOL TIMES VOL CALI Page1 Ø...
  • Page 23 Ø Output VOL: Calibrate the output voltage. Click the Value column and it will appear . Then, each click is 0.1% no matter it presses the up or down button. Press the "up" button to raise 0.1% and press the "down"...
  • Page 24 INITIAL INITIAL menu page INIAL à LOG DATA page Ø LOG DATA: After clicking "LOG DATA", a message board will appear as shown in the screen above. Touch "Yes" to delete the LOG DATA page. Touch "Back" or "No" to cancel this operation and return to the START menu page.
  • Page 25 INITIAL CALI Pageà Ø CALI: After clicking "CALI", a message board will appear as shown in the screen above. Touch "YES" to return the default calibration value. Touch "Back" or "No" to cancel this operation and return to the START menu page. INITIAL EEPROM Pageà...
  • Page 26 ELECTRONIC Electrical Setting Page 1 Ø Output VOL: Select the rated output voltage. There are four options, 208 V, 220V, 230V and 240V. Ø FRE output: Select the rated frequency of the output. 50Hz: Output frequency is set to 50Hz. 60Hz: Output frequency is set to 60Hz.
  • Page 27 Electrical Settings Page 2 Ø Bypass UPS off: Select the bypass status when manually shutting down the UPS. This setting is only available when "Bypass forbid" is set to "Disable". Enable : Skip enabled. When selected, bypass mode is enabled. Disable : Skip is disabled.
  • Page 28 higher than the "Shutdown Voltage" setting. Ø Turn off VOL: If the battery voltage is lower than this point in battery mode, the UPS will turn off automatically. The setting range is 10.5V 12.0V. 10.7V is the default setting. (This setting is only available for long-term models) Ø...
  • Page 29 Ø Automatic Restart : Enable : Once "Enable" is set, no matter what the UPS state was before, it will restart to Online mode automatically after the utility recovers. Disable : Once "Disable" is set, the UPS will operate normally. If the UPS is turned off due to low battery, it will still restart to online mode after the utility recovers.
  • Page 30 3-2-5. Information Screen Touch the icon to enter the information page. Touch the icon to browse information. Touch the icon to return to the home screen. Touch the icon to return to the previous menu. Basic Information Page 1 Basic Information Ø...
  • Page 31 Ranking Information Page Assessed Information Ø Output VOL: This indicates the rated voltage of the output. Ø Output FRE: This indicates the rated frequency of the output. Ø CVCF Mode: Enables/Disables CVCF mode. Ø Forbid Bypass: Enables/disables the bypass function. Ø...
  • Page 32 Parameter Information Page 2 Ø BATT Working Time: The maximum discharge time in battery mode. Ø VOL Warning BATT: HIGH : High battery warning voltage. LOW : Low battery warning voltage. Ø Turn off VOL: If the battery voltage is lower than this point, the UPS will turn off automatically. Ø...

  • Page 33: Audible Alarm

    3-3. Audible alarm Information Bell status Dampen UPS status Cutting mode A beep every 2 minutes Battery mode Beep once every 4 seconds Yes _ Error mode Continuous beeping Commemoration Overload Beeps twice every second Other Beeps once every second Error Continuous beeping 3-4.
  • Page 34 4 . Charge the battery 1) After the UPS is connected to the power source and turned on in AC mode, the charger will charge the battery automatically except in battery mode, during battery self-test, overload, or when battery voltage is high. 2) It is recommended to charge the battery at least 10 hours before operation.
  • Page 35 11 . Operation in Error mode 1) When the error code lights up on the LCD screen and the bell beeps continuously, it means that there is a fatal error on the UPS. Users can get error codes from the "LOG DATA" menu. Please refer to Chapter 4 for details s .
  • Page 36 4) Enter the command "^S006SOP31" to set the UPS to model 31, the UPS will return "^D006ACK" when receiving. If you want to set the UPS model to 33, the command is "^S006SOP33". Note: setting this parameter is not directly performed. Settings will only be saved when the UPS is turned off normally with the battery connected.
  • Page 37 31 schematic diagrams for short-circuit copper sheet joints 33 Schematic diagram for copper joints of short circuit sheets B. Second method 1) Press "SETTING" in shortcut mode or standby mode.

  • Page 38: Parallel Operations

    2) Enter password 2) Press "SYS PARSMETER" then go to page 2. Select "Output Settings" and change "3-3" to "3-1". NOTE: Parameter settings will only be saved when the UPS is off normally with batteries connected. 3- 5 . Parallel Operations 1.

  • Page 39: Error Codes

    5) Turn on the parallel system in Battery mode: Turn on the battery disconnect (available on long-range models only) and the external output disconnect of each UPS . Turn on any UPS. A few seconds later, the UPS will enter battery mode. Turn on the next UPS in sequence until all UPSs enter Battery mode and add them to a parallel system.

  • Page 40: Warning Code

    neutral) short-circuited Inverter output L2 (channel to Pass the O/P line to the short circuit line neutral) short-circuited Inverter output L3 (channel to Short circuit SCR inverter neutral) short-circuited Inverter output L1-L2 (line to BUS voltage drops too fast line) short-circuited Inverter output L2-L3 (line to Current sampling error value line) short-circuited...

  • Page 41: Troubleshooting

    4. TROUBLESHOOTING If the UPS system is not operating correctly, troubleshoot the problem by using the table below. Symptom Possible causes Repair There is no indication and alarm on Check that the input cable is AC input power is not well the front display panel despite firmly connected to the power connected.

  • Page 42: Storage And Maintenance

    5. STORAGE AND MAINTENANCE 5- 1 . Storage Before storing, charge the UPS for at least 7 hours. Store the UPS covered and upright in a cool, dry place. During storage, recharge the battery according to the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C...

  • Page 43: Specifications

    6. SPECIFICATIONS TYPE INSPIRE 83310-QS INSPIRE 83320-QS CAPACITY* 10KVA/10KW 20KVA/20KW INPUT Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage Range High Line Loss 300 VAC(L-N) ±...
  • Page 44 Note: Closed on Saturdays, Sundays and local/regional Public Holidays. Register online for your Product Warranty at www.prolink2u.com Prolink is a registered trademark of Fida International (S) Pte Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Product images are purely for illustrative purposes and may defer from the actual product.
