User Guide
Master II Series (3P/3P)
Tower Type

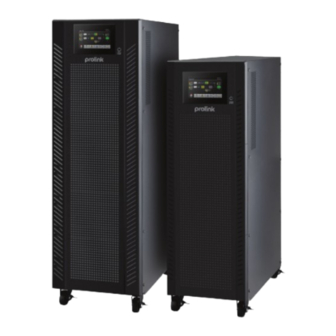

INSPIRE 83330-QS, INSPIRE 83340-QS
Version 1.00
(English)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Master II Series and is the answer not in the manual?

Questions and answers

Related Manuals for PROLiNK Master II Series

Summary of Contents for PROLiNK Master II Series

  • Page 1 User Guide Master II Series (3P/3P) Tower Type INSPIRE 83330-QS, INSPIRE 83340-QS Version 1.00 (English)

  • Page 2: Table Of Contents

    Table of Contents 1. SAFETY INSTRUCTIONS AND EMC ................... 1 1-1. T ....................1 RANSPORTATION AND TORAGE 1-2. P .......................... 1 REPARATION 1-3. I .......................... 1 NSTALLATION 1-4. C ......................2 ONNECTION ARNING 1- 5 . O .......................... 2 PERATION 1- 6 .

  • Page 3: Safety Instructions And Emc

    1. SAFETY INSTRUCTIONS AND EMC All safety instructions in this document must be read, understood, and followed. 1-1. Transportation and Storage Please ship the UPS system only in its original packaging to protect against shock and damage. The UPS should be stored in a room where the temperature is well regulated. The ambient temperature should not exceed 40°C.

  • Page 4: Connection Warning

    1-4. Connection Warning • There is no standard feedback protection inside the UPS. However, there is a relay at the Input to cut the voltage off line and when neutral it is still connected to the UPS. Input Rly Input Rly Main Input Main...

  • Page 5: Standard

    Make sure no liquids or other foreign objects can enter the UPS system. UPS can be operated by any individual with no prior experience. 1- 6 . Standard * Safety IEC/EN 62040-1 *EMI Conducted Emission.......:IEC/EN 62040-2 Category C3 Radiated Emission........:IEC/EN 62040-2 Category C3 *EMS CD Level 2...

  • Page 6: Wiring Terminal Display

    NOTE: Before installation, please check the unit. Make sure there is no physical damage to the unit. Do not turn on the unit and notify the operator and dealer immediately of any damage or loss of parts and accessories. Please keep the original packaging for future use. It is recommended to store each equipment and battery set in its original packaging as it has been designed to provide maximum protection during transportation and storage.

  • Page 7: Single Ups Mounting

    2-3. Single UPS mounting Installation and wiring must be done in accordance with local electrical laws and regulations by trained professionals. Ensure that electrical wiring and building breakers are in line with the capacity of the UPS to prevent electric shock or fire risk. NOTE: Do not use a wall outlet as an input power source for the UPS, as the current value is less than the maximum input current of the UPS.

  • Page 8: Ups Installation For Parallel Systems

    NOTE 1 : Make sure the cable is securely connected to the terminal. NOTE 2 : Please install an output breaker between the output terminal and the load, and the breaker should have a leakage current protective function if necessary. 6) Reinstall the terminal block cover on the back panel of the UPS .

  • Page 9: Software Installation

    2-5. Software Installation For optimal computer system protection, install UPS monitoring software to configure UPS shutdown operations. 3. OPERATION 3-1. Button operation Before operation, make sure both battery circuits are properly connected with the terminal sequence " +,GND,-" and the battery pack breaker is in the "ON" position (for long-term models only). 2 ) Press the "...
  • Page 10 3-2-1. Home screen When powered on, the LCD will initiate initialization for approximately a few seconds as shown below. 96 72.07 After initialization, the main screen will be displayed as shown below. On the button, there are five icons representing five sub-menus: Control, measure, setting, information, log data. 3-2- 2.
  • Page 11 Enter No Or Back Confirm YES Turn ON /OFF UPS ON/OFF UPS Enter No Or Back Confirm YES Do Battery Test MAIN CONTROL BATTERY TEST Enter No Or Back Confirm YES Do MUTE ALL MUTE ALL Enter No Or Back Confirm YES Turn ON/OFF CHARGER ON/OFF CHARGER Enter No Or Back...
  • Page 12 It will display "Unmute" if the UPS is mute. Touch "Yes" to activate the audio function or "No" to remain silent. Touch "Back" to return to the CONTROL screen. ( screen 0.0). Turn Off All Undo Turn off all On-Off Charger It will display "Enable Charger?"...
  • Page 13 Measure screen page 1 Ø LINE VOL: Real time values of phase voltages L1, L2 and L3, voltage L1L2/L2L3/L3L1 and input frequency. Ø INVERTER VOL: Real-time values of inverter voltage L1, L2 and L3, voltage and frequency L1L2/L2L3/L3L1. Ø BYPASS VOL: The actual time value of the bypass voltage L1, L2 and L3, voltage and frequency L1L2/L2L3/L3L1.
  • Page 14 Measure screen page 3 Ø W INPUT: L1, L2 and L3 input power in watts. Ø VA INPUT: The input power of L1, L2 and L3 in VA. Ø W INPUT (%): L1, L2 and L3 enter the wattage of power in percentage. Ø...
  • Page 15 GENERAL SETTINGS Settings screen page 1 Ø Language : Set the LCD language. There are three options: English, Simplified Chinese and Traditional Chinese. English is the default setting. Ø Input Source : Select an input source. There are two options: Line (utility) and generator. Line is the default setting.
  • Page 16 ADVANCED SETTINGS Advanced Passwords page It is required to enter a password (4 digits) to access the "ADVANCE" page. Ø Advance èUser To access the "Advance User" Settings menu page è, the default password is "0000". If the password entered is correct, the page will jump to the settings screen. If the password is incorrect, it will ask to log in again.
  • Page 17 There are three sub-menus under the "Advance User" settings è: ELECTRONICS, BATTERY and OTHERS. ELECTRONIC Electrical Settings Page 1 Ø Output VOL: Select the rated output voltage. There are four options, 208V, 220V, 230V and 240V. Ø FREE output: Select the rated frequency of the output. 50Hz: Output frequency is set to 50Hz.
  • Page 18 Disable : Skip is disabled. When selected, there is no output via bypass when manually shutting down the UPS. Ø Shortcut Voltage Range: Sets the shortcut voltage range. L : Low voltage point for bypass. The setting range is 176V 209V when UPS is HV system.
  • Page 19 MISCELLANEOUS Miscellaneous settings page Ø Automatic restart: Enable : Once "Enable" is set, no matter what the UPS state was before, it will restart to Online mode automatically after the utility recovers. Disable : Once "Disable" is set, the UPS will operate normally. If the UPS is turned off due to low battery, it will still restart to online mode after the utility recovers.
  • Page 20 To access the Settings menu page "Advance èMaintainer" is required to enter the word joint. Please contact your local dealer for a manager password. ATTENTION: This settings menu is for expert technicians only. Otherwise, misoperation will lead to UPS damage. There are nine sub-menus under the è...
  • Page 21 INSTALL INFORMATION INSTALL INFORMATION page Ø SYS Install Date: Set the UPS installation date. Ø BAT Installation Date: Set the Battery installation date. Ø Date Time: Set the date and time. The format is YYYY-MM-DD HH:MM:SS. The calendar day will change automatically when the year, month and date are set. VOL TIMES VOL CALI Page1 Ø...
  • Page 22 VOL CALI Page 2 Ø VAL line: Calibrate the line voltage. Click the Value column and it will appear . Then, each click is 0.1% no matter it presses the up or down button. Press the "up" button to raise 0.1% and press the "down"...
  • Page 23 CURR CALI CURR CALI Page Ø CURR output: Calibrate the output current. Click the Value column and it will appear . Then, each click is 0.1% no matter it presses the up or down button. Press the "up" button to raise 0.1% and press the "down"...
  • Page 24 INITIAL à Parameters Page Ø PARAMETERS: After clicking "PARAMETERS", a message screen will appear as shown in the screen above. Touch "YES" to return the default value. Touch "Back" or "No" to cancel this operation and return to the START menu page. INITIAL CALI Pageà...
  • Page 25 INITIAL TOUCHES OF àCALI Ø TOUCH CALI: After pressing the confirmation window, it will appear as shown in the screen above. Touch screen to recalibrate. Then, a blue screen appears and please click the place of the cross with your mouse. ELECTRONIC Electrical Setting Page 1 Ø...
  • Page 26 Check: UPS will detect neutral or no loss only at the first commission. If neutral loss is detected, an alarm will be generated. If the UPS is turned on, it will switch to battery mode. When neutral is restored, the alarm will NOT turn off automatically and the UPS will NOT return to normal mode automatically.
  • Page 27 BATTERY Battery settings page Ø VOL Battery Warning: HIGH : High battery warning voltage. The setting range is 14.0V 15.0V. 14.4V is the default setting. LOW : Low battery warning voltage. The setting range is 10.1V 14.0V. 11.4V is the default setting. This parameter setting corresponds to the "Shutdown Voltage"...
  • Page 28 MISCELLANEOUS Miscellaneous settings page Ø Automatic Restart : Enable : Once "Enable" is set, no matter what the UPS state was before, it will restart to Online mode automatically after the utility recovers. Disable : Once "Disable" is set, the UPS will operate normally. If the UPS is turned off due to low battery, it will still restart to online mode after the utility recovers.
  • Page 29 After the UPS self-test passes, the screen will go black automatically. If the UPS self-test is abnormal, the UPS will stop at the abnormal screen. At this time, the maintenance personnel must repair the UPS according to the self-test instructions. Please check your local dealer for self-test instructions. 3-2-5.
  • Page 30 Ranking Information Page Assessed Information Ø Output VOL: This indicates the rated voltage of the output. Ø Output FRE: This indicates the rated frequency of the output. Ø CVCF Mode: Enables/Disables CVCF mode. Ø Forbid Bypass: Enables/disables the bypass function. Ø...

  • Page 31: Audible Alarm

    Ø BATT Working Time: The maximum discharge time in battery mode. Ø VOL Warning BATT: HIGH : High battery warning voltage. LOW : Low battery warning voltage. Ø Turn off VOL: If the battery voltage is lower than this point, the UPS will turn off automatically. Ø...

  • Page 32: Single Ups Operation

    3-4. Single UPS Operation 1. Turn on the UPS with electricity (in AC mode) 1) After the power supply is properly connected, set the battery unit disconnect to the "ON" position. ( this step is only necessary for long-term models) . Then set the input path breaker to the "ON" position .
  • Page 33 procedure to keep the data or device working. Otherwise, there is a risk of data loss or loading failure. 2) In Battery mode, users can touch "SETTING" "èBasicè" Audio Mute to enable "Mute Mode" to disable the buzzer. 3) Long-term model backup time depends on external battery capacity. 4) The backup time may vary from different operating temperature and load type.

  • Page 34: Parallel Operations

    1 ) First, turn off the UPS. 2) Then, remove the cover of the maintenance bypass switch on the panel. 3) Turn the maintenance switch to the "BPS" position. 3- 5 . Parallel Operations 1. Initial startup of parallel systems Please ensure that all running UPSs are parallel models and have the same configuration.

  • Page 35: Error Codes

    3) Turn off the output breaker and disconnect the parallel cable and share the UPS current cable you want to remove. Now, you can disconnect the UPS from the parallel system. 4) Turn on the input breaker of the remaining UPS and the system will switch to Bypass mode. Set the maintenance switch from "BPS"...

  • Page 36: Warning Code

    3-7. Warning Code Warning code Commemorative events Warning code Commemorative events Battery not connected Unbalanced inverter current Loss of Neutral IP Maintenance switch cover opens Abnormal IP phase Utilities are very unbalanced Abnormal bypass phase Unstable bypass More than cost Battery voltage is too high Low battery Battery voltage is out of balance...

  • Page 37: Troubleshooting

    4. TROUBLESHOOTING If the UPS system is not operating correctly, troubleshoot the problem by using the table below. Symptom Possible causes Repair There is no indication and alarm on Check that the input cable is AC input power is not well the front display panel despite firmly connected to the power connected.

  • Page 38: Storage And Maintenance

    5. STORAGE AND MAINTENANCE 5- 1 . Storage Before storing, charge the UPS for at least 7 hours. Store the UPS covered and upright in a cool, dry place. During storage, recharge the battery according to the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C...

  • Page 39: Specifications

    6. SPECIFICATIONS TYPE INSPIRE 83330-QS INSPIRE 83340-QS CAPACITY* 30KVA/30KW 40KVA/40KW INPUT Low Line Loss 110 VAC(Ph-N) ± 3 % at 50% Load; 176 VAC(Ph-N) ± 3 % at 100% Load Low Line Comeback Low Line Loss Voltage + 10V Voltage Range High Line Loss 300 VAC(L-N) ±...
