PROLiNK Master II Series User Manual page 13

Touch "Back" to immediately return to the CONTROL screen.
Parallel Exit
It will display "Parallel Exit?" when the units are in parallel system. Touch "Yes" to remove the unit from the
parallel system. Or touch "No" to cancel this operation. Then, the screen will return to the main screen.
3-2-3. Measure screen
Touch the icon to go to the measurement page. Touch the icon
Touch the icon to return to the home screen. Touch the icon
Ø
LINE VOL: Real time values of phase voltages L1, L2 and L3, voltage L1L2/L2L3/L3L1 and input
frequency.
Ø
INVERTER VOL: Real-time values of inverter voltage L1, L2 and L3, voltage and frequency
L1L2/L2L3/L3L1.
Ø
BYPASS VOL: The actual time value of the bypass voltage L1, L2 and L3, voltage and frequency
L1L2/L2L3/L3L1.
Ø
OUTPUT VOL: Real time values of output voltages L1, L2 and L3, voltages and frequencies
L1L2/L2L3/L3L1.

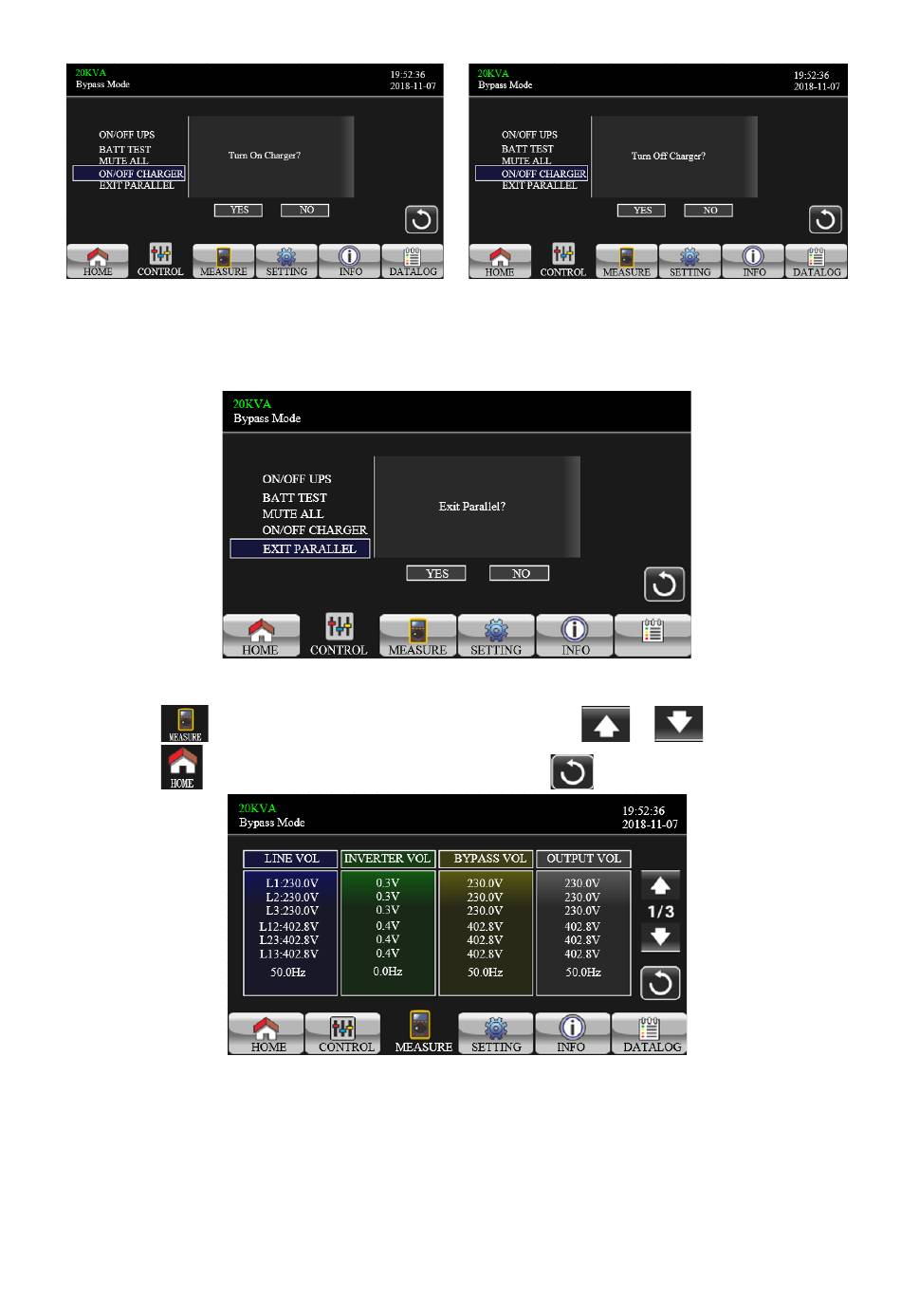

Measure screen page 1
11
or to browse information.
to return to the previous menu.
