PROLiNK Master II Series User Manual page 14

Ø
W OUTPUT: Output power L1, L2 and L3 in watts.
Ø
VA OUTPUT: Output power L1, L2 and L3 in VA.
Ø
OUTPUT W (%): L1, L2 and L3 output power watts in percentage.
Ø
OUTPUT VA (%): L1, L2 and L3 output power VA in percentage.
Ø
Total watts and VA: Total output load in watts and VA.
Ø
BATT Voltage/Bus Voltage/Charging Current/Discharging Current: Real-time values of DC-related
information.
Ø
Temperature: Phase temperature L1, L2 and L3.
Ø
W INPUT: L1, L2 and L3 input power in watts.
Ø
VA INPUT: The input power of L1, L2 and L3 in VA.
Ø
W INPUT (%): L1, L2 and L3 enter the wattage of power in percentage.
Ø
VA INPUT (%): L1, L2 and L3 enter VA power in percentage.
Ø
Input current: Real-time values of input currents in phases L1, L2 and L3 .
Ø
Output current: Real-time values of output currents in phases L1, L2 and L3.
3-2-4. Settings screen
This sub menu is used to set UPS parameters. Touch the icon
are 2 options: Basic and Advanced. Touch the icon
to return to the previous menu.

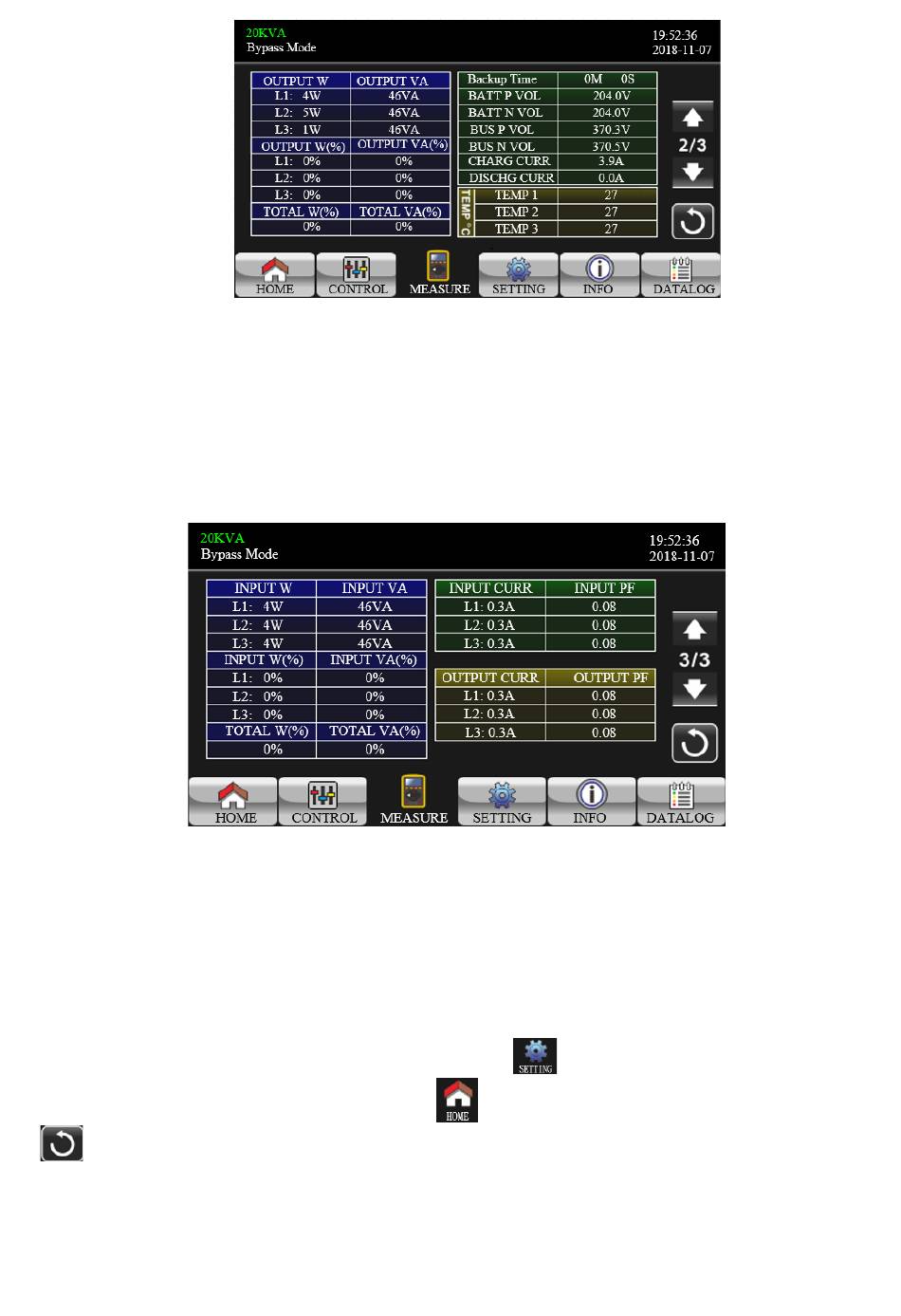

Measure screen page 2
Measure screen page 3
to return to the home screen. Touch its icon
12
to enter the settings menu page. There
