PROLiNK Master II Series User Manual page 21

Ø
Mode Name: Set the UPS model name.
Ø
Serial Number: Sets the serial number.
Ø
Manufacturer: Set the UPS manufacturer.
Ø
Charger Number: The number of charging boards installed on the UPS.
NOTE: It is required to restart the UPS after setup.
Ø C URR Maximum Charge:
n
One charger: There are twelve options: 1A, 2A, 3A, 4A, 5A, 6A, 7A, 8A, 9A, 10A, 11A, 12A.
n
Two pieces charger: There are twelve options: 2A, 4A, 6A, 8A, 10A, 12A, 14A, 16A, 18A, 20A, 22A, 24A
Ø
BATT number: The total number of batteries installed. (It is required to restart the UPS after setup.) The
setting range is 16
Ø
Float VOL: Battery float voltage regulation point. 13.6V is the default setting.
Ø
UPS Type: There are two options, HV and LV . This change is only allowed for qualified technicians.
NOTE: It is required to restart the UPS after setup.
Ø
Power Settings : Set the power factor in percentages.
Ø
Output settings: Set UPS output settings. There are two options, 3-1 and 3-3.
NOTE: It is required to restart the UPS after setup.
Ø
Customer Code : Set the customer code. This is a required setting when using the dynamic password
function.
Ø
Dynamic Password : Enable or disable the dynamic password function.
INSTALL INFORMATION
~
20°C . 16 is the default setting.

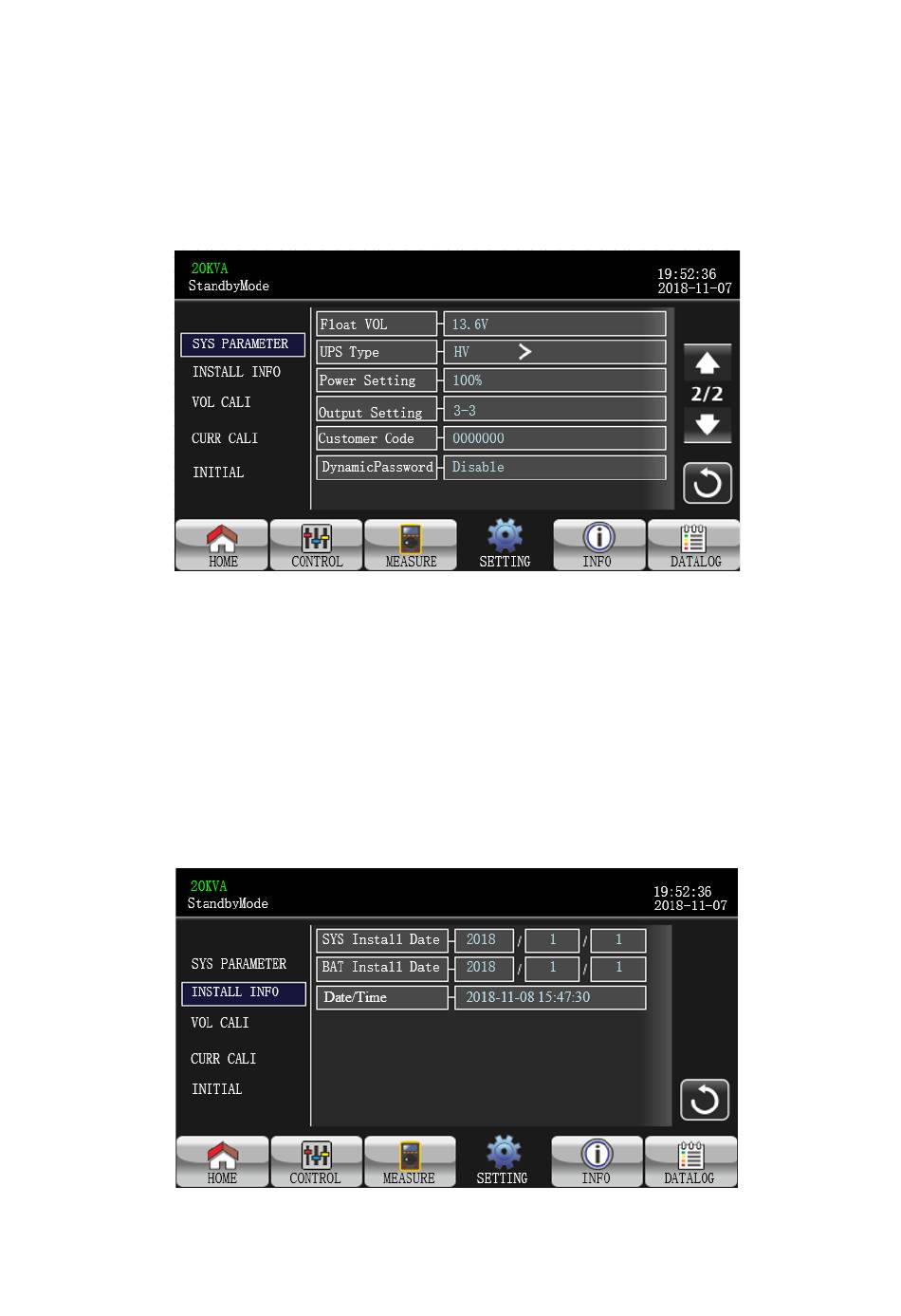

SYSTEM PARAMETERS Page 2
INSTALL INFORMATION page
19
