Hardware layout and configuration
2.7
2.8
16/61
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from

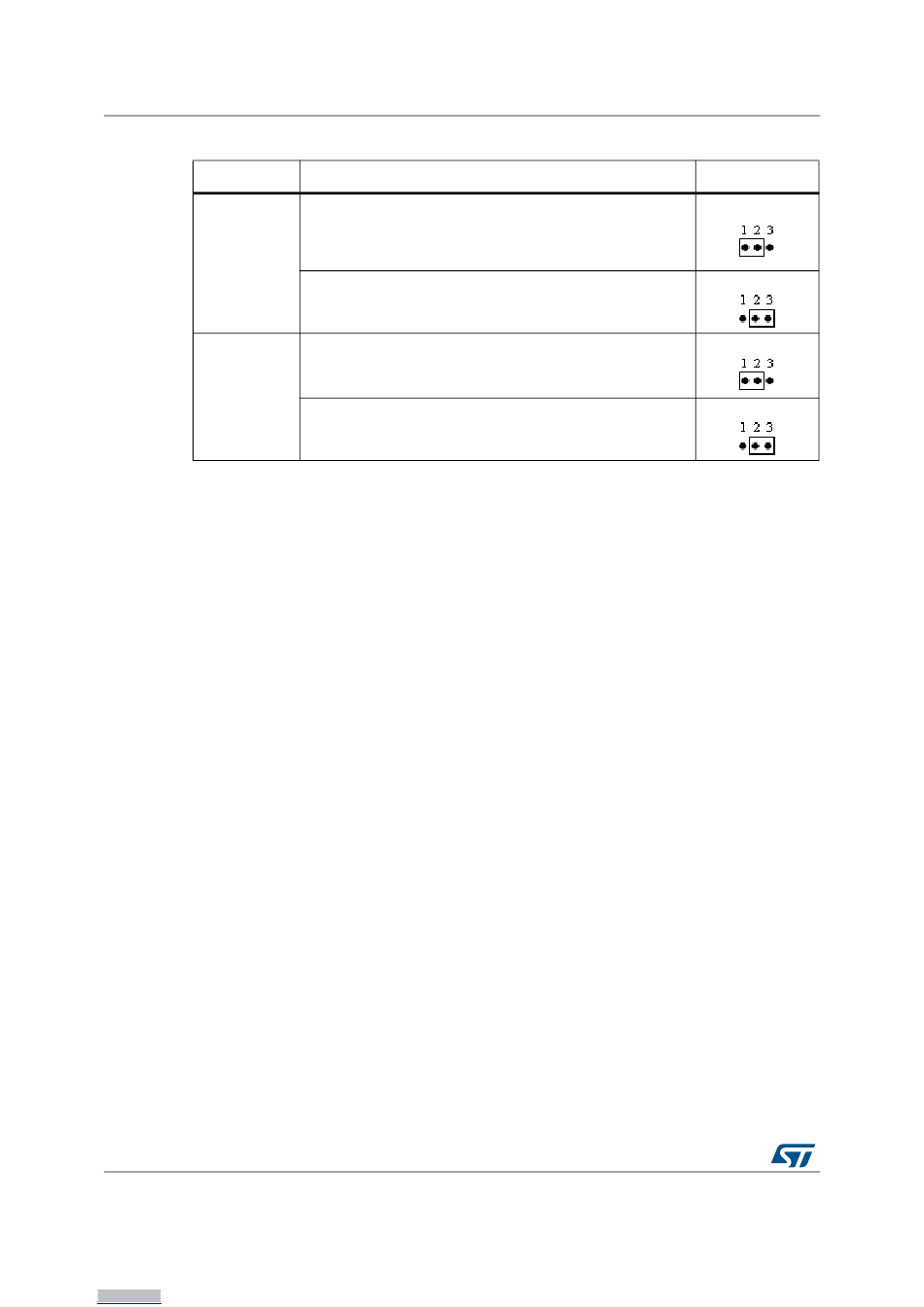

Table 9. Audio-related jumpers (continued)
Jumper
PF6 is used as I2C standard mode and it is connected to
I2C2_SCL signal on Audio DAC, Audio external PLL,
temperature sensor and RF EEPROM connector when JP6 is
set as shown to the right (default setting):
JP6
PF6 is used as I2C fast mode and it is connected to
I2C2_SCL_F signal on EEPROM when JP6 is set as shown to
the right:
PA9 is connected to I2S_MCK signal on CS42L52 when JP18
is set as shown to the right (default setting)
JP18
PA9 is connected to IR_IN signal on TSOP34836 when JP18 is
set as shown to the right:
The I2C address of CS42L52 is 0b1001010, and that of External PLL CS2200 is
0b1001110.

USB

The STM32303E-EVAL evaluation board supports USB2.0 compliant full speed
communication via a USB type B connector (CN12). The evaluation board can be powered
by this USB connection at 5 V DC with 500 mA current.
A USB disconnection simulation can be implemented by controlling the 1.5 K pull-up resistor
on the USB+ line and by detecting the 5 V power on the USB connector (CN12) via a
resistor connected to PB8.
USB will work properly when VDD > 3 V.

RS232, RS-485 and IrDA

The RS232, RS-485 and IrDA communication is supported by D-type 9-pin RS232/RS-485
connectors (CN8) and IrDA transceiver (U10) which is connected to USART1 of
STM32F303VET6 on the STM32303E-EVAL evaluation board. Bootloader_RESET &
Bootloader_BOOT0 signals are added on the RS232 connector (CN8) for ISP support.
Description
DocID026738 Rev 1
UM1807
Setting
