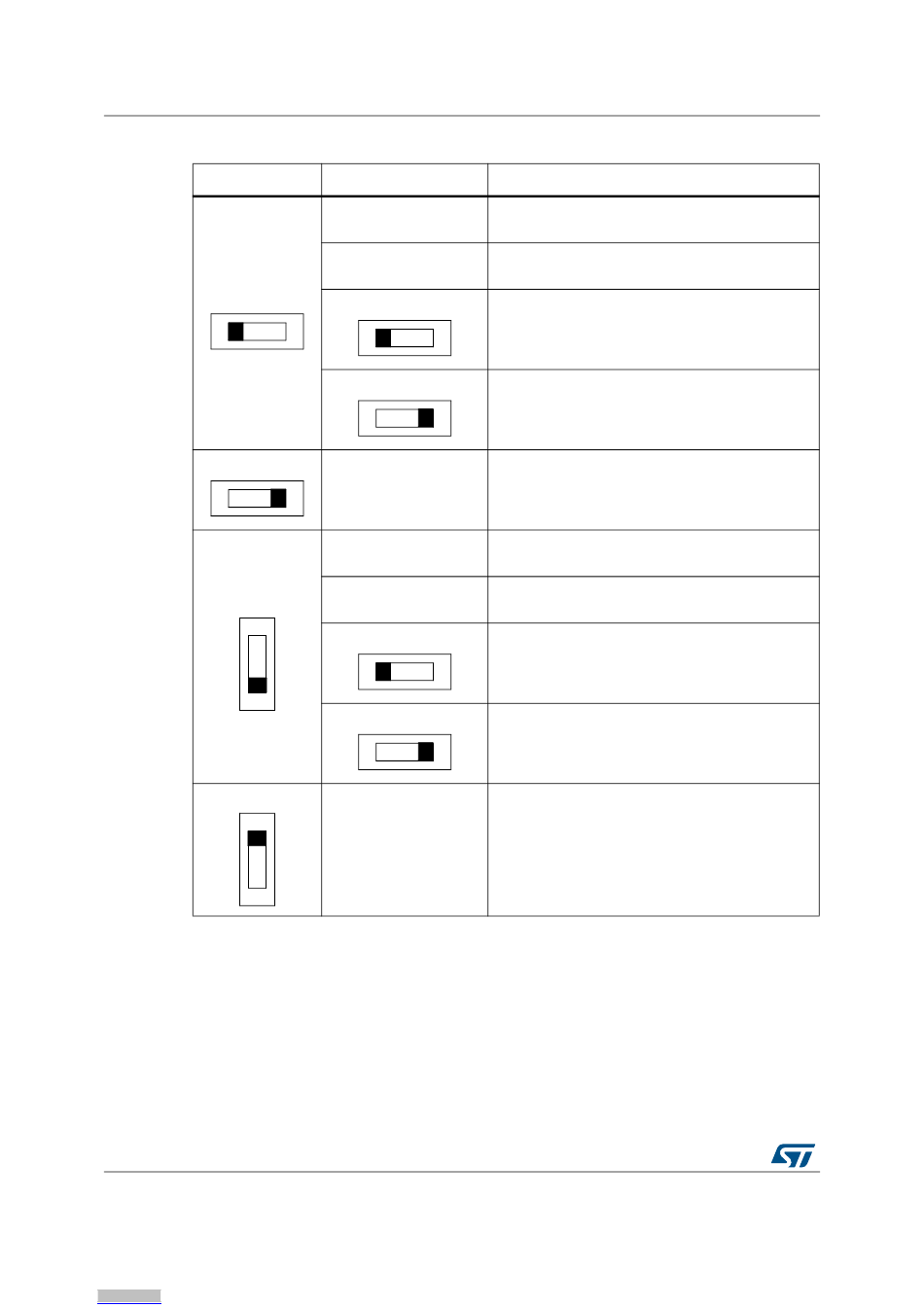

Table 19. Motor control related switches and solder bridges in OAM position

OAM position Other conditions
R113, R116 mounted
SB2 open
R113, R116 unmounted
SB2 closed
OAM1
3SA position
3SA position
OAM1
R132, R134 mounted
SB5 open
R132, R134 unmounted
OAM2
SB5 closed
3SA position
3SA position
OAM2
MC1_CurrentA+ connect to OPAMP1_IN+(PA1)
MC1_CurrentB+ connect to OPAMP2_IN1+(PA7)
MC1_CurrentB+ connect to OPAMP1_IN+(PA1)
MC1_CurrentC+ connect to OPAMP2_IN2+(PD14)
MC1_CurrentC+ connect to OPAMP4_IN1+(PB11)
MC1_CurrentA+ connect to ADC12(PC2)
- MC1_CurrentB+ connect to ADC12(PC3)
MC1_CurrentC+ connect to ADC12(PC0)
MC2_CurrentA+ connect to OPAMP3_IN+(PB0)
MC2_CurrentB+ connect to OPAMP4_IN2 +(PB13)
MC2_CurrentB+ connect to OPAMP3_IN+(PB0)
MC2_CurrentC+ connect to OPAMP4_IN1+(PB11)
MC2_CurrentC+ connect to OPAMP2_IN2+(PD14)
MC2_CurrentA+ connect to ADC34(PD11)
- MC2_CurrentB+ connect to ADC34(PD12)
MC2_CurrentC+ connect to ADC34(PD10)
