3.7 Installing Outdoor Antennas (Optional)

External antennas are required in wireless bridge scenarios. To obtain external antennas for special applications, go
to http://www.ruijienetworks.com/.
Installing Outdoor Directional Antennas

To protect your outdoor directional antennas from lightning strikes, install a lightning rod on top of the pole.

When installing the pole on the roof, install the pole on a wall or concrete block. Make sure the pole is exactly vertical
to ground.

To ground the antenna pole, connect the pole to a ground grid with a 40mm x 4mm (1.57in. x 0.16in.) stainless steel.

Install the outdoor directional antenna to the pole with the supplied brackets. See Figure 3-13.

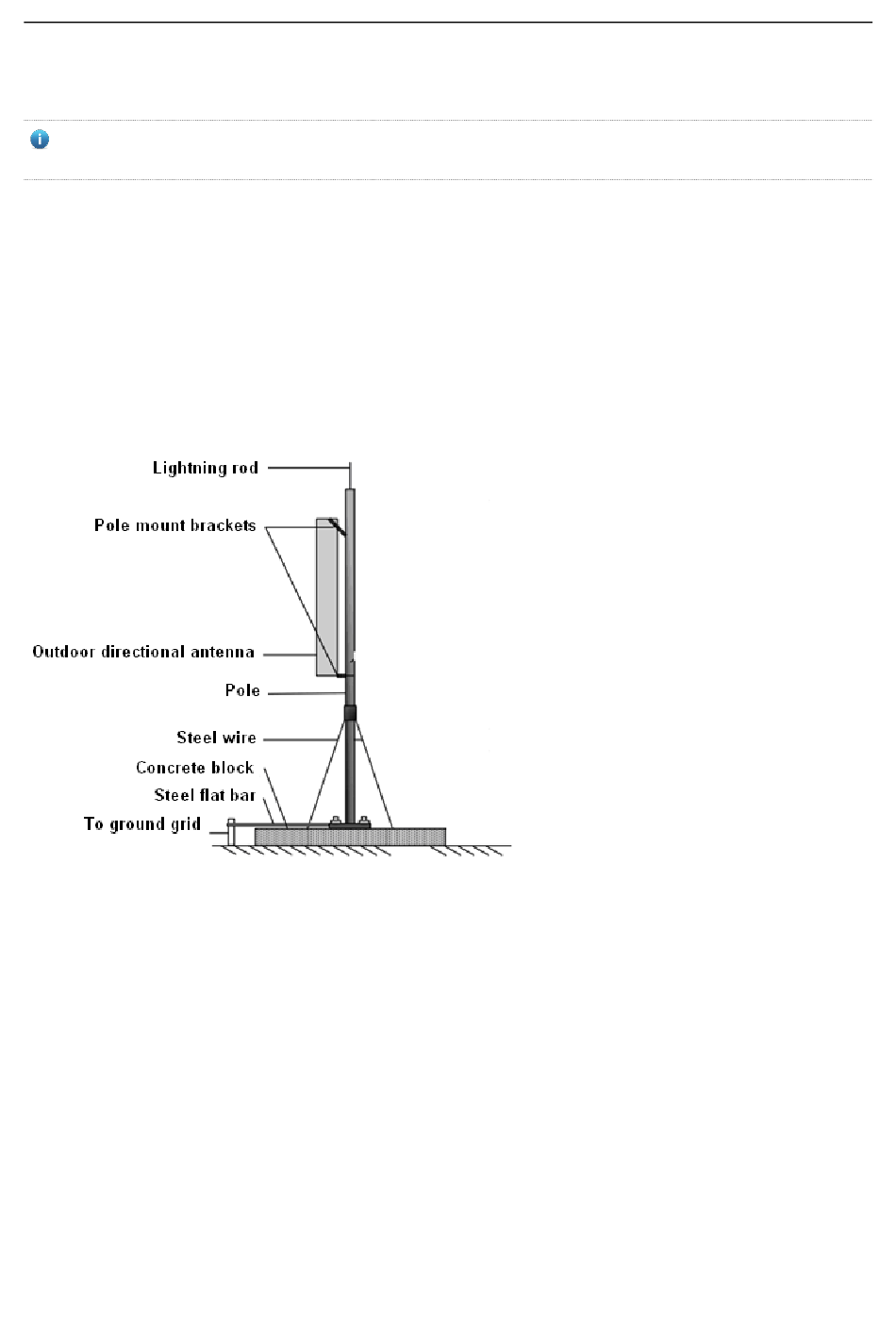

Figure 3-13 Mounting the Outdoor Directional Antenna on the Pole
Installing Outdoor Omnidirectional Antennas

Omnidirectional antennas must be kept at least one meter away from any metal. Do not weld the lightning rod onto
the pole installed with an omni-directional antenna. Place the lightning rod in the middle of two omni-directional
antennas. See Figure 3-14.

When installing the antenna on the pole, make sure the top and bottom pole clamps are level to the ground and
parallel to each other.

Ensure that the height of the antenna can provide desired signal coverage.

Ensure that the top of the antenna is within the 45° protection angle.
Figure 3-14 Mounting the Outdoor Omni-directional Antennas
