Network cables are in place.
3.3 Precautions
The outdoor AP can be mounted on a wall and a pole (diameter: 40mm to 75mm, thickness: ≥2.5mm). Otherwise, the AP
could fall down and cause injuries. The installation site can vary due to on-the-spot surveys conducted by technical
personnel.
Please make full preparations as described in Chapter 2 and observe the following precautions before installing the AP.

Before connecting the power supply, make sure the external power supply matches the power module inside the AP.

Before connecting the power cord, make sure the power switch is in the OFF position.

When connecting a wire to a binding post, make sure their colors are the same.

Make sure the power supply is properly connected.

3.4 Installing the Bracket

1. Put cables, including the grounding cable, the network cable, the optical fiber and RG-Cab-26APPD (optional),
through the bracket.

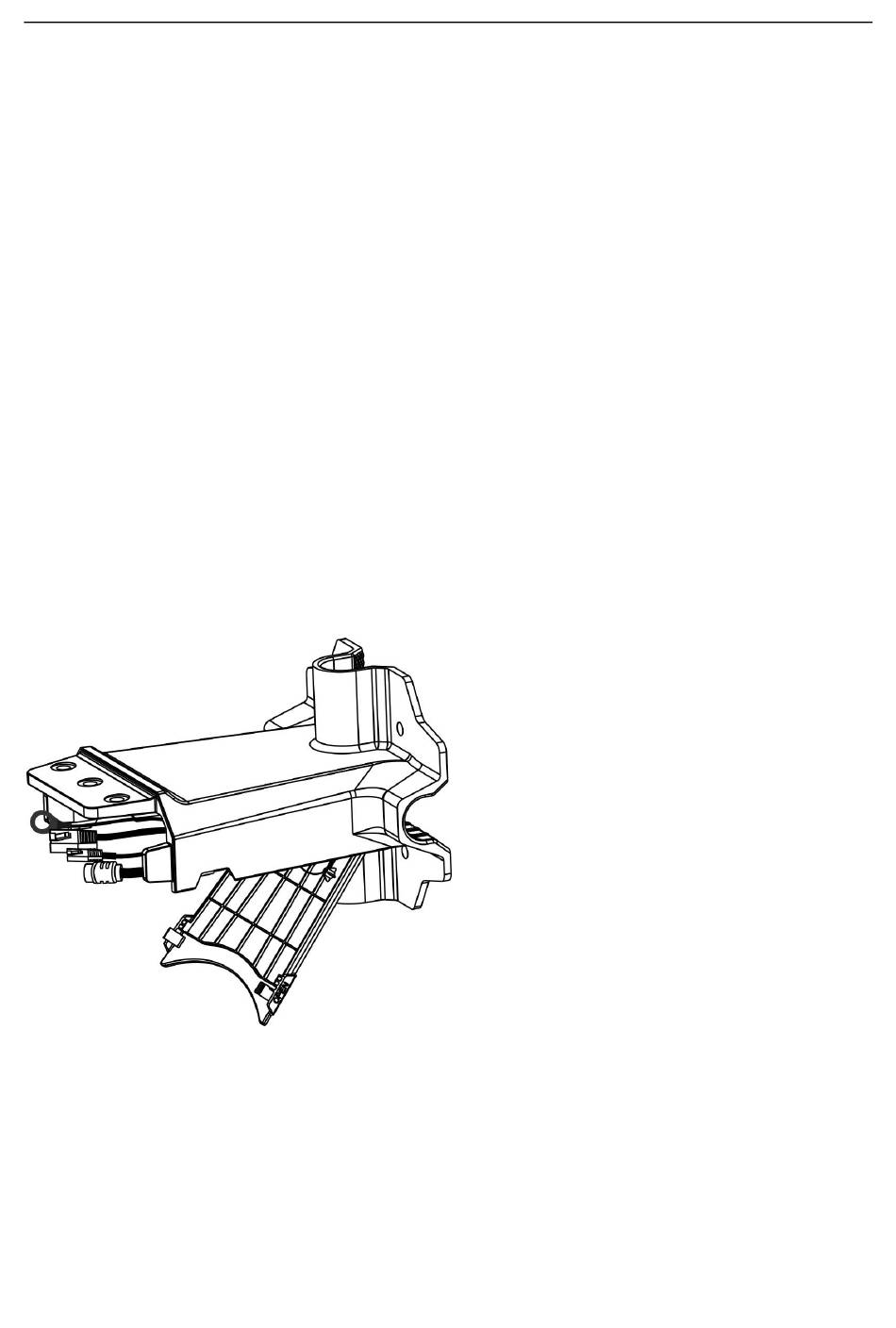

Figure 3-1 Putting Cables through the Bracket

Wall mount
2. Use four M8 x 60 screws to implement the wall mount. (The screws, made of SUS304 stainless steel, are
customer-supplied.)
a. Attach the bracket to the wall and mark the screw hole locations.
b. Align the screw holes on the bracket and those on the wall, and tighten the M8×40 screws to mount the
cable-installed bracket.
Figure 3-2 Mounting the Bracket on Wall
Installing the Access Point
·
·
