Hardware Installation and Reference Guide
3.5 Connecting Cables
Connecting the AP and the Bracket
Use a carabiner to connect the protective chains from the AP and the bracket.

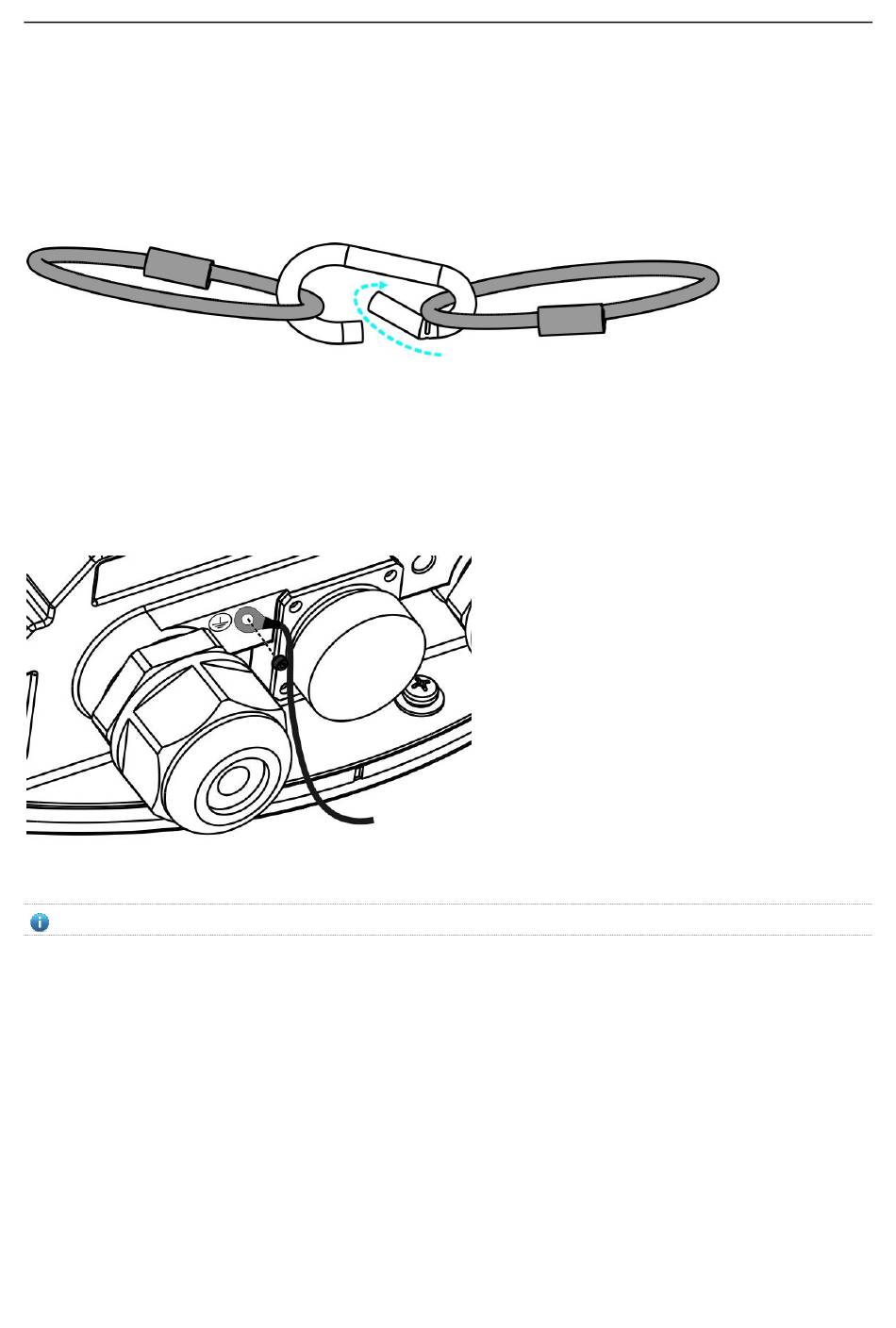

Figure 3-5 Connecting the AP and the Bracket
Connecting the grounding cable
The grounding cable is made on site. Connect the supplied grounding wire (yellow-green) to the AP grounding hole on
one end and ground the wire on the other end through OT terminals. To avoid waste, adjust the cable length for actual
demands.
Figure 3-6 Grounding the AP
Connecting the network cable
Waterproofing material is customer-supplied.
1) Trim the network cable according to the distance between the AP and the power supply. And put the trimmed cable
through the bracket.
2) Thread the cable through liquid-tight adapter and add a plug to the end. See figure 3-6.
Figure 3-7 Threading the Network Cable
Installing the Access Point
·
·
