Appendix F: Pin Definition for Multiport Cable

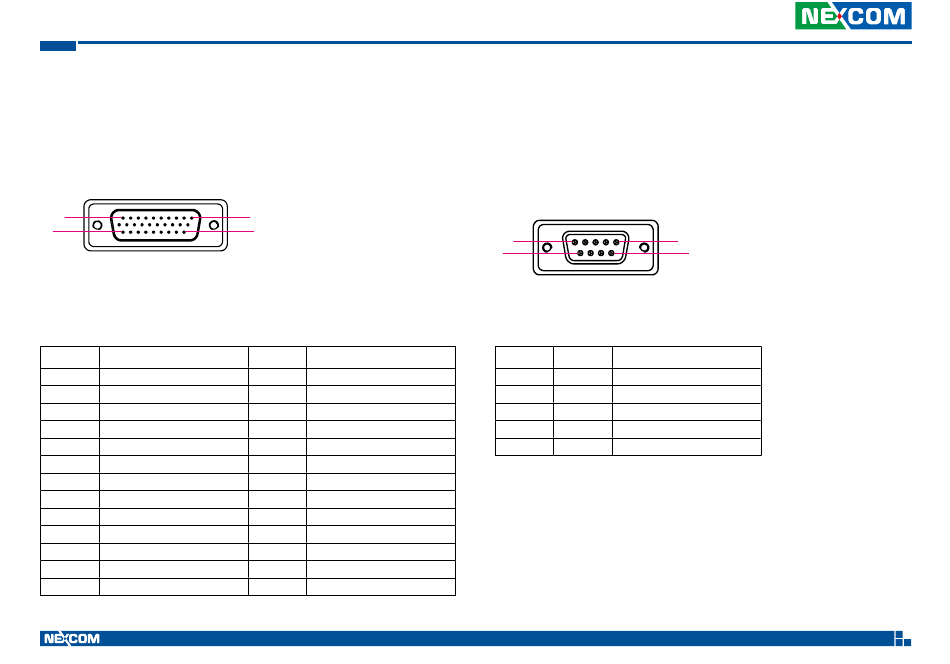

P1 Connector Pinout

1
11
Pin Definition
1 RS485_+
3 GPI2
5 GPI0
7 GPO2
9 GPO0
11 RS422_TX+
13 GND
15 COM_TXD_2
17 CAN_L
19 GND
21 MCU_TXD_3
23 ODOMETER
25 GND
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
9
26
Pin Definition
2 GND
4 GPI1
6 GND
8 GPO1
10 RS485_-
12 RS422_TX-
14 COM_RXD_2
16 GND
18 CAN_H
20 MCU_RXD_3
22 GND
24 DIRECTION
26 12VOUT

P2 to P7 Connector Pinouts

CAN/DR Connector

Connector location: P2
1
6
P1 Pin P2 Pin
17 5
18 3
19 2
23 7
24 6
64
5
9
Definition
CAN_L
CAN_H
GND
ODOMETER
DIRECTION
