Chapter 2: External Connectors Pinout Description

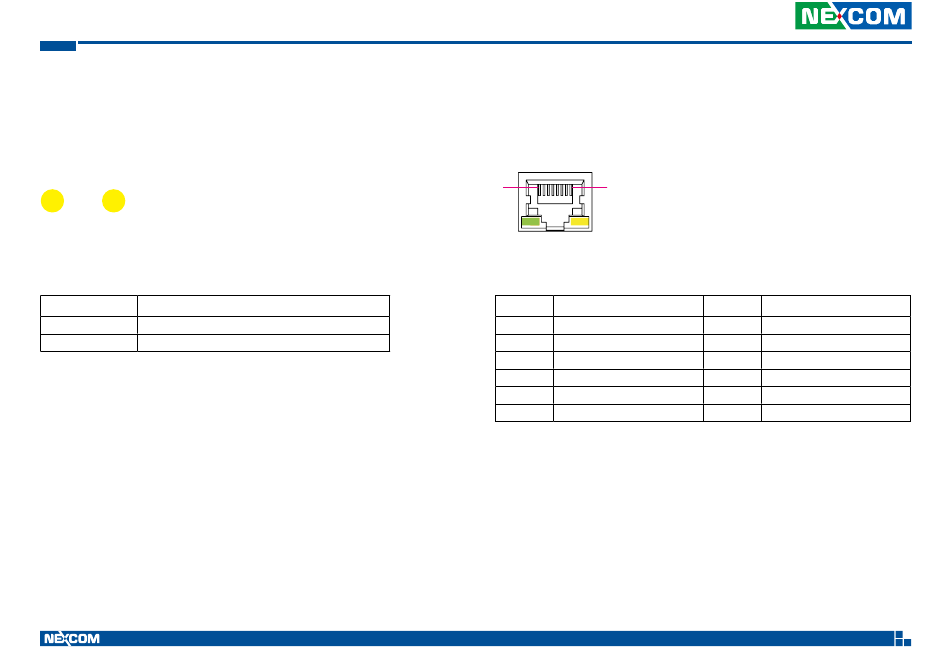

PoE1 and PoE2 LED Indicators

Connector number: 9
PoE1 PoE2
LED
PoE1 Light On: Active
PoE2 Light On: Active
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Description

PoE1 and PoE2 Ports

Connector number: 10
1
8
LINK ACT
Pin Definition
1 MDI0P
3 MDI1P
5 MDI2N
7 MDI3P
9 LED1-
11 LED2-
14
Pin Definition
2 MDI0N
4 MDI2P
6 MDI1N
8 MDI3N
10 LED1+
12 LED2+
