Appendix C: Pin Definition for Multiport Cable

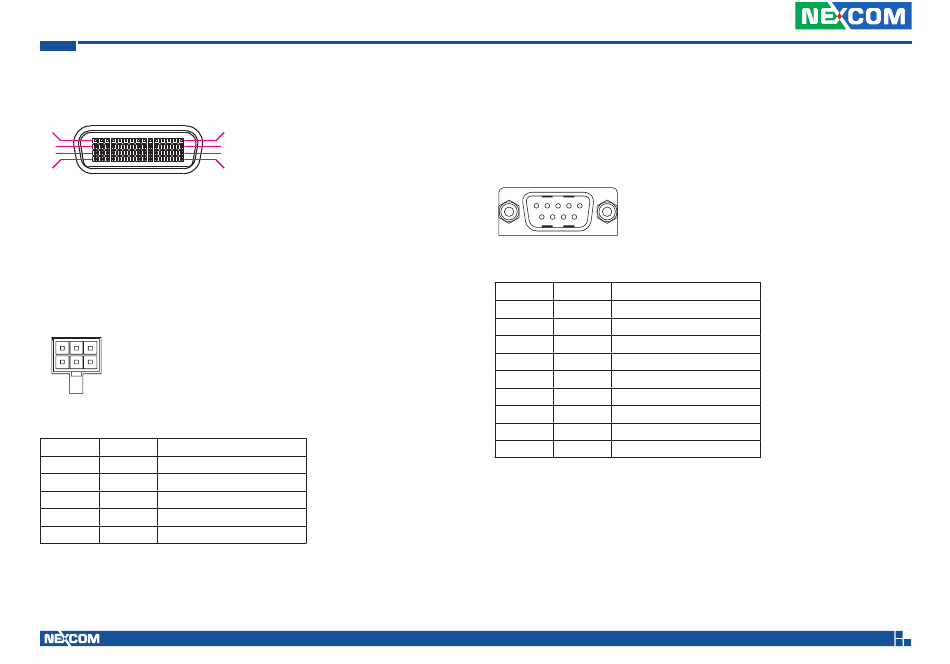

P1 Connector Pinout

1
30
31
60 46

P2 to P17 Connector Pinouts

Power Output Connector

Connector type: 2x3 6-pin header
Connector location: P2
1 3
4 6
P1 Pin P2 Pin Definition
1 2 OUT_12V
30 2 OUT_12V
31 5 GND
60 5 GND
1, 3, 4, 6
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
15
16
45
NC

RS232 Connector

Connector type: DB9, Male
Connector location: P3
1 5
6 9
P1 Pin P3 Pin
29 1
28 2
3 3
2 4
22 5
33 6
58 7
32 8
59 9
56
Definition
SP_DCD_3
SP_RXD_3
SP_TXD_3
SP_DTR_3
ISO_GND
SP_DSR_3
SP_RTS_3
SP_CTS_3
SP_RI_3
